Nyos Pro circular panel downlight 8 inch 13.5-18W  CCT switchable

Product Code: NYOP8IN18-SCT
  • Switchable CCT
  • IP44 when recessed mounted
  • Ultra slim profile
  • Flicker free
  • Optional DALI, 1-10V (0-10V) driver
  • Loop-in & loop-out push wire connector is included
Product Description

Nyos Pro Circular LED Panel is an easy-to-retrofit replacement for downlights with wattage and CCT switchable options. This edge-lit panel is suitable for all areas, including visually demanding non-transient task areas such as offices and educational premises where users require uniform light to maintain well-being.

Product Description

Nyos Pro Circular LED Panel is an easy-to-retrofit replacement for downlights with wattage and CCT switchable options. This edge-lit panel is suitable for all areas, including visually demanding non-transient task areas such as offices and educational premises where users require uniform light to maintain well-being.

Warranty Image

General Specifications

Voltage
220-240Vac 50/60Hz
Ambient Temp (°C)
-20°C to 50°C
IK Rating
IK02
Install Area
Internal
Nominal Life
50,000
IP Rating
IP44
Power Factor
0.95
Max case temp (°C)
75
Class
E
CRI
82

Technical Summary

  • Beam Angle

    100

  • Cut-Out (mm)

    ∅200

  • Default Setting

    18W at 4000K

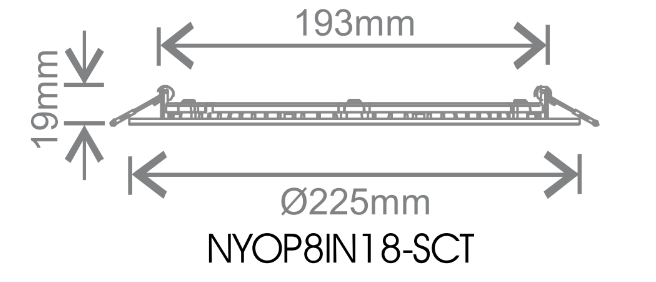

  • Dimensions (mm)

    19x∅225

  • Max input current

    4A/80μs

  • L80B10

    47,000

  • Rated Power (W)

    18

  • Surge protection

    500V

  • Settable Wattage

    13.5W, 18W

  • Settable CCT

    3000k, 4000k, 6000k

  • Efficiency (lm/W)

    125

  • Emergency Luminous Flux (lm)

    400

  • Driver Maximum Power (W)

    16.2

  • Driver Output Voltage (Vdc)

    30-36

  • Dimmable

    N
