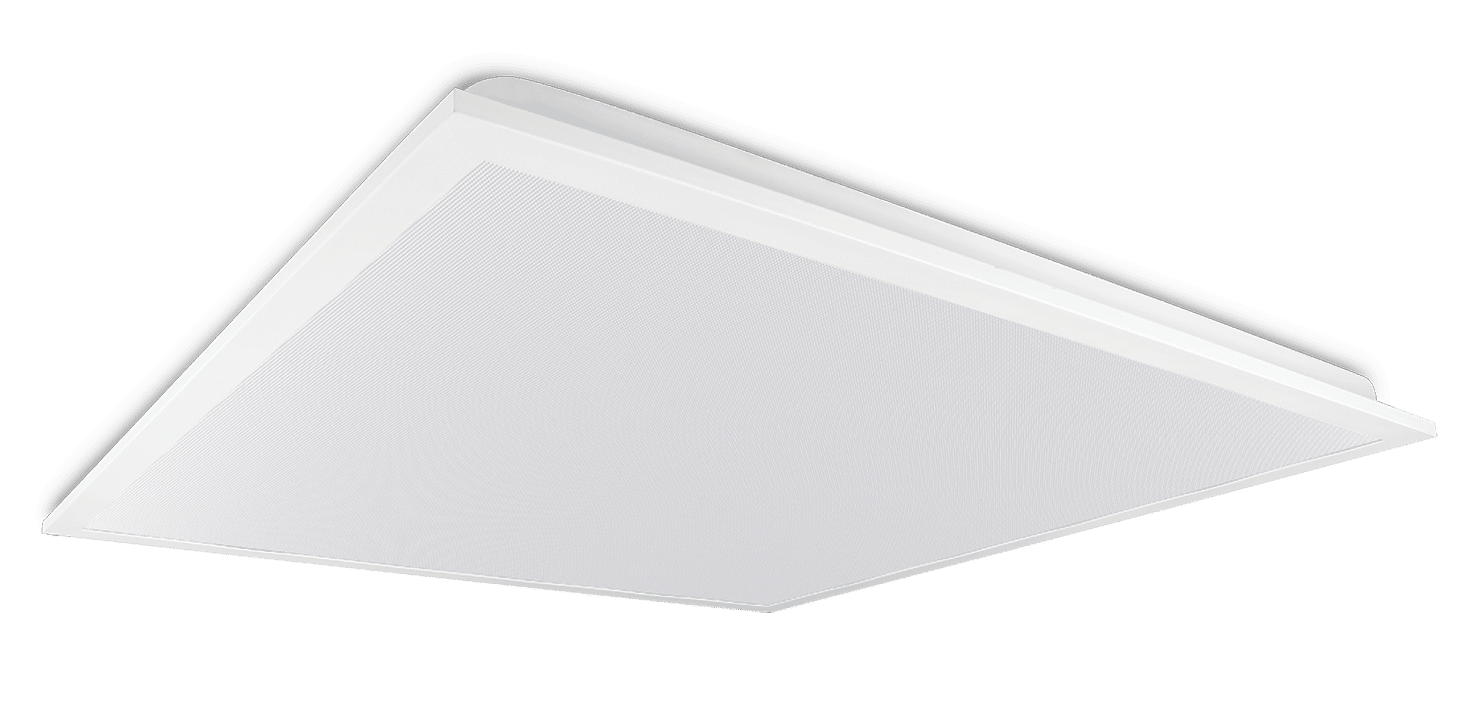

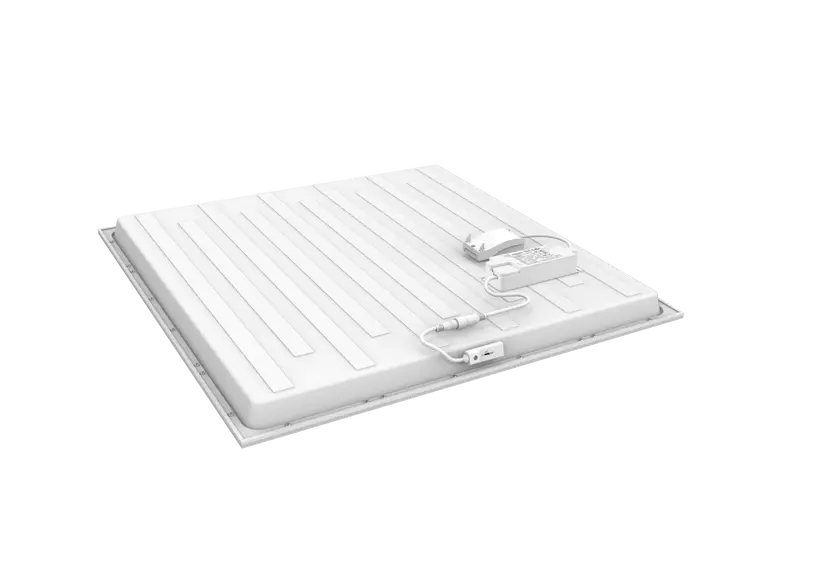

Alden 4 Pro

Name: Alden 4 Pro
SKU: ALDP436-SCT
Availability: InStock

Alden 4 Pro LED panels offer direct backlit lighting with wide-angle optics to achieve even light distribution across the surface of the luminaire and is an easy-to-retrofit replacement for in-lay ceiling tile fittings. CCT & Wattage switchable and supplied with polycarbonate or polystyrene diffusers and flicker-free drivers as standard.

Product Code: ALDP436-SCT

Old Product Code: ALSP336-SCT

Data Sheet

Installation Area

Surge Capacity

Dimensions

Driver Maximum Power

Wattage

Settable CCT

Lumens

Driver Output Current

Built-in Option

CCT

Input Voltage Supply

Driver Input Voltage

Colour / Finish

Ambient Temperature Range

Mounting Option

IK Rating

L80B10 Lifetime

L70B50 Lifetime

IP Rating

Power Factor

Protection Rating

Driver Protection Rating

LS CRI

SDCM

Default Setting

Driver Dimensions

Maximum Current Draw

Efficiency (lm/W)

Emergency Luminous Flux

Driver Output Voltage

Energy Class

Clear

KEY FEATURES

High efficiency up to 150lm/W
Switchable wattage and CCT (3000/4000/6500K)
TP(a) rated diffuser for enhanced fire safety
DALI, 1-10V (0-10V) and Push dimming alternative driver available
IP65 when ceiling recess mounted
Visual comfort flicher-free technology with short term flicker perceptibility (Pst) Being measured at 0
UGR<17
Optional anti-glare diffusers available
SDCM<3

GENERAL SPECIFICATIONS

Voltage:220-240Vac 50/60Hz

Driver Voltage:220-240Vac 50/60Hz

Ambient Temp:-20°C to 50°C

IK Rating:IK04

Installation Area:Internal

L80B10 Lifetime:111,000 h

L70B50 Lifetime:176,000 h

IP Rating:IP65

Power Factor:0.95

Protection Rating:Class II, Class III

Driver Protection Rating:Class II

LS CRI:82

SDCM:<3

Surge Capacity:1000V

TECHNICAL SUMMARY

Default Setting:4000K at 36W, 4000K at 42W

Dimensions:1195x595x36, 595x595x36

Driver Dimensions:155x55x28

Max Input Current:165 mA, 206 mA

Driver Max. power:36 W, 42 W

Settable CCT:3000k, 4000k, 6500k

CCT:3000K, 4000K, 6500K

Efficiency (lm/W):142 lm/W, 153 lm/W

Emergency Luminous Flux (lm):500 lm

Lumen:5,220 lm, 5,880 lm

Driver Output Current:650, 750, 850, 950, 750, 850, 950, 1050

Driver Output Voltage:30-42

Energy Class:C, D
