Arno

Name: Arno
SKU: ARN2FS12-W40
Availability: InStock

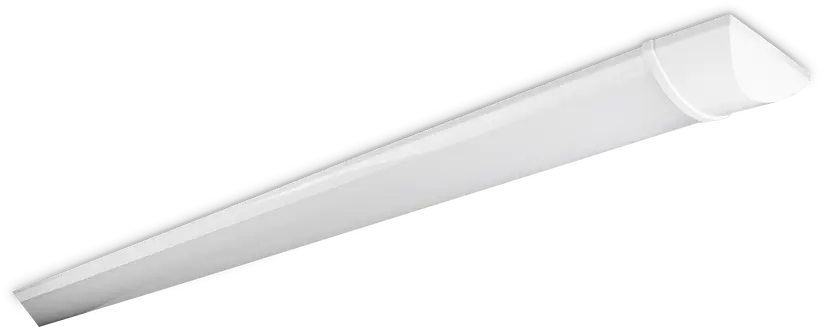

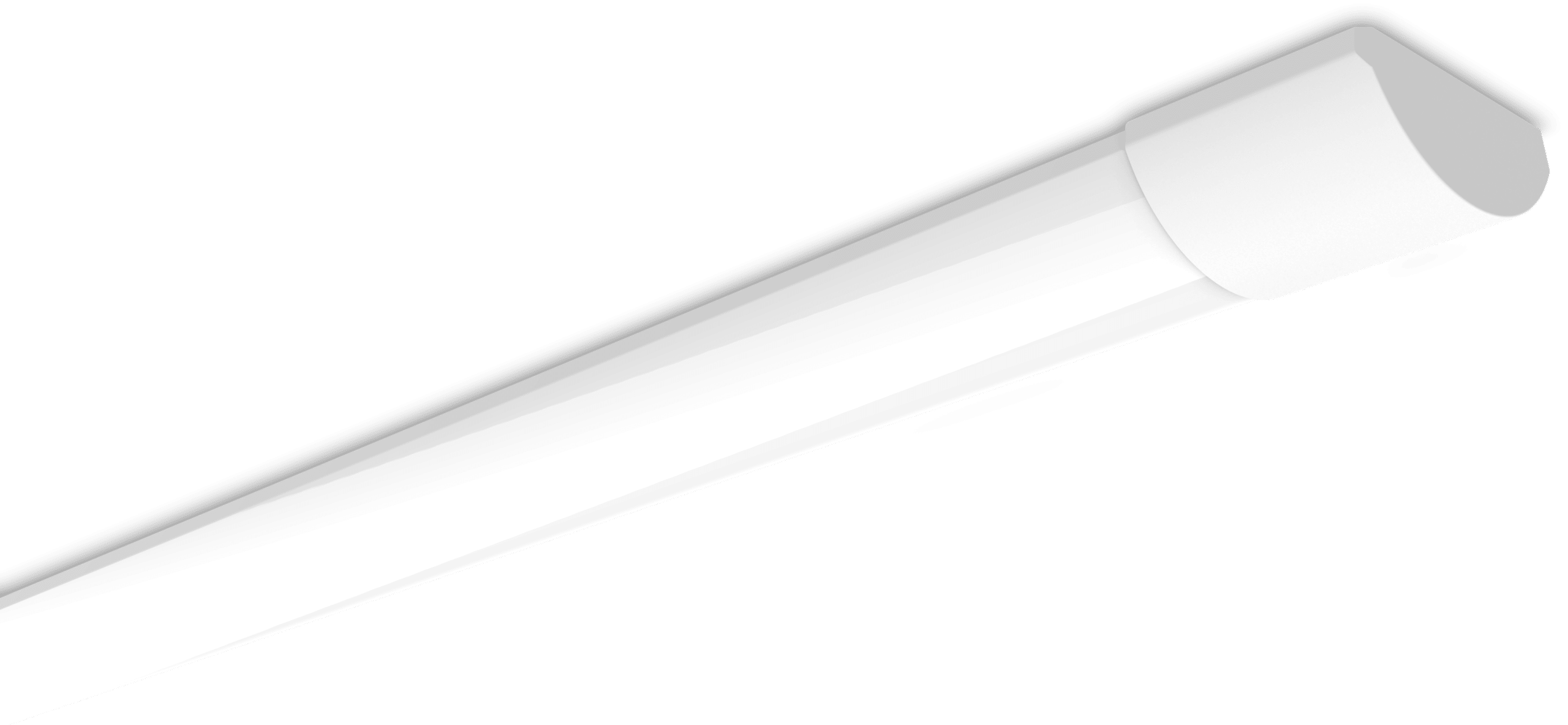

The Kosnic Arno Slimline Integrated Battens utilize high performance LEDs to offer outstanding lumen efficiency within a very economic package. The battens are a low-profile design suitable for a wide range of general lighting applications from commercial premises to warehouses, factories and garages.

Product Code: ARN2FS12-W40

Old Product Code: KBTN12LS5-W40

Data Sheet LDT File

Installation Area

Dimensions

Built-in Option

Wattage

Lumens

CCT

Input Voltage Supply

Ambient Temperature Range

IK Rating

Colour / Finish

L80B10 Lifetime

L70B50 Lifetime

Length

IP Rating

Power Factor

Protection Rating

LS CRI

Maximum Current Draw

Rated Power

Efficiency (lm/W)

Energy Class

Clear

KEY FEATURES

High efficiency of 110lm/W
2 ranges for replacement of single and twin T8 battens
Supplied with long lead of 2/3 length of the luminaire

GENERAL SPECIFICATIONS

Voltage:220-240Vac 50/60Hz

Ambient Temp:-20°C to 50°C

IK Rating:IK04

Installation Area:Internal

L80B10 Lifetime:50,000 h

L70B50 Lifetime:60,000 h

IP Rating:IP20

Power Factor:>0.94, 0.92

Protection Rating:Class II

LS CRI:≥82

TECHNICAL SUMMARY

Dimensions:1245x75x31, 1545x75x31, 1845x75x31, 645x75x31

Max Input Current:146 mA, 206 mA, 220 mA, 275 mA, 57 mA, 82 mA

Rated Power (W):12 W, 18 W, 32 W, 45 W, 48 W, 60 W

CCT:4,000K, 6,500K

Efficiency (lm/W):110 lm/W

Lumen:1,320 lm, 1,980 lm, 3,520 lm, 4,950 lm, 5,280 lm, 6,600 lm

Energy Class:E
