Arno 2

Name: Arno 2
SKU: ARN22F18-SCT
Availability: InStock

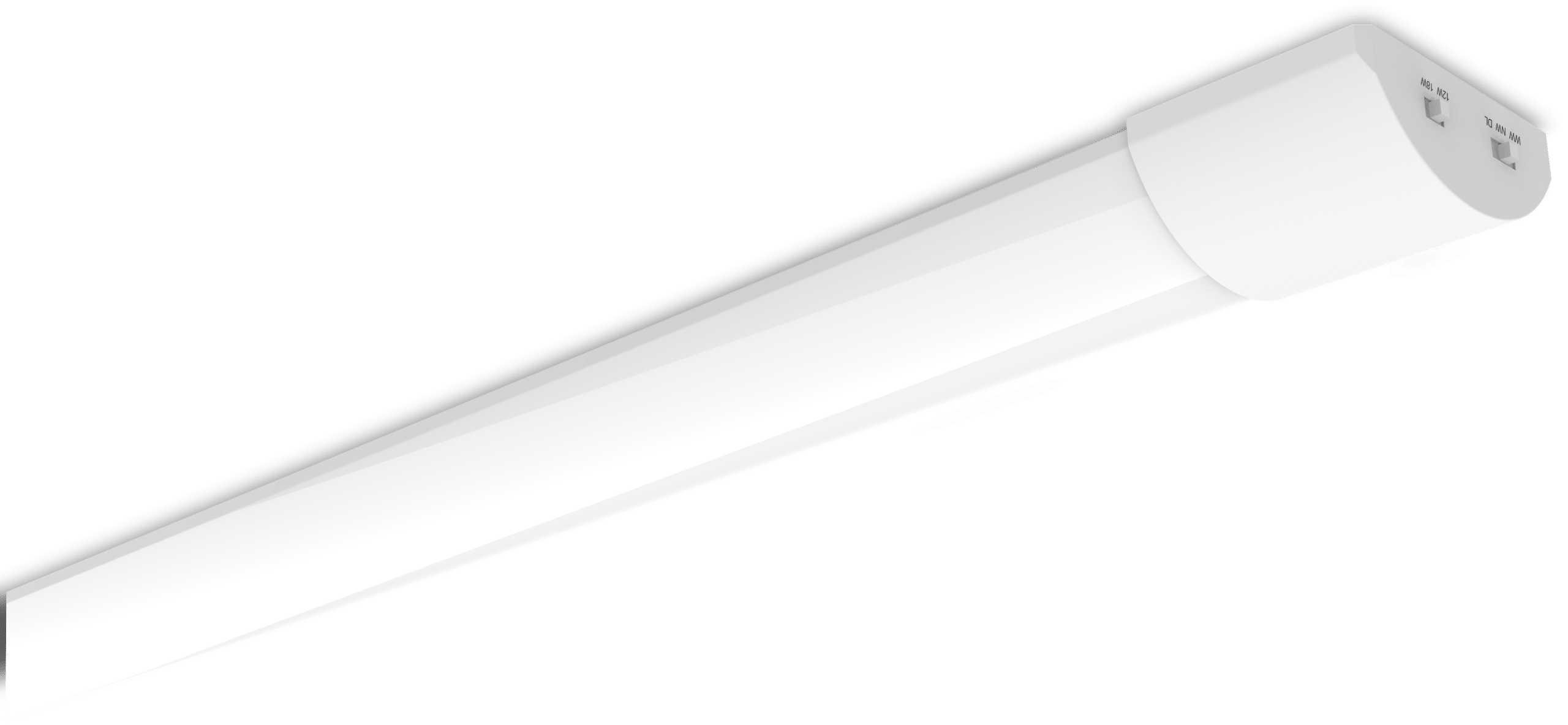

The Kosnic Arno Slimline Integrated Battens utilize high performance LEDs to offer outstanding lumen efficiency within a very economic package. The battens are a low-profile design suitable for a wide range of general lighting applications from commercial premises to warehouses, factories and garages.

Product Code: ARN22F18-SCT

Data Sheet

Installation Area

Dimensions

Driver Maximum Power

Wattage

Settable CCT

Lumens

Driver Output Current

Built-in Option

CCT

Input Voltage Supply

Driver Input Voltage

Colour / Finish

Ambient Temperature Range

Length

IK Rating

L80B10 Lifetime

L70B50 Lifetime

IP Rating

Power Factor

Protection Rating

LS CRI

SDCM

Default Setting

Driver Dimensions

Maximum Current Draw

Efficiency (lm/W)

Driver Output Voltage

Energy Class

Clear

KEY FEATURES

High efficiency up to 143lm/W
Switchable wattage and CCT (3000/4000/6000K)
Supplied with long lead of 2/3 length of the luminaire

GENERAL SPECIFICATIONS

Voltage:220-240Vac 50/60Hz

Driver Voltage:220-240 Vac 50/60 Hz

Ambient Temp:-20°C to 50°C

IK Rating:IK04

Installation Area:Internal

L80B10 Lifetime:91,000 h

L70B50 Lifetime:144,000 h

IP Rating:IP20

Power Factor:0.95

Protection Rating:Class II

LS CRI:82

SDCM:<3

TECHNICAL SUMMARY

Default Setting:4000K at 18W, 4000K at 45W, 4000K at 50W

Dimensions:1550x75x31, 1850x75x31, 650x75x31

Driver Dimensions:52x68x12

Max Input Current:206 mA, 229 mA, 82 mA

Driver Max. power:18 W, 45 W, 50 W

Settable CCT:3000k, 4000k, 6000k

CCT:3000K, 4000K, 6000K

Efficiency (lm/W):142 lm/W, 143 lm/W

Lumen:2,520 lm, 6,050 lm, 6,950 lm

Driver Output Current:150(35W), 195 (45W), 165 (40W), 210 (50W), 70 (12W), 110 (18W)

Driver Output Voltage:140-150, 210-220

Energy Class:C, D
