Arno Pro

Name: Arno Pro
SKU: ARNP4F32-SCT
Availability: InStock

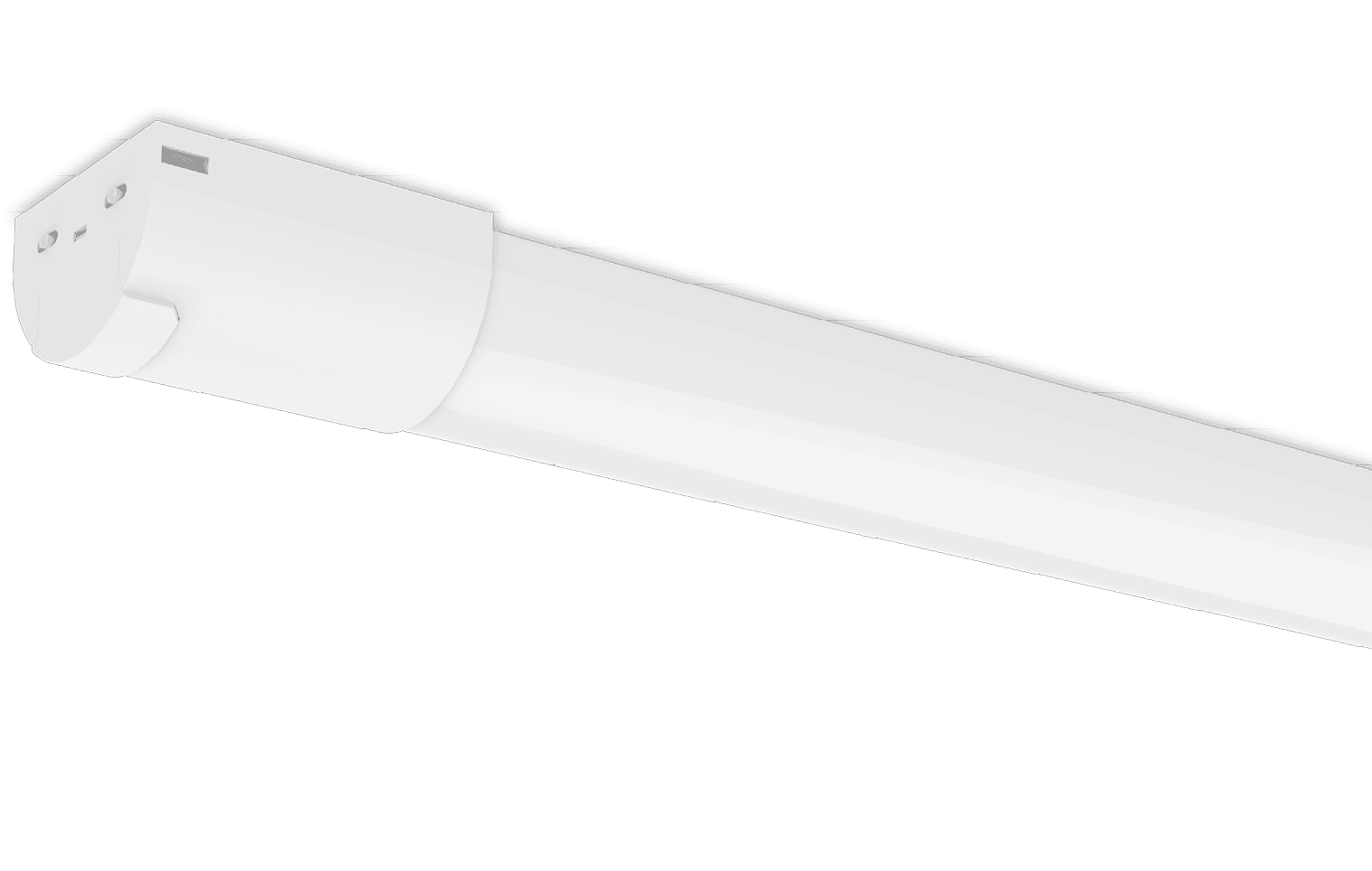

The Kosnic Arno Pro Integrated Battens utilise high performance LEDs to offer outstanding lumen efficiency within a very economic package. The battens are a low-profile design suitable for a wide range of general lighting applications from commercial premises to warehouses, factories and garages.

Product Code: ARNP4F32-SCT

Data Sheet LDT File

Installation Area

Dimensions

Wattage

Settable CCT

Lumens

Built-in Option

CCT

Input Voltage Supply

Ambient Temperature Range

Colour / Finish

IK Rating

L80B10 Lifetime

Length

L70B50 Lifetime

IP Rating

Power Factor

Protection Rating

LS CRI

Default Setting

Maximum Current Draw

Efficiency (lm/W)

Energy Class

Clear

KEY FEATURES

High efficiency of 120lm/W
Switchable CCT (3000K/4000K/6000K)
2 switchable wattage
Easy installation with surface mounting clips

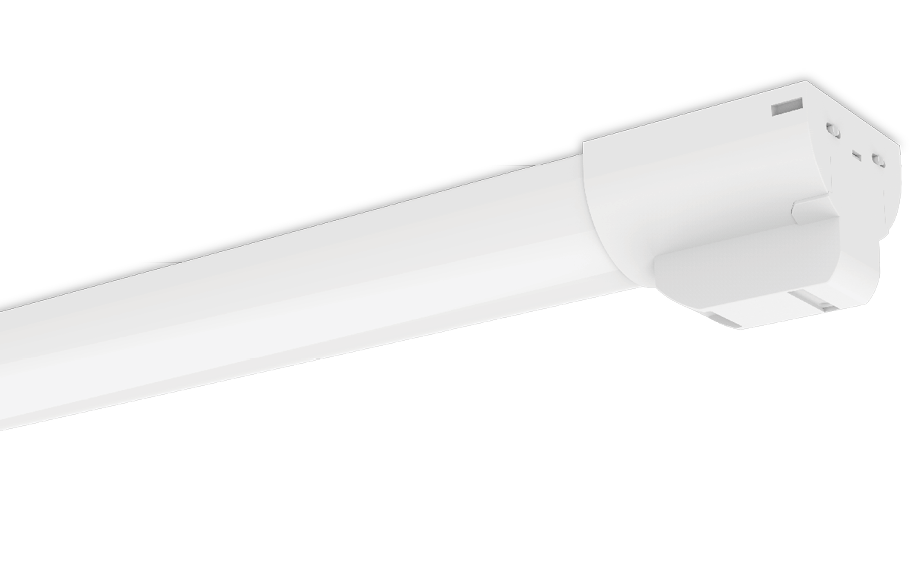

Plug-in motion sensor
BESA box fitting points

GENERAL SPECIFICATIONS

Voltage:220-240Vac 50/60Hz

Ambient Temp:-20°C to 50°C

IK Rating:IK08

Installation Area:Internal

L80B10 Lifetime:54,000 h

L70B50 Lifetime:54,000 h

IP Rating:IP20

Power Factor:>0.94

Protection Rating:Class II

LS CRI:≥82

TECHNICAL SUMMARY

Default Setting:4000K at 18W, 4000K at 36W, 4000K at 45W

Dimensions:1224x71x46, 1524x71x46, 1789x71x46

Max Input Current:146 mA, 220 mA, 275 mA

Settable CCT:3000k, 4000k, 6000k

CCT:3000K, 4000K, 6000K

Efficiency (lm/W):120 lm/W

Lumen:4,300 lm, 6,300 lm, 7,800 lm

Energy Class:D
