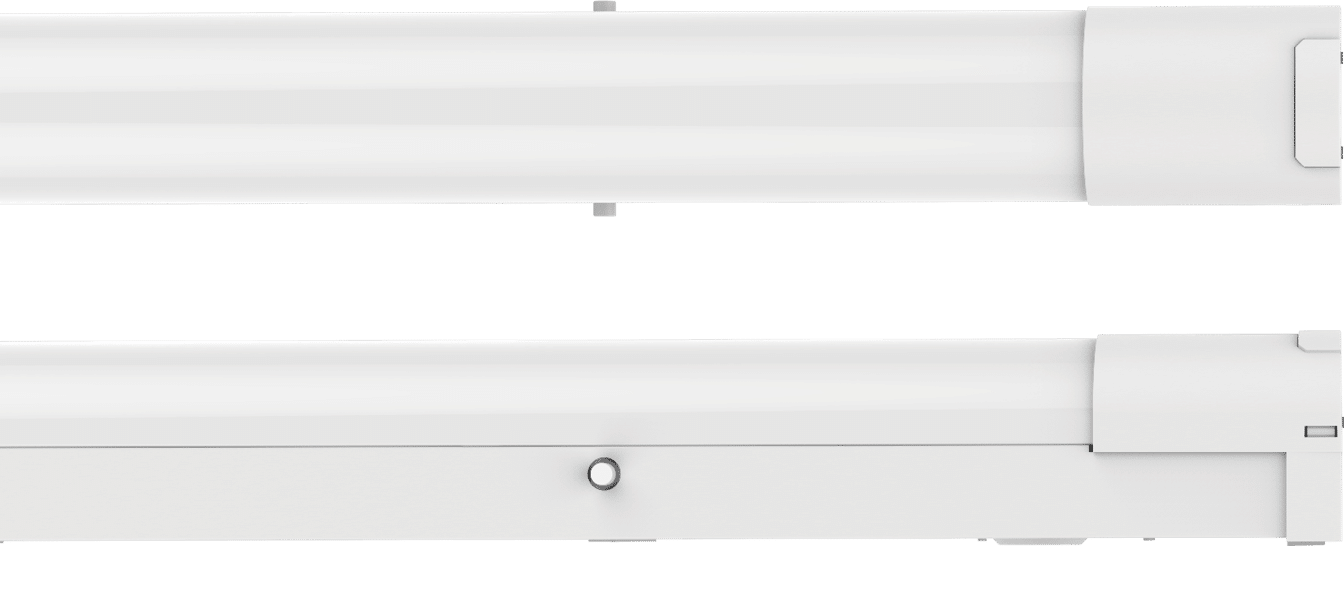

Arno Retro

Name: Arno Retro
SKU: ARNT4F32-SCT
Availability: InStock

The Kosnic Arno Retro-fit integrated Battens utilise high performance LEDs to offer outstanding lumen efficiency within a very economic package. The battens are a low-profile design suitable for a wide range of general lighting applications from commercial premises to warehouses, factories and garages.

Product Code: ARNT4F32-SCT

Data Sheet

Installation Area

Dimensions

Wattage

Settable CCT

Lumens

Built-in Option

CCT

Input Voltage Supply

Ambient Temperature Range

Colour / Finish

IK Rating

L80B10 Lifetime

Length

L70B50 Lifetime

IP Rating

Power Factor

Protection Rating

LS CRI

Default Setting

Maximum Current Draw

Efficiency (lm/W)

Emergency Luminous Flux

Energy Class

Clear

KEY FEATURES

Sheet metal base box that retrofits the traditional T8 battens
20mm conduit entry and BESA box fitting points
Option of base with emergency module
High efficiency of 120lm/W
Switchable CCT (3000K/4000K/6000K)
2 switchable wattage
Easy installation with surface mounting clips.
Plug-in motion sensor
Flicker free

GENERAL SPECIFICATIONS

Voltage:220-240Vac 50/60Hz

Ambient Temp:-20°C to 50°C

IK Rating:IK08

Installation Area:Internal

L80B10 Lifetime:54,000 h

L70B50 Lifetime:54,000 h

IP Rating:IP20

Power Factor:>0.94

Protection Rating:Class I

LS CRI:≥82

TECHNICAL SUMMARY

Default Setting:4000K at 18W, 4000K at 45W

Dimensions:1224x71x79, 1789x71x79

Max Input Current:146 mA, 275 mA

Settable CCT:3000k, 4000k, 6000k

CCT:3000K, 4000K, 6000K

Efficiency (lm/W):142 lm/W, 144 lm/W

Emergency Luminous Flux (lm):300 lm

Lumen:4,300 lm, 7,800 lm

Energy Class:D
