Arreo

Name: Arreo
SKU: ARR30-W40
Availability: InStock

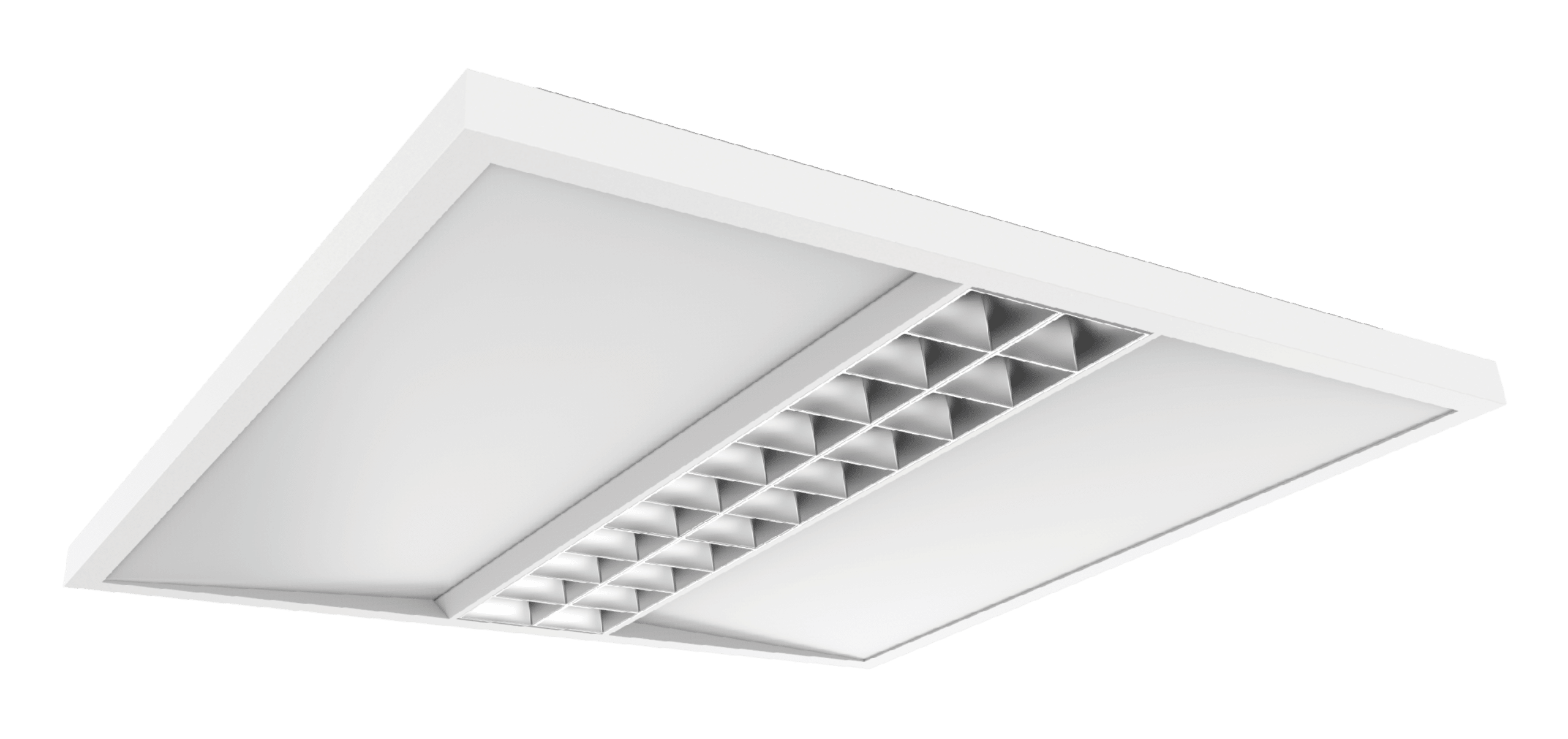

The Arreo is our stylish and elegant direct / indirect modular luminaire with flicker free technology to ensure complete visual comfort. It is wattage switchable allows you to choose their desired settings and you are to customise your panel further by adding in one of our many optional plug-in gears.

Product Code: ARR30-W40

Data Sheet

Installation Area

Dimensions

Driver Maximum Power

Wattage

Lumens

Driver Output Current

Built-in Option

Beam Angle

CCT

Input Voltage Supply

Driver Input Voltage

Ambient Temperature Range

Colour / Finish

IK Rating

L80B10 Lifetime

L70B50 Lifetime

IP Rating

Power Factor

Protection Rating

LS CRI

SDCM

Surge Capacity

Default Setting

Driver Dimensions

Maximum Current Draw

Efficiency (lm/W)

Emergency Luminous Flux

Driver Output Voltage

Energy Class

Clear

KEY FEATURES

High efficiency of 135lm/W
Stylish & elegant aesthetic appearance
UGR<15*
DALI, 0-10V and PUSH dimming alternative driver available
Optional plug-in emergency modules, available in standard, self-test and DALI
Visual comfort flicker-free technology with short term flicker perceptibility (Pst) being measured at 0
SDCM<3

GENERAL SPECIFICATIONS

Voltage:220-240Vac 50/60Hz

Driver Voltage:220-240Vac 50/60 Hz

Ambient Temp:-20°C to 50°C

IK Rating:IK02

Installation Area:Internal

L80B10 Lifetime:86,000 h

L70B50 Lifetime:136,000 h

IP Rating:IP20

Power Factor:0.95

Protection Rating:Class III

LS CRI:82

SDCM:<3

Surge Capacity:1000V

TECHNICAL SUMMARY

Default Setting:30W

Dimensions:595x595x52

Driver Dimensions:155 x 55 x 28

Max Input Current:165 mA

Driver Max. power:40 W

CCT:4,000K

Efficiency (lm/W):135 lm/W

Emergency Luminous Flux (lm):410 lm

Lumen:4,680 lm

Driver Output Current:650-950

Driver Output Voltage:30-42

Beam Angle:80

Energy Class:C
