Avon 4

Name: Avon 4
SKU: AVO44FS18-W40
Availability: InStock

The Kosnic Avon 4 LED non-corrosive battens utilise high performance LEDs to offer outstanding lumen efficiency and are suitable for a wide range of commercial applications including warehouses, factories and garages. The product range has optional microwave sensor and emergency options.

Product Code: AVO44FS18-W40

Old Product Code: KENCC10-18S4F-W40, AVO4FS18-W40

Data Sheet LDT File

Installation Area

Dimensions

Wattage

Built-in Option

Lumens

CCT

Input Voltage Supply

Ambient Temperature Range

IK Rating

Colour / Finish

L80B10 Lifetime

L70B50 Lifetime

Length

IP Rating

Power Factor

Protection Rating

LS CRI

SDCM

Default Setting

Maximum Current Draw

Efficiency (lm/W)

Maintained Luminous Flux

Detection radius

Detection Angle

Energy Class

Clear

KEY FEATURES

T8 non-corrosive LED replacement
IP65 and vandal resistant
Optional emergency module
Optional built-in ON/OFF microwave sensor
Opal diffuser
20mm conduit entry

GENERAL SPECIFICATIONS

Voltage:220-240Vac 50/60Hz

Ambient Temp:-20°C to 50°C

IK Rating:IK08

Installation Area:Internal and External

L80B10 Lifetime:139,000 h

L70B50 Lifetime:217,000 h

IP Rating:IP65

Power Factor:0.9, 0.90

Protection Rating:Class I

LS CRI:82

SDCM:<6

TECHNICAL SUMMARY

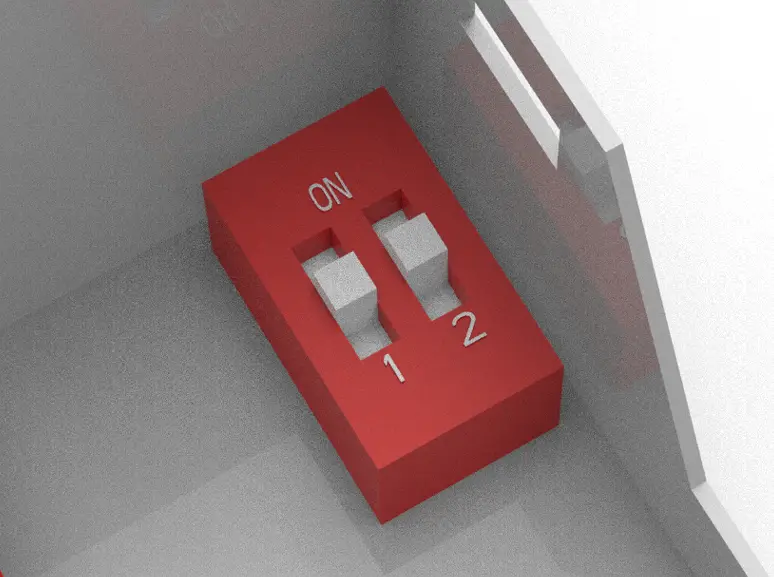

Default Setting:18W, 36W, 39W, 52W

Dimensions:1200x116x80, 1200x91x78, 1500x116x80, 1836x80x76

Max Input Current:174 mA, 256 mA, 290 mA, 87 mA

CCT:4,000K

Efficiency (lm/W):134 lm/W, 135 lm/W, 139 lm/W, 143 lm/W

Emergency Luminous Flux (lm):350 lm

Lumen:2,340 lm, 4,800 lm, 7,000 lm, 7,750 lm

Detection Radius:7 m

Detection Angle:150° wall mounting, 360° ceiling mounting

Energy Class:D
