Codale 2

Name: Codale 2
SKU: COD27-W40
Availability: InStock

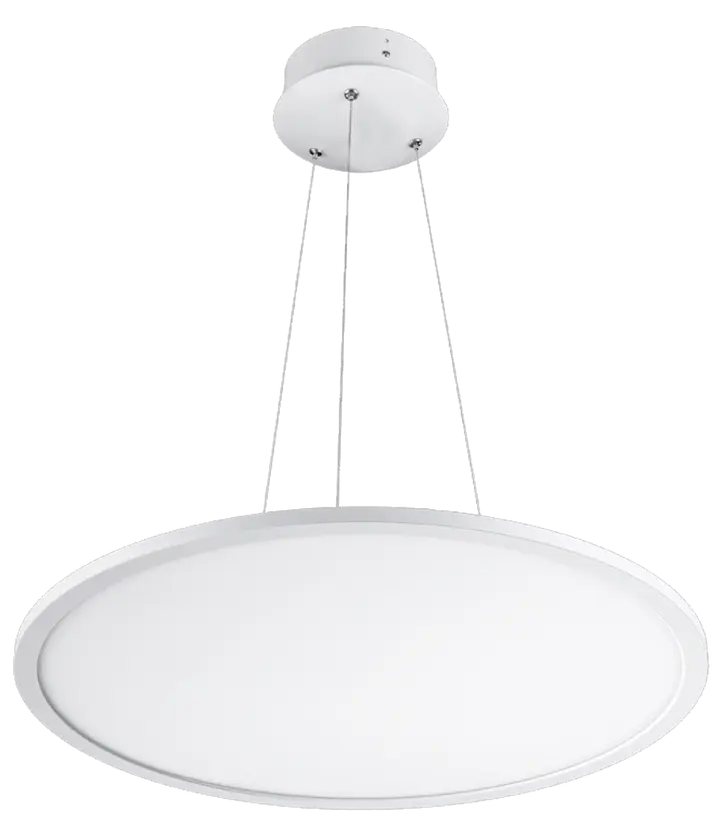

The Codale LED Circular Surface or Pendant panel is a low maintenance lighting for all areas, including visually demanding non-transient task areas such as offices and educational premises where users require uniform light. It can be surface or suspended mounting. Sensor options and emergency module available.

Product Code: COD27-W40

Data Sheet LDT File

Installation Area

Dimensions

Built-in Option

Wattage

Lumens

CCT

Input Voltage Supply

Ambient Temperature Range

IK Rating

Colour / Finish

L80B10 Lifetime

L70B50 Lifetime

Mounting Option

IP Rating

Power Factor

Protection Rating

LS CRI

SDCM

Maximum Current Draw

Rated Power

Efficiency (lm/W)

Emergency Luminous Flux

Energy Class

Clear

KEY FEATURES

Choices of 500mm, 600mm diameter
Emergency and microwave sensor options
Surface or suspension mounting
Flicker free
DALI, 1-10V (0-10V) and PUSH dimming alternative driver available
Optional plug-in emergency module, available in standard and self-test
Optional built-in microwave sensor

GENERAL SPECIFICATIONS

Voltage:220-240Vac 50/60Hz

Ambient Temp:-20°C to 50°C

IK Rating:IK04

Installation Area:Internal

L80B10 Lifetime:50,000 h

L70B50 Lifetime:60,000 h

IP Rating:IP20

Power Factor:0.95

Protection Rating:Class I

LS CRI:82

SDCM:<6

TECHNICAL SUMMARY

Dimensions:70x∅492, 70x∅592

Max Input Current:124 mA, 165 mA

Rated Power (W):27 W, 36 W

CCT:4,000K

Efficiency (lm/W):100 lm/W

Emergency Luminous Flux (lm):200 lm

Lumen:2,700 lm, 3,600 lm

Energy Class:F
