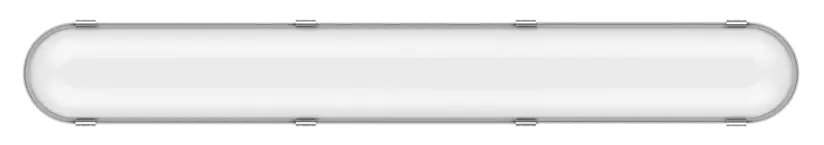

Congo 2

Name: Congo 2
SKU: CON24FT36-SCT
Availability: InStock

The Congo non-corrosive battens offers outstanding lumen efficiency and have a switchable colour temperature. The battens are suitable for a wide range of commercial applications including warehouses, factories and garages. Optional emergency module and a microwave motion sensor available.

Product Code: CON24FT36-SCT

Old Product Code: CON4FT36-SCT

Data Sheet LDT File

Installation Area

Dimensions

Settable CCT

Built-in Option

Lumens

Wattage

CCT

Input Voltage Supply

Ambient Temperature Range

Colour / Finish

IK Rating

L80B10 Lifetime

Length

L70B50 Lifetime

IP Rating

Power Factor

Protection Rating

LS CRI

SDCM

Default Setting

Maximum Current Draw

Rated Power

Efficiency (lm/W)

Maintained Luminous Flux

Energy Class

Clear

KEY FEATURES

T8 non-corrosive LED replacement
Switchable CCT (3000/4000/6000K)
Optional emergency module
Optional microwave motion and daylight sensor with corridor dimming
Durable and rugged IK10 polycarbonate construction
DALI 2, 1-10V (0-10V) & PUSH button option available
Suitable for through-wiring
Opal diffuser

GENERAL SPECIFICATIONS

Voltage:220-240Vac 50/60Hz

Ambient Temp:-20°C to 50°C

IK Rating:IK10

Installation Area:Internal and External

L80B10 Lifetime:54,000 h

L70B50 Lifetime:54,000 h

IP Rating:IP65

Power Factor:0.94

Protection Rating:Class I

LS CRI:82

SDCM:<6

TECHNICAL SUMMARY

Default Setting:4000K

Dimensions:1200x127x89, 1500x97x81

Max Input Current:167 mA

Rated Power (W):36 W

Settable CCT:3000k, 4000k, 6000k

CCT:3000K, 4000K, 6000K

Efficiency (lm/W):121 lm/W

Emergency Luminous Flux (lm):300 lm

Lumen:4,350 lm

Energy Class:D
