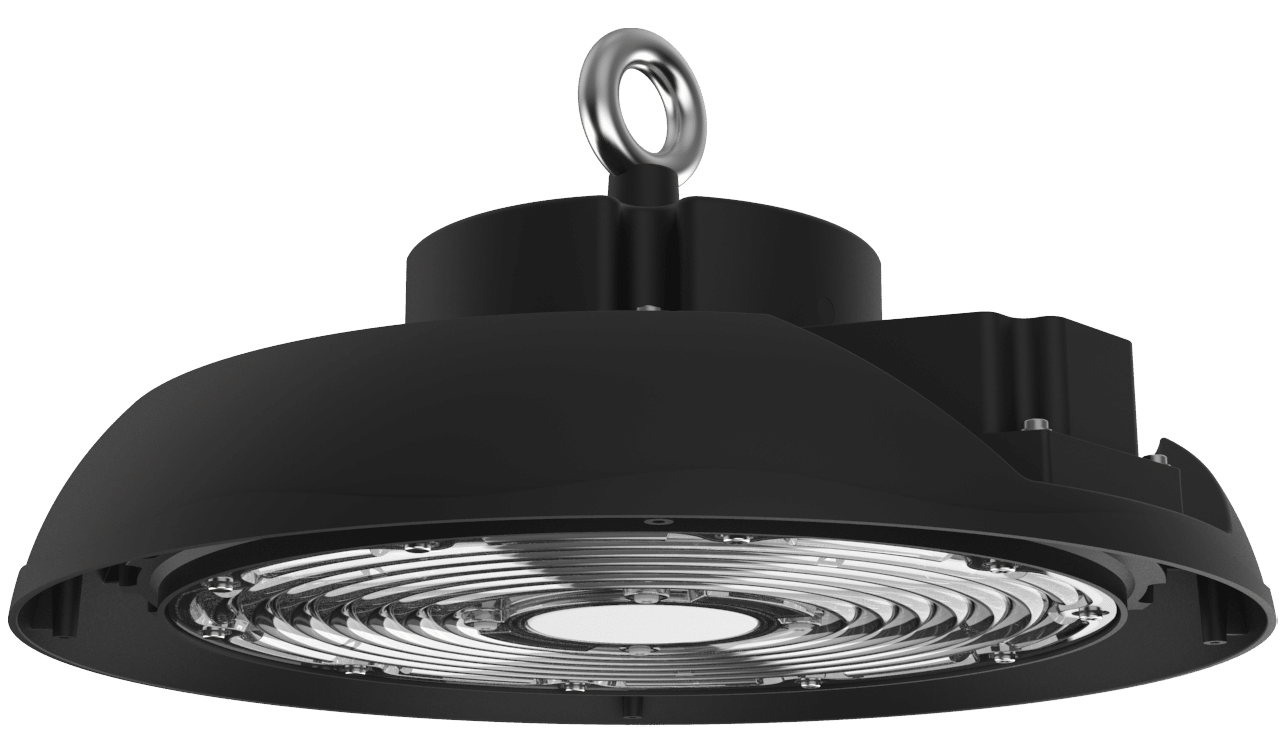

Echo 3

Name: Echo 3
SKU: ECH3100-W50
Availability: InStock

The Echo 3 provides a high efficiency of 145lm/W or a range of wattage options and 1-10v dimming for further control. The IP65 rating and range of shades means the Echo III is suited for a range of areas both internal and external, with optional emergency gear if needed.

Product Code: ECH3100-W50

Data Sheet LDT File

Installation Area

Dimensions

Wattage

Lumens

Built-in Option

CCT

Beam Angle

Input Voltage Supply

Ambient Temperature Range

Colour / Finish

IK Rating

L80B10 Lifetime

Mounting Option

L70B50 Lifetime

IP Rating

Power Factor

Protection Rating

LS CRI

SDCM

Default Setting

Maximum Current Draw

Rated Power

Efficiency (lm/W)

Emergency Luminous Flux

Energy Class

Clear

KEY FEATURES

High efficiency of 145lm/W
Dimmable via a wired 1-10v dimmer switch
Diecast aluminium
IP65 & vandal resistant (IK10)
Optional reflectors on all models
Flicker free

GENERAL SPECIFICATIONS

Voltage:100-240Vac 50/60Hz, 220-240Vac 50/60Hz

Ambient Temp:-20°C to 50°C

IK Rating:IK10

Installation Area:Internal and External

L80B10 Lifetime:54,000 h, 87,000 h

L70B50 Lifetime:138,000 h, 54,000 h

IP Rating:IP65

Power Factor:0.96, 0.98

Protection Rating:Class I

LS CRI:≥82, 82

SDCM:<6

TECHNICAL SUMMARY

Default Setting:5000K at 100W, 5000K at 150W, 5000K at 200W

Dimensions:164x∅259, 164x∅298

Max Input Current:450 mA, 890 mA

Rated Power (W):100 W, 200 W

CCT:5,000K

Efficiency (lm/W):150 lm/W

Emergency Luminous Flux (lm):900 lm

Lumen:15,000 lm, 22,500 lm, 30,000 lm

Beam Angle:90°

Energy Class:D
