Ely

Name: Ely
SKU: ELY06-F40-BLK
Availability: InStock

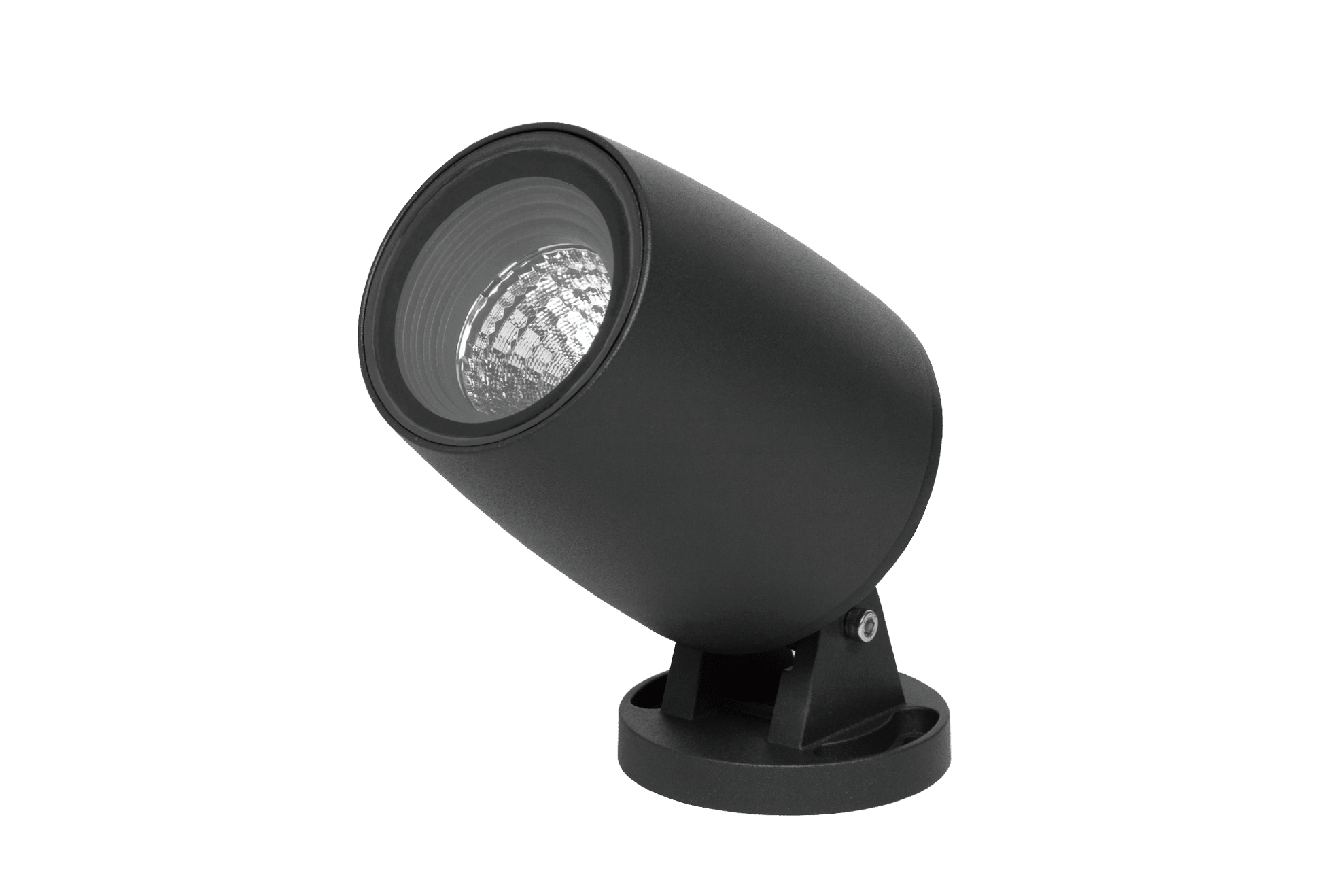

Ely LED spot light with in-ground mounting spike are made from diecast aluminum with a glass lens. The light is IP65 rated, perfectly suited for commercial and domestic out door illumination.

Product Code: ELY06-F40-BLK

Data Sheet

Installation Area

Dimensions

Built-in Option

Wattage

Lumens

CCT

Input Voltage Supply

Beam Angle

Ambient Temperature Range

IK Rating

Colour / Finish

L80B10 Lifetime

L70B50 Lifetime

IP Rating

Power Factor

Protection Rating

LS CRI

SDCM

Maximum Current Draw

Rated Power

Efficiency (lm/W)

Energy Class

Clear

KEY FEATURES

High efficient with integrated LED
In-ground mounting spike included
Options of grey and block finishing
120⁰ rotating spot light

GENERAL SPECIFICATIONS

Voltage:220-240Vac 50/60Hz

Ambient Temp:-20°C to 50°C

IK Rating:IK05

Installation Area:External

L80B10 Lifetime:84,000 h

L70B50 Lifetime:133,000 h

IP Rating:IP65

Power Factor:0.9, 0.94, 0.96

Protection Rating:Class I

LS CRI:82

SDCM:<6

TECHNICAL SUMMARY

Dimensions:136x∅64, 218x∅80, 255x∅100

Max Input Current:29 mA, 46 mA, 91 mA

Rated Power (W):10 W, 20 W, 6 W

CCT:4,000K

Efficiency (lm/W):85 lm/W, 90 lm/W

Lumen:1,800 lm, 510 lm, 850 lm

Beam Angle:60

Energy Class:E
