Erta

Name: Erta
SKU: ERT06
Availability: InStock

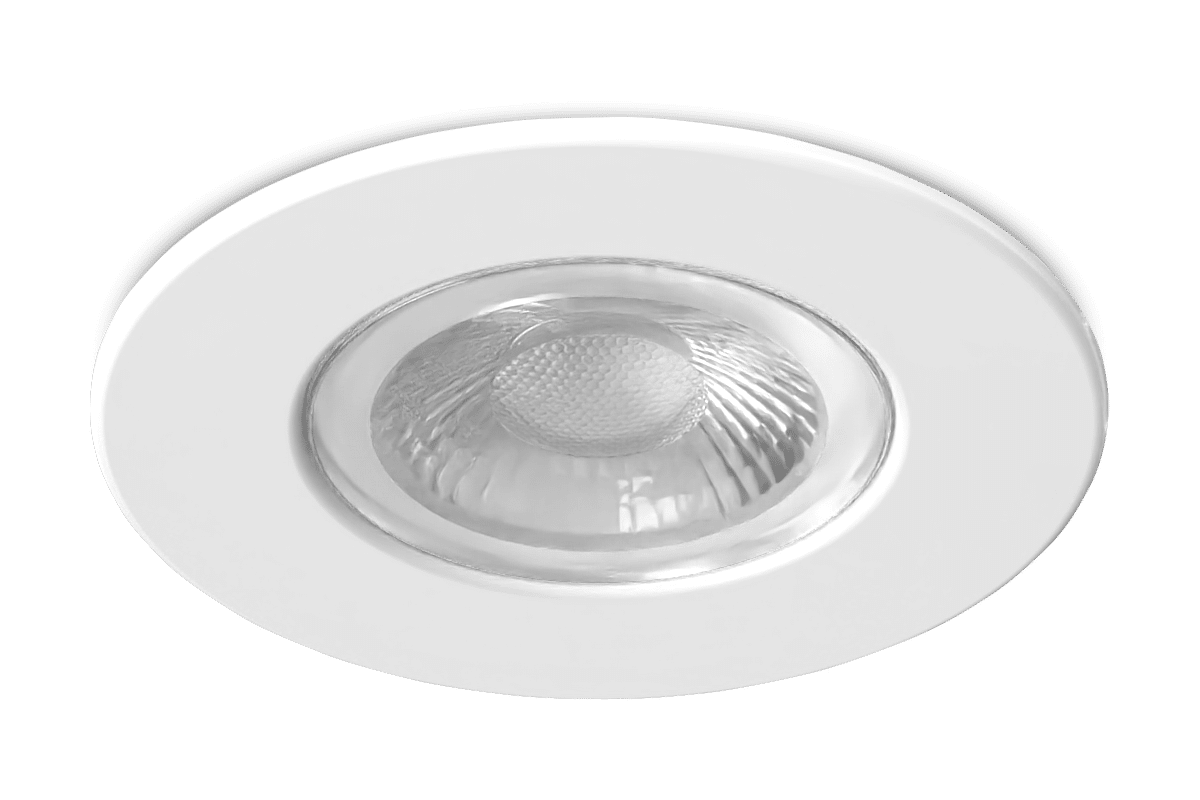

The Kosnic 6W Dimmable Fire Rated Downlights are suitable for 30, 60 and 90 minute applications and may be installed under insulation. These compact downlights can be dimmed with mains dimmer switches. The range is available in white and satin chrome bezel finishes.

Product Code: ERT06

Data Sheet LDT File

Installation Area

Dimensions

Settable CCT

Lumens

Built-in Option

Beam Angle

Wattage

Cut-Out

CCT

Input Voltage Supply

Colour / Finish

Ambient Temperature Range

Mounting Option

IK Rating

L80B10 Lifetime

L70B50 Lifetime

IP Rating

Power Factor

Protection Rating

LS CRI

SDCM

Default Setting

Maximum Current Draw

Rated Power

Efficiency (lm/W)

Energy Class

Clear

KEY FEATURES

Interchangeable bezels with different finishes
CCT Switchable (3000K/4000K/6000K)
IP65
Dimmable
Can be installed under insulation

GENERAL SPECIFICATIONS

Voltage:220-240Vac 50/60Hz

Ambient Temp:-15°C to 50°C

IK Rating:IK07

Installation Area:Internal

L80B10 Lifetime:50,000 h

L70B50 Lifetime:50,000 h

IP Rating:IP65

Power Factor:0.90

Protection Rating:Class I

LS CRI:82

SDCM:<6

TECHNICAL SUMMARY

Default Setting:4000K at 6W

Dimensions:51x∅80

Max Input Current:29 mA

Rated Power (W):6 W

Settable CCT:3000k, 4000k, 6000k

CCT:3000K, 4000K, 6000K

Efficiency (lm/W):108 lm/W

Lumen:650 lm

Beam Angle:40

Cut-Out:∅58mm

Energy Class:F
