Faceta

Name: Faceta
SKU: FAC3IN08-SCT
Availability: InStock

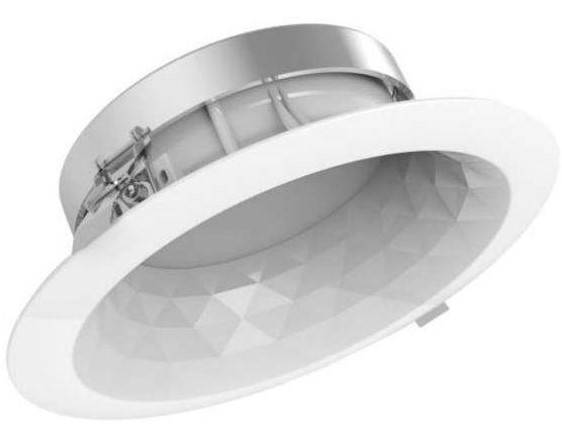

The Faceta LED Commercial Downlight range are retrofit LED lighting for widely used 3″, 4″, 6″ and 8″ fluorescent downlights with a distinctive faceted white reflector and a recessed light source. Available with a switchable CCT and the downlights are compatible with Kosnic’s emergency module.

Product Code: FAC3IN08-SCT

Old Product Code: KCDLLS08FR65/SCT-WHT

Data Sheet LDT File

Installation Area

Surge Capacity

Dimensions

Driver Maximum Power

Settable CCT

Lumens

Driver Output Current

Beam Angle

Cut-Out

Wattage

Built-in Option

CCT

Colour / Finish

Input Voltage Supply

Driver Input Voltage

Mounting Option

Ambient Temperature Range

IP Rating

Driver IP Rating

Power Factor

Protection Rating

Driver Protection Rating

LS CRI

SDCM

Default Setting

Driver Dimensions

Maximum Current Draw

Rated Power

Efficiency (lm/W)

Maintained Luminous Flux

Driver Output Voltage

Clear

KEY FEATURES

IP65 when ceiling recess mounted
Unique faceted white reflector
Option of CCT switching 3000K, 4000K, 5000K
Low glare
Flicker free

GENERAL SPECIFICATIONS

Voltage:220-240Vac 50/60Hz

Driver Voltage:180-264Vac 50/60Hz

Ambient Temp:-20°C to 50°C

Installation Area:Internal

IP Rating:IP65

Driver IP Rating:IP20

Power Factor:>90, 0.91, 0.92

Protection Rating:Class III

Driver Protection Rating:Class II

LS CRI:>80

SDCM:<6

Surge Capacity:1000

TECHNICAL SUMMARY

Default Setting:4000K, 4000K at 20W, 4000K at 26W

Dimensions:84x∅136, 88x∅202, 90x∅253

Driver Dimensions:107x43x30, 119x32x24

Max Input Current:119 mA, 38 mA, 99 mA

Rated Power (W):8 W

Driver Max. power:30, 8

Settable CCT:3000k, 4000k, 5000k

CCT:3000K, 4000K, 5000K

Efficiency (lm/W):50 lm/W, 69 lm/W, 82 lm/W

Emergency Luminous Flux (lm):180 lm, 300 lm

Lumen:1,380 lm, 2,000 lm, 400 lm

Driver Output Current:180, 600/700

Driver Output Voltage:24-42, 30-42

Beam Angle:80

Cut-Out:∅164mm, ∅215mm, ∅86mm
