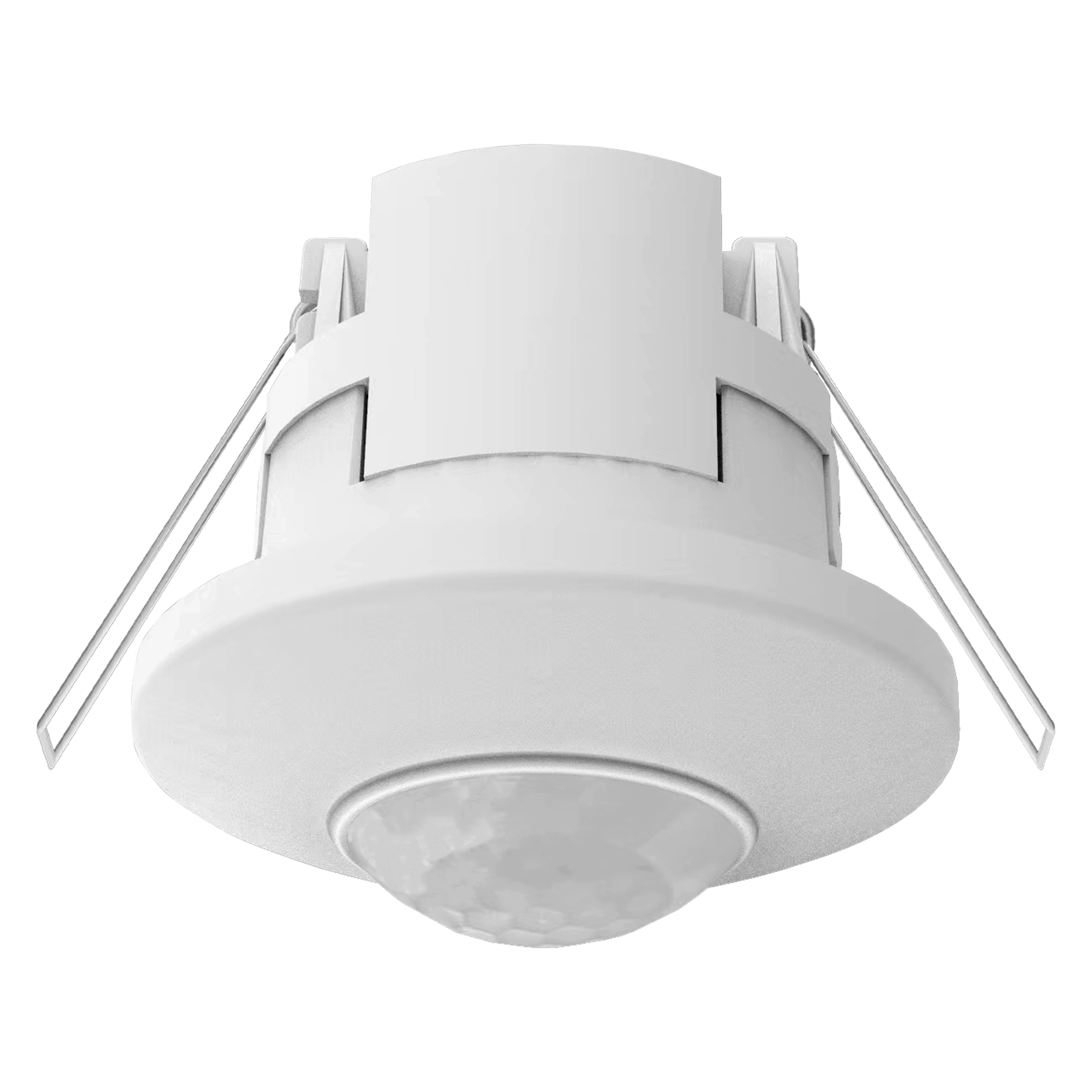

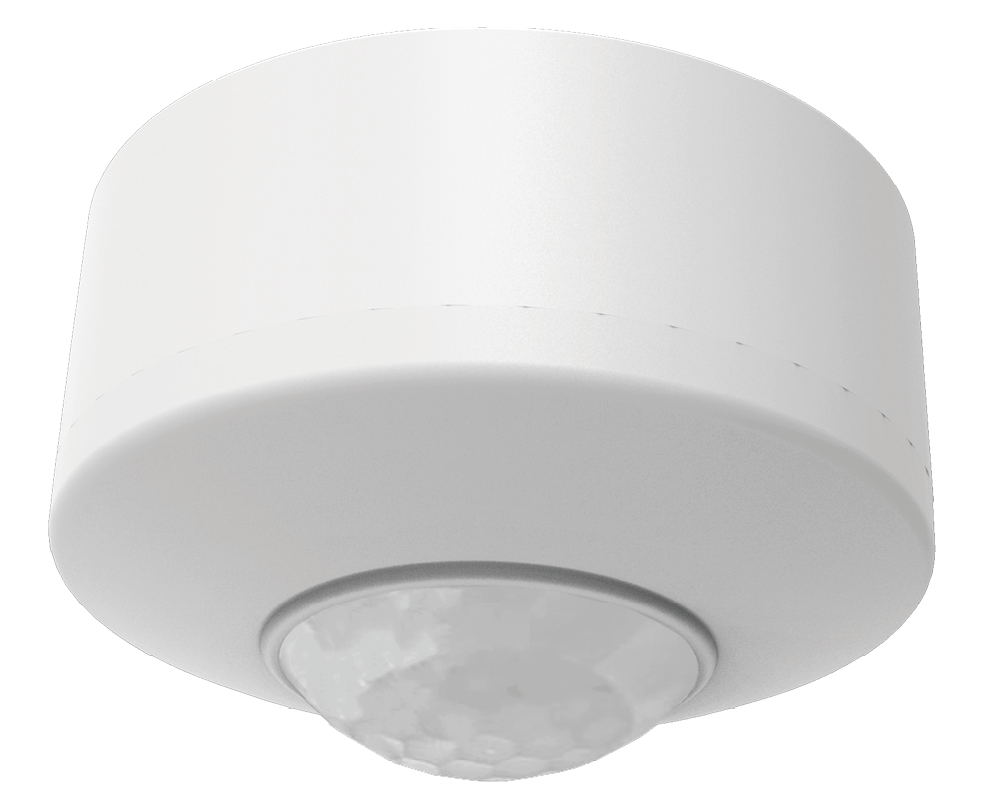

Falco P10 Interior PIR Sensor

Name: Falco P10 Interior PIR Sensor
SKU: FAL-P-BLK
Availability: InStock

The Falco P10 Interior PIR Sensor can switch up to 2 kilowatts, and with the ability to be surface or recess mounted makes it a good choice for many applications. The 360-degree detection range, and high mounting hight gives it a impressive 8m detection radius.

Product Code: FAL-P-BLK

Old Product Code: PIR-INT

Data Sheet

Installation Area

Dimensions

Input Voltage Supply

Ambient Temperature Range

Cut-Out

Colour / Finish

IP Rating

Mounting Option

Protection Rating

Detection radius

Detection Angle

Clear

KEY FEATURES

Modular design allow both surface and recessed mounting
All mounting accessories are included
Upto 4m mounting height
360 degree detection range
Adjustable time delay (10s-7min) and daylight sensitivity
Available in black and white

GENERAL SPECIFICATIONS

Voltage:220-240Vac 50/60Hz

Ambient Temp:-20°C to 40°C

Installation Area:Internal

IP Rating:IP20

Protection Rating:Class II

TECHNICAL SUMMARY

Dimensions:66 depth ∅74 (Recessed mount, 45 void), 47 depth ∅74 (Surface mount)

Detection Radius:8 m

Detection Angle:360°

Cut-Out:∅59mm
