Filament GLS

Name: Filament GLS
SKU: FA07-BC27
Availability: InStock

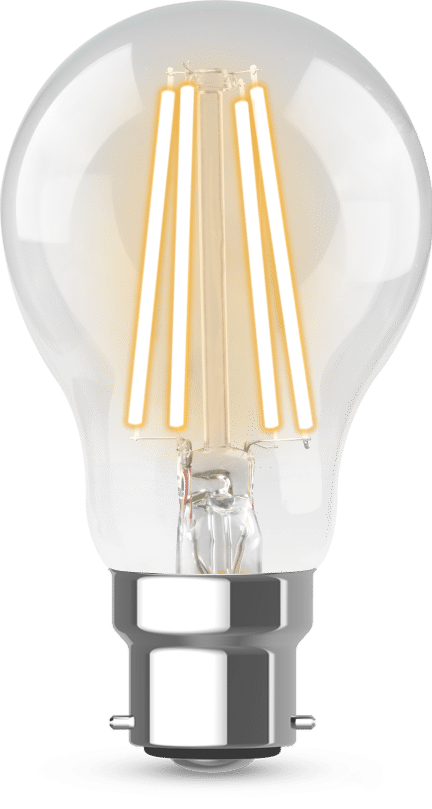

The Kosnic LED Filament lamp has a traditional appearance and gives an even spread of light in all directions. It is also highly functional and efficient. The lamps can quickly replace filament products in domestic and hospitality lighting applications, and once in place rapid payback is achieved.

Product Code: FA07-BC27

Data Sheet

Installation Area

Dimensions

Dimmable

Wattage

Lumens

CCT

Input Voltage Supply

Ambient Temperature Range

Cap

Colour / Finish

L80B10 Lifetime

L70B50 Lifetime

IP Rating

Power Factor

Protection Rating

LS CRI

SDCM

Maximum Current Draw

Rated Power

Efficiency (lm/W)

Energy Class

Clear

KEY FEATURES

Linear LED filament provides a traditional appearance
Even light distribution
Save energy up to 90% compared with an incandescent filament lamp

GENERAL SPECIFICATIONS

Voltage:220-240Vac 50/60Hz

Ambient Temp:-20°C to 40°C, -20°C to 50°C

Installation Area:Internal

L80B10 Lifetime:15,000 h

L70B50 Lifetime:15,000 h

IP Rating:IP20

Power Factor:0.5

Protection Rating:Class II

LS CRI:>80, 80, 82

SDCM:<6

TECHNICAL SUMMARY

Dimensions:104x∅60, 106x∅60, 108x∅60

Max Input Current:26 mA, 35 mA, 42 mA, 45 mA

Rated Power (W):4.2 W, 7 W, 7.3 W

CCT:2,700K, 4,000K

Efficiency (lm/W):110 lm/W, 112 lm/W, 115 lm/W

Dimmable:No, Yes

Lumen:1,055 lm, 1,521 lm, 470 lm, 806 lm

Energy Class:D, E
