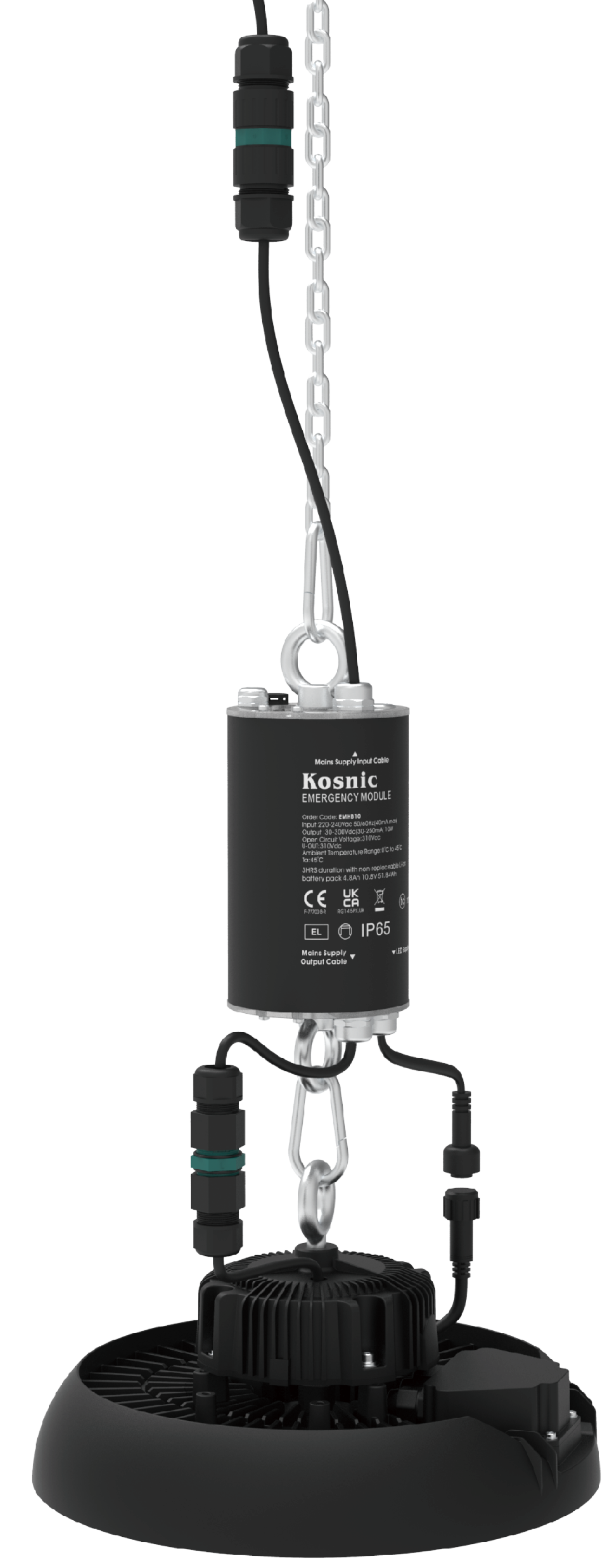

High Bay EME

Name: High Bay EME
SKU: EMHB10
Availability: InStock

The emergency module is an optional extra for a selection of Kosnic LED High and Low Bay luminaires. This module will add a minimum 3hr duration emergency lighting option. Includles Li-lon battery with 4 years life.

Product Code: EMHB10

Data Sheet

UEM/EME Input Voltage

Installation Area

Dimensions

UEM/EME Ambient Temp Range

Colour / Finish

Emergency Option

IP Rating

Mounting Option

Protection Rating

UEM/EME Protection

UEM/EME Dimensions

Output Current

Output Voltage

Clear

KEY FEATURES

IP65, class I independent driver
Manual and Self-Test versions available
Li-lon battery for improved lifespan allowing frequent partial discharge without battery capacity reduction
>3hr Duration
8W Output
Status LED
Remote control for a quick functional test

GENERAL SPECIFICATIONS

Voltage:220-240Vac 50/60Hz

Ambient Temp:0°C to 45°C, 0°C to 50°C

Installation Area:Internal and External

IP Rating:IP65

Protection Rating:Class I

TECHNICAL SUMMARY

Dimensions:157to230x∅95

Output Current:20-150, 30-250 mA

Output Voltage:30-300 Vdc, 30-300Vdc
