K2D

Name: K2D
SKU: K2DC9-18STD/4P-SCT
Availability: InStock

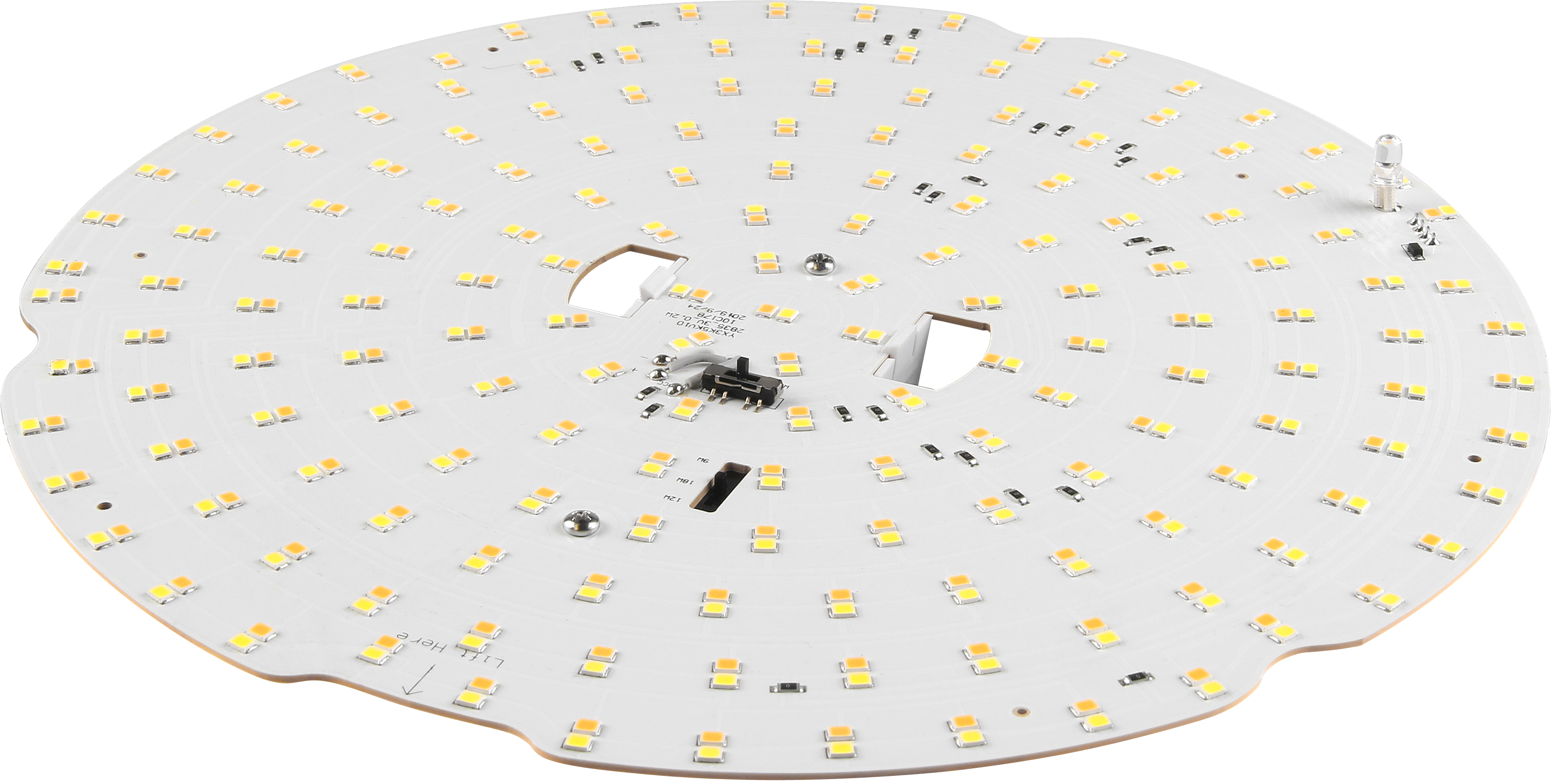

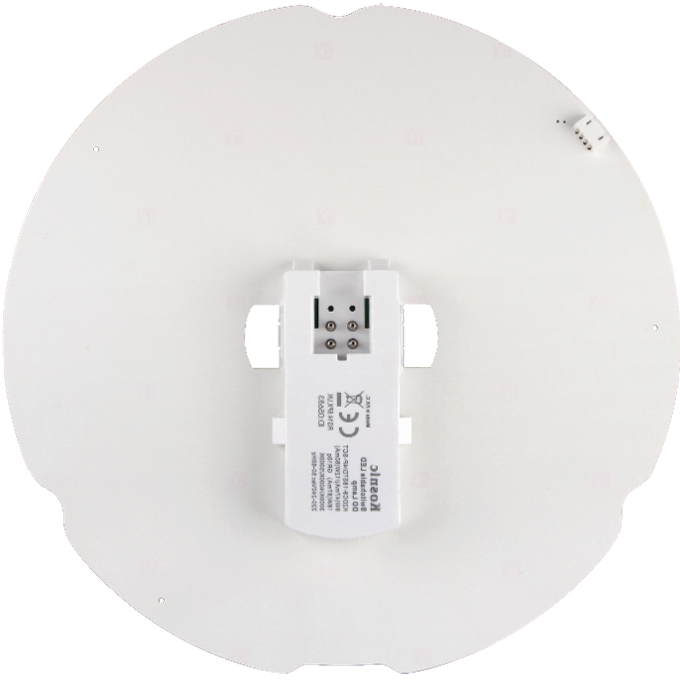

The Kosnic LED DD sensor lamp takes a fresh approach to functional lighting with a design that offers selectable wattage and CCT options on a single lamp. Recommended for the Ossa and Visio fittings and compatible with Kosnic plug-in emergency modules. The lamps may quickly replace existing fluorescent lamps with no rewiring.

Product Code: K2DC9-18STD/4P-SCT

Data Sheet

Installation Area

Dimensions

Wattage

Settable CCT

Lumens

Built-in Option

CCT

Input Voltage Supply

Cap

Ambient Temperature Range

Colour / Finish

L80B10 Lifetime

L70B50 Lifetime

LS CRI

Default Setting

Maximum Current Draw

Efficiency (lm/W)

Energy Class

Clear

KEY FEATURES

Wattage switchable 9W/12W/18W
Colour temperature switchable 3000K/4000K/5000K
Compatible with Kosnic’s standard and self-test emergency modules
Single side high lumen output for light only where it’s needed
Save energy up to 65% compared with a fluorescent lamp
with magnetic ballast
Flicker free

GENERAL SPECIFICATIONS

Voltage:220-240Vac 50/60Hz

Ambient Temp:-20°C to 40°C

Installation Area:Internal

L80B10 Lifetime:54,000 h

L70B50 Lifetime:54,000 h

LS CRI:≥82

TECHNICAL SUMMARY

Default Setting:5000K at 9W

Dimensions:22x∅252

Max Input Current:87 mA

Settable CCT:3000k, 4000k, 5000k

CCT:3000K, 4000K, 5000K

Efficiency (lm/W):148 lm/W

Lumen:2,660 lm

Energy Class:D
