Kavka

Name: Kavka
SKU: KAV-P-BLK
Availability: InStock

Kavka Exterior PIR Sensor is IP54 rated and designed for outdoor installation, with a range of mounting option and large detection area. The 360 degree downwards facing detector combined with the 12m range detector makes it well suited for installation above exterior doors.

Product Code: KAV-P-BLK

Old Product Code: PIR-EXT-BLK

Data Sheet

Installation Area

Dimensions

Input Voltage Supply

Ambient Temperature Range

IP Rating

Colour / Finish

Mounting Option

Protection Rating

Detection radius

Detection Angle

Clear

KEY FEATURES

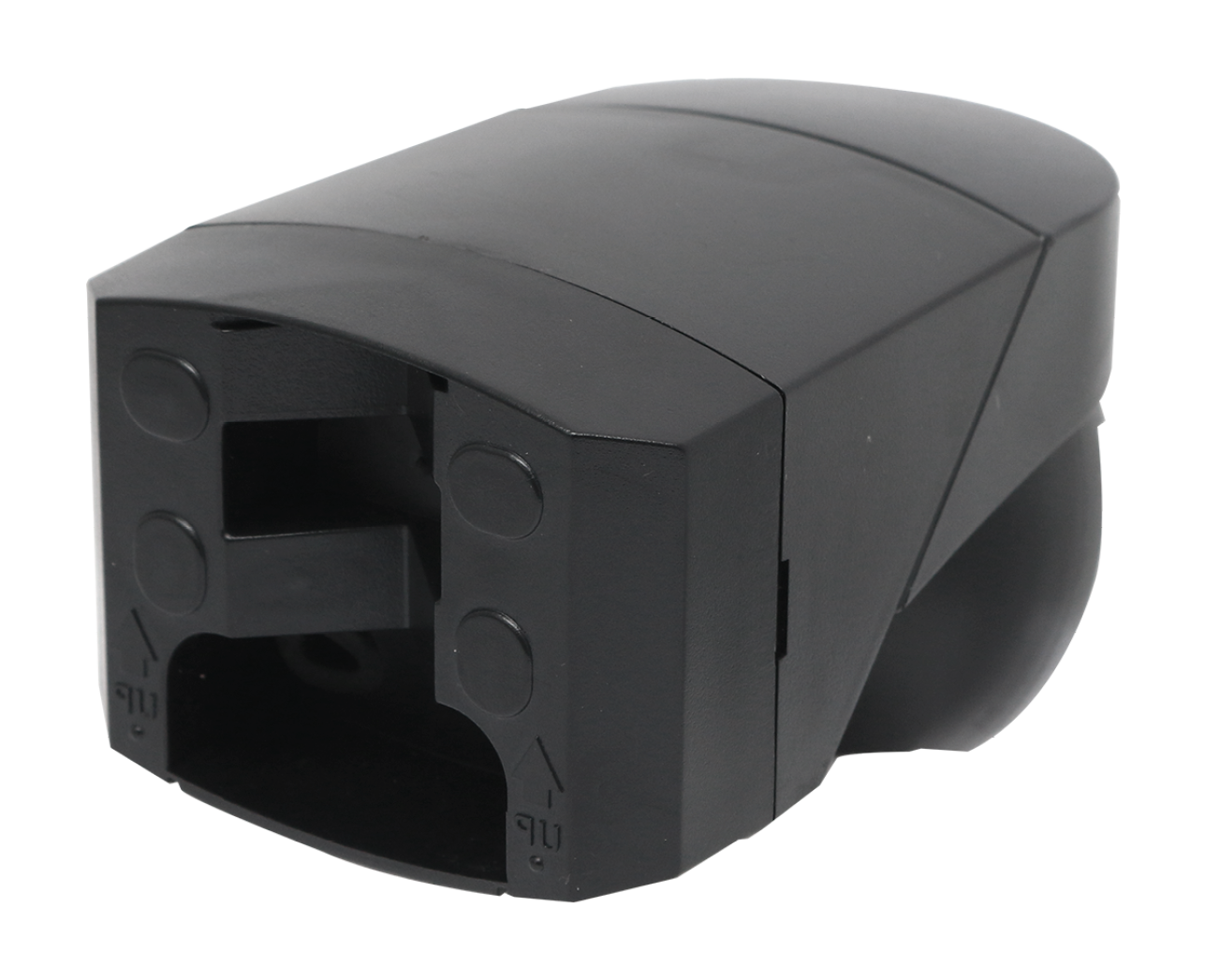

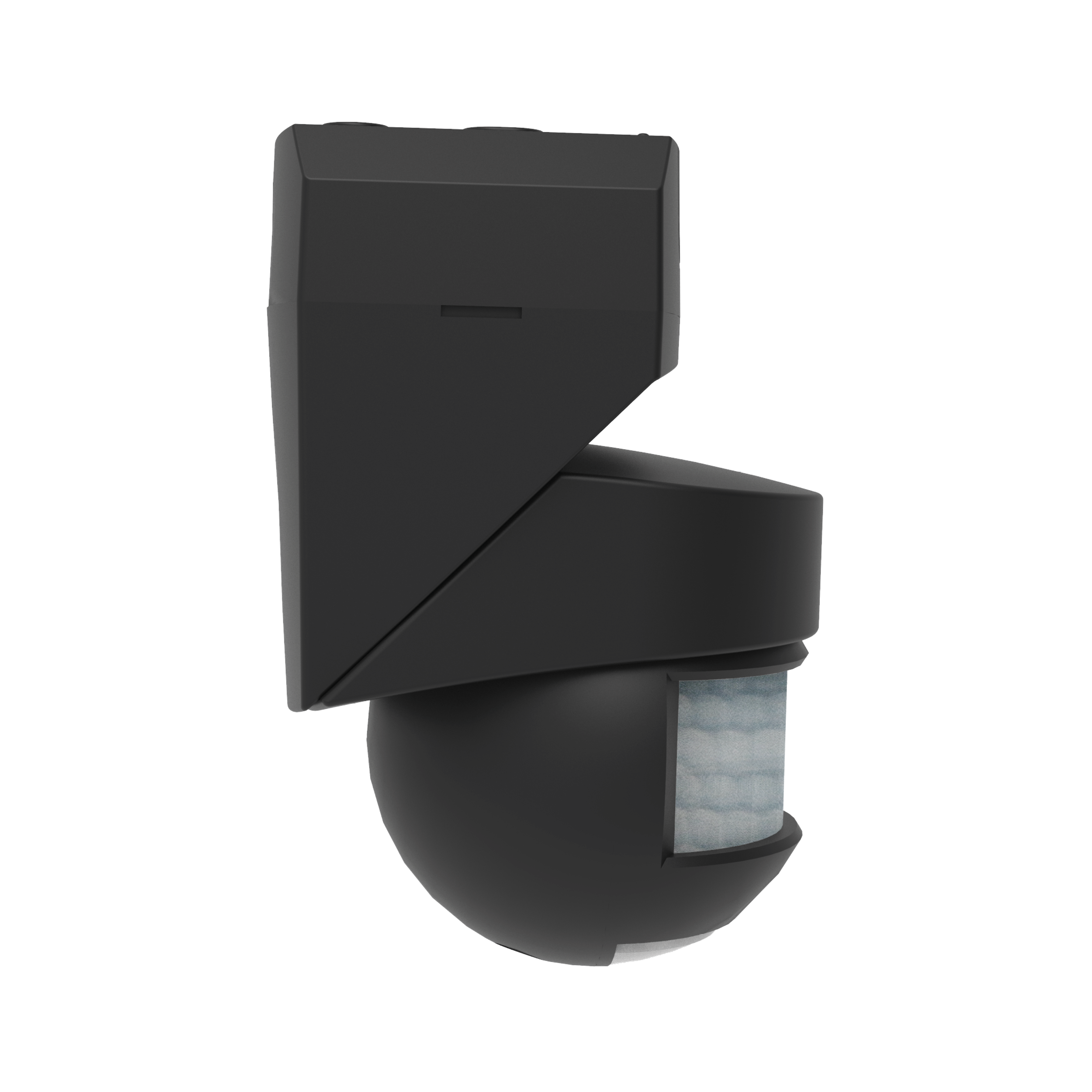

Designed for wall, ceiling and corner mounting positions
IP54 rated for outdoor use
All mounting accessories are included
Up to 4m mounting height
Wide detection angle of 180°+360° degree
Adjustable time delay (10s-15min) and daylight sensitivity by dials
Configure with Uni-Remote
Available in black and white

GENERAL SPECIFICATIONS

Voltage:220-240Vac 50/60Hz

Ambient Temp:-20°C to 40°C

Installation Area:Internal and External

IP Rating:IP54

Protection Rating:Class II

TECHNICAL SUMMARY

Dimensions:114x78x78

Detection Radius:12 m

Detection Angle:"180° (side), 360° (bottom)"
