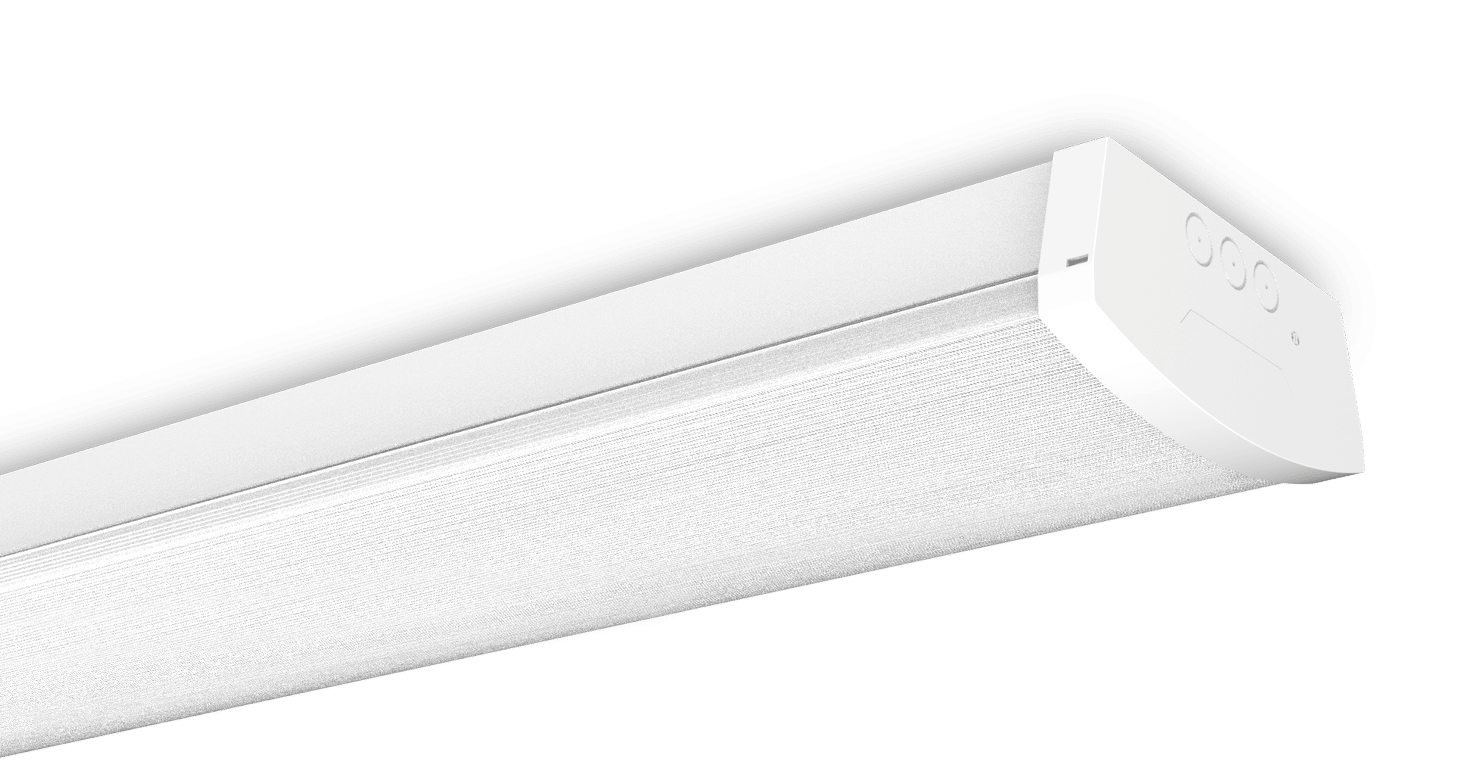

Kennet Pro

Name: Kennet Pro
SKU: KENP6F-SCT/DA
Availability: InStock

The Kosnic Kennet Pro battens utilise high performance LEDs to offer outstanding lumen efficiency, with wattage and CCT switchable for different ambient requirements. They are suitable for a wide range of applications including offices, corridors, warehouses, factories and garages.

Product Code: KENP6F-SCT/DA

Old Product Code: KBTN65LS12/SCT/D

Data Sheet LDT File

Installation Area

Dimensions

Driver Maximum Power

Wattage

Settable CCT

Lumens

Driver Output Current

CCT

Input Voltage Supply

Built-in Option

Driver Input Voltage

Colour / Finish

Ambient Temperature Range

Length

IK Rating

L80B10 Lifetime

IP Rating

Driver IP Rating

Power Factor

Protection Rating

LS CRI

Default Setting

Driver Dimensions

Efficiency (lm/W)

Driver Output Voltage

Clear

KEY FEATURES

Low glare, UGR <19
Ideal replacement for twin T8 surface mount battens
20mm conduit entries
Switchable CCT (3000K/4000K/6000K)
Flicker free
Plug & play microwave sensor module with corridor function for standard version only
Plug & play emergency module
BESA box fitting points
TP(a) rated diffuser

GENERAL SPECIFICATIONS

Voltage:220-240Vac 50/60Hz

Driver Voltage:200-240VAC/DC

Ambient Temp:-20°C to 50°C

IK Rating:IK08

Installation Area:Internal

L80B10 Lifetime:69,000 h

IP Rating:IP20

Driver IP Rating:IP20

Power Factor:0.95

Protection Rating:Class I

LS CRI:82

TECHNICAL SUMMARY

Default Setting:65W

Dimensions:1778x205x86

Driver Dimensions:158x30x21

Driver Max. power:43.75 W

Settable CCT:3000k, 4000k, 6000k

CCT:3000K, 4000K, 6000K

Efficiency (lm/W):122 lm/W

Lumen:7,850 lm

Driver Output Current:0.2-0.35A

Driver Output Voltage:54-125/135/140VDC
