Luna

Name: Luna
SKU: LUN60-W22
Availability: InStock

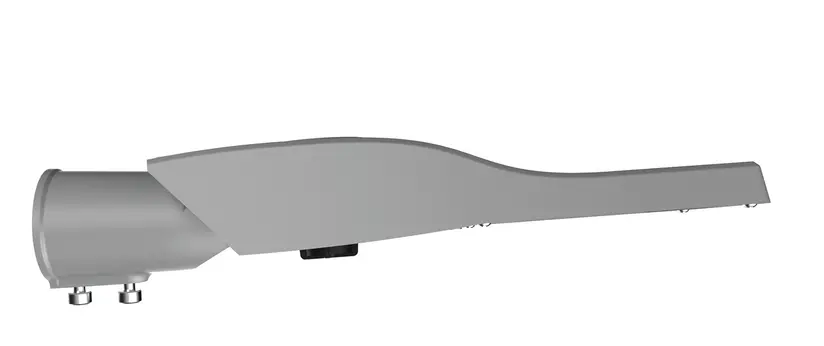

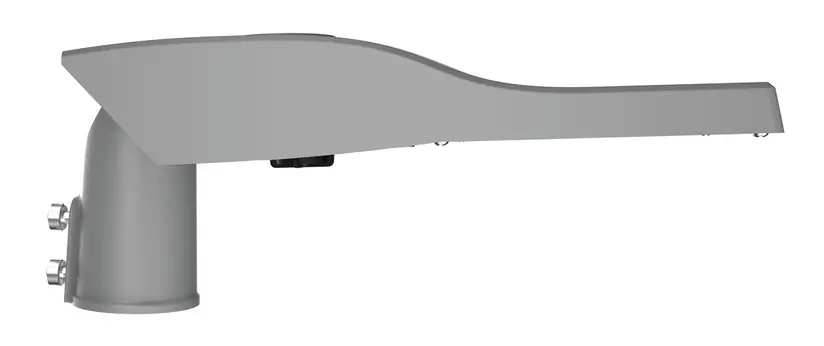

The Luna LED street light offers energy savings and high performance, replacing conventional lighting for roadways, passages, parks and courtyards. It is waterproof rating of IP67 and a robust construction IK10. Plus, you are able to add-on some of our popular PIR sensors, compatible with the Uni-Remote.

Product Code: LUN60-W22

Data Sheet

IK Rating

Installation Area

IP Rating

Dimensions

Wattage

Built-in Option

Lumens

CCT

Input Voltage Supply

Beam Angle

Driver Input Voltage

Ambient Temperature Range

L80B10 Lifetime

Colour / Finish

L70B50 Lifetime

Power Factor

Protection Rating

LS CRI

SDCM

Surge Capacity

Default Setting

Maximum Current Draw

Efficiency (lm/W)

Energy Class

Clear

KEY FEATURES

High efficiency up to 165lm/W
Suitable for pole mounting (60±5mm)
IP67 & IK10 rated
Whole structure heat dissipation
Darksky version available

GENERAL SPECIFICATIONS

Voltage:100-240Vac 50/60Hz

Driver Voltage:100-277Vac 50/60Hz

Ambient Temp:-40°C to 50°C

IK Rating:IK08

Installation Area:External

L80B10 Lifetime:229,000 h

L70B50 Lifetime:368,000 h

IP Rating:IP66

Power Factor:0.95

Protection Rating:Class I

LS CRI:70

SDCM:<6

Surge Capacity:10000V (L to GND)

TECHNICAL SUMMARY

Default Setting:60W

Dimensions:462x222x86

Max Input Current:275 mA

CCT:2,200K, 4,000K

Efficiency (lm/W):165 lm/W

Lumen:7,500 lm, 9,000 lm

Beam Angle:Axial 160° Transverse 90°

Energy Class:C, D
