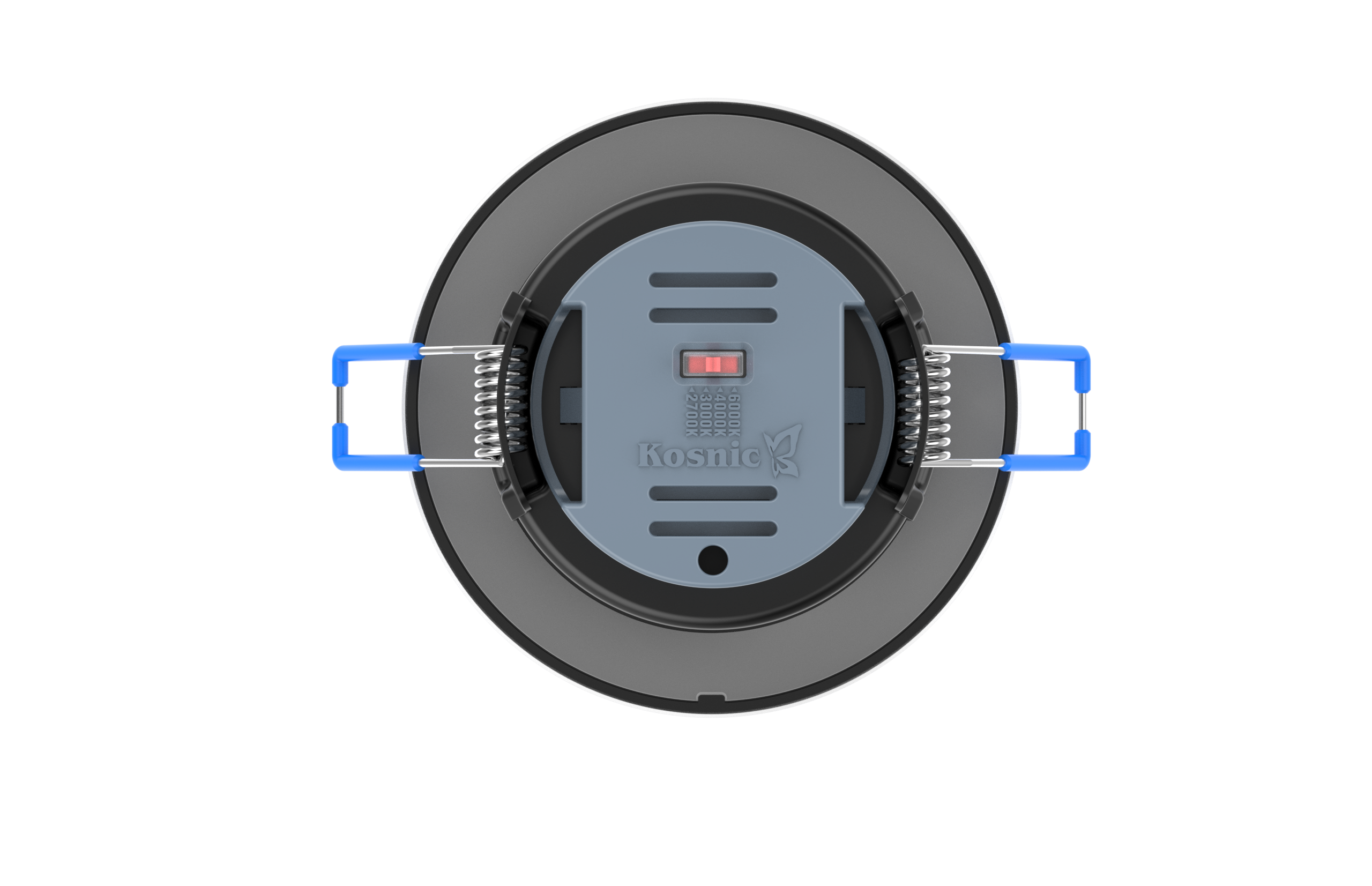

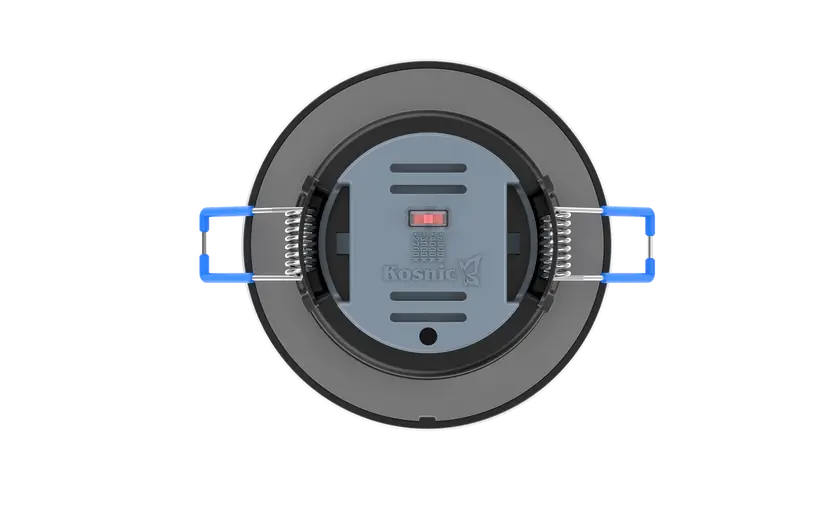

Mauna 2 Plus Tilt

Name: Mauna 2 Plus Tilt
SKU: MAU206TB
Availability: InStock

The Mauna Plus range as well as having the fire rating, ability to be installed under insulation, and low void clearance of the Mauna II, adds wattage switching and a CCT options. Also anti-glare, and tilting options. With the magnetic bezels the Mauna II Plus range doesn’t put functionality at the cost of aesthetics.

Product Code: MAU206TB

Data Sheet LDT File

Installation Area

Dimensions

Driver Maximum Power

Wattage

Settable CCT

Lumens

Driver Output Current

Beam Angle

Cut-Out

Built-in Option

CCT

Colour / Finish

Input Voltage Supply

Driver Input Voltage

Mounting Option

Ambient Temperature Range

IK Rating

L80B10 Lifetime

L70B50 Lifetime

IP Rating

Protection Rating

LS CRI

Default Setting

Driver Dimensions

Maximum Current Draw

Efficiency (lm/W)

Emergency Luminous Flux

Driver Output Voltage

Energy Class

Clear

KEY FEATURES

Integrated dimmable driver
Interchangeable magnetic bezels with different finishes
Can be installed under Insulation layer
Compact size with void of 65mm

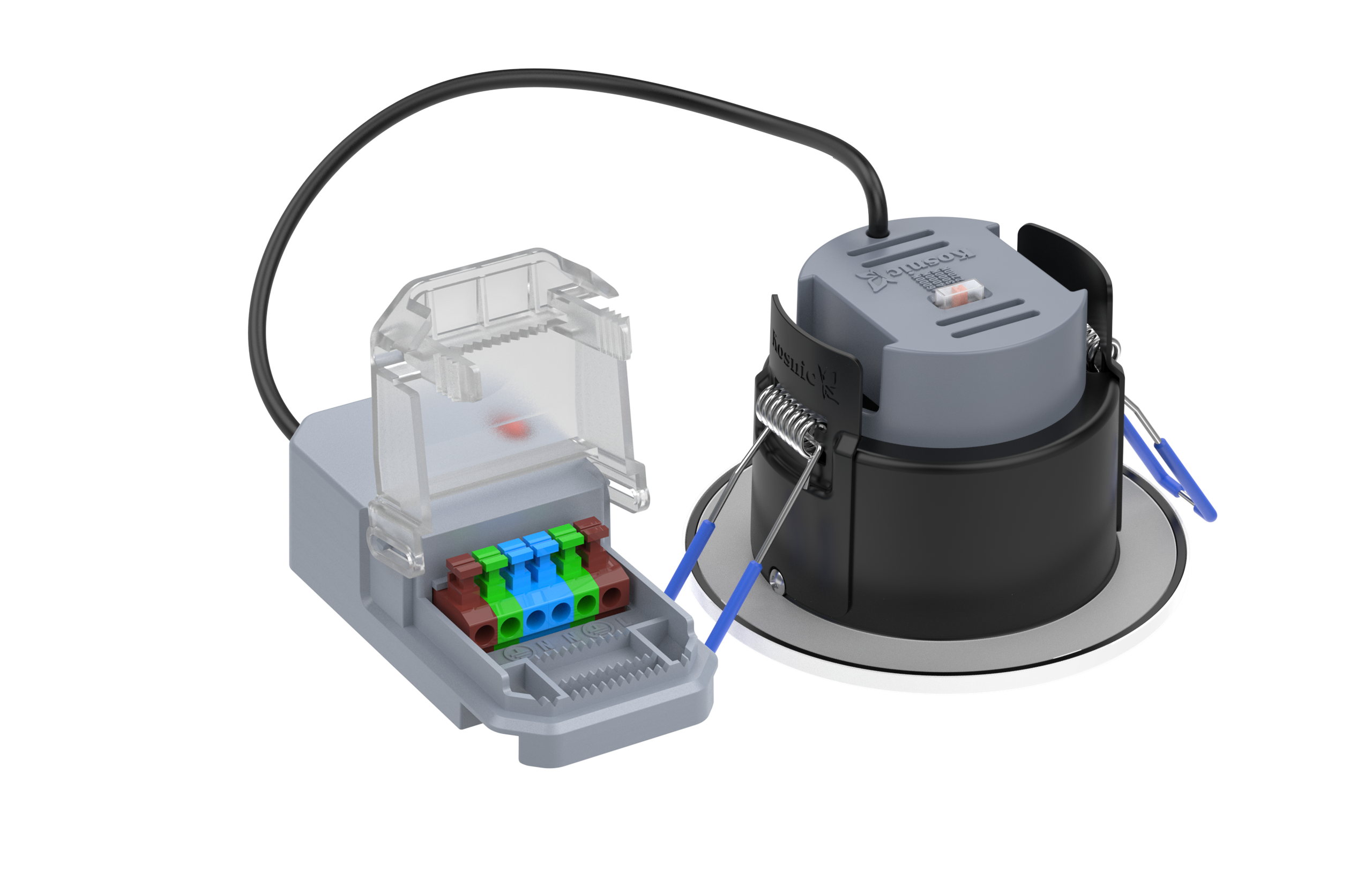

Coloured LENNEL push-wire terminals
CCT switchable with 4 choices
Black anti-glare rim with satin chrome bezel included

GENERAL SPECIFICATIONS

Voltage:220-240Vac 50/60Hz

Driver Voltage:200-240Vac 50/60Hz

Ambient Temp:-30°C to 50°C

IK Rating:IK07

Installation Area:Internal

L80B10 Lifetime:50,000 h

L70B50 Lifetime:50,000 h

IP Rating:IP65

Protection Rating:Class I

LS CRI:≥82

TECHNICAL SUMMARY

Default Setting:3000K at 6W

Dimensions:62x∅91

Driver Dimensions:85x47x30

Max Input Current:30 mA

Driver Max. power:5.1

Settable CCT:2700k, 3000k, 4000k, 6000k

CCT:2700K, 3000K, 4000K, 6000K

Efficiency (lm/W):115 lm/W

Emergency Luminous Flux (lm):150 lm

Lumen:690 lm

Driver Output Current:95

Driver Output Voltage:54

Beam Angle:65

Cut-Out:∅74mm

Energy Class:F
