Mauna 3

Name: Mauna 3
SKU: MAU306
Availability: InStock

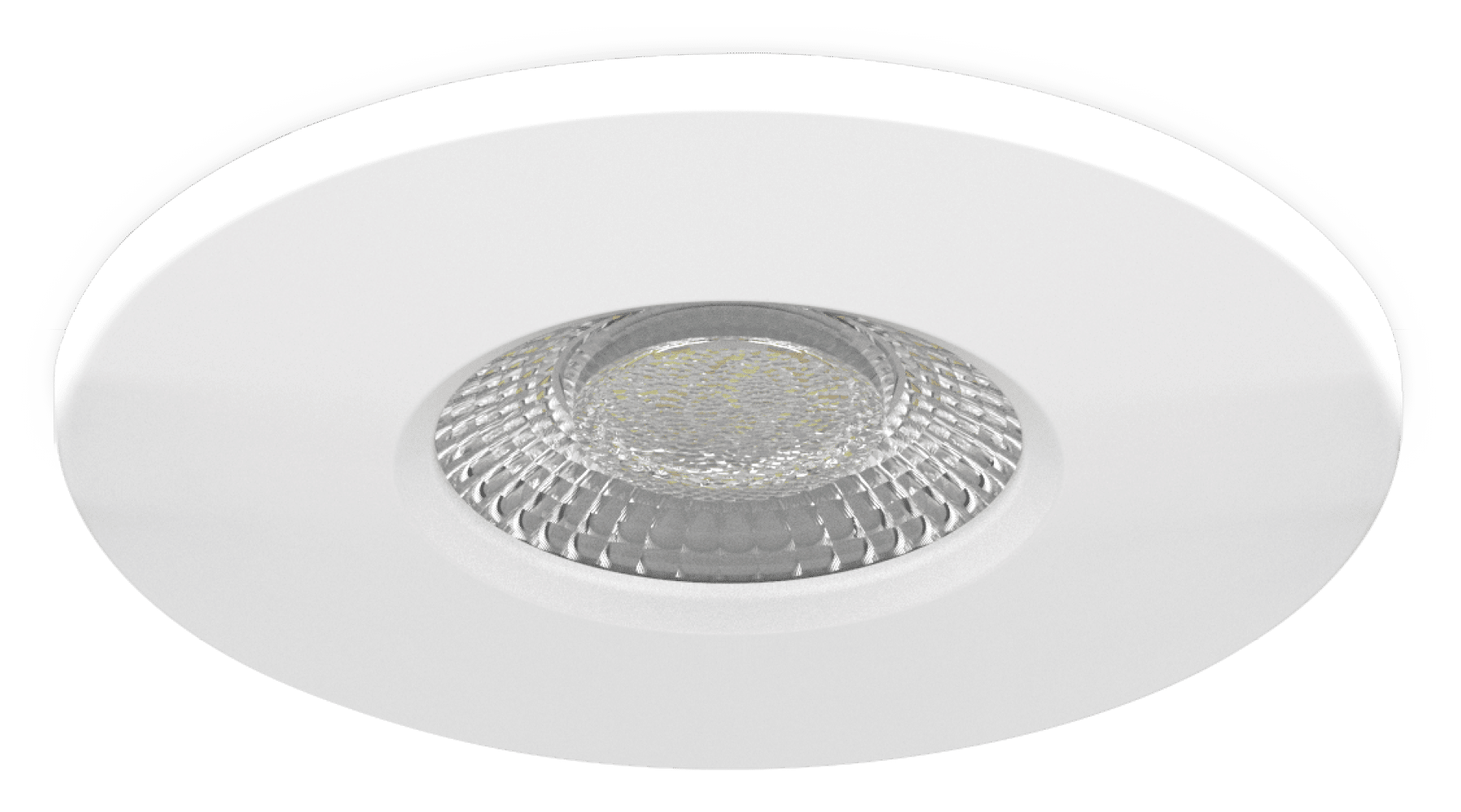

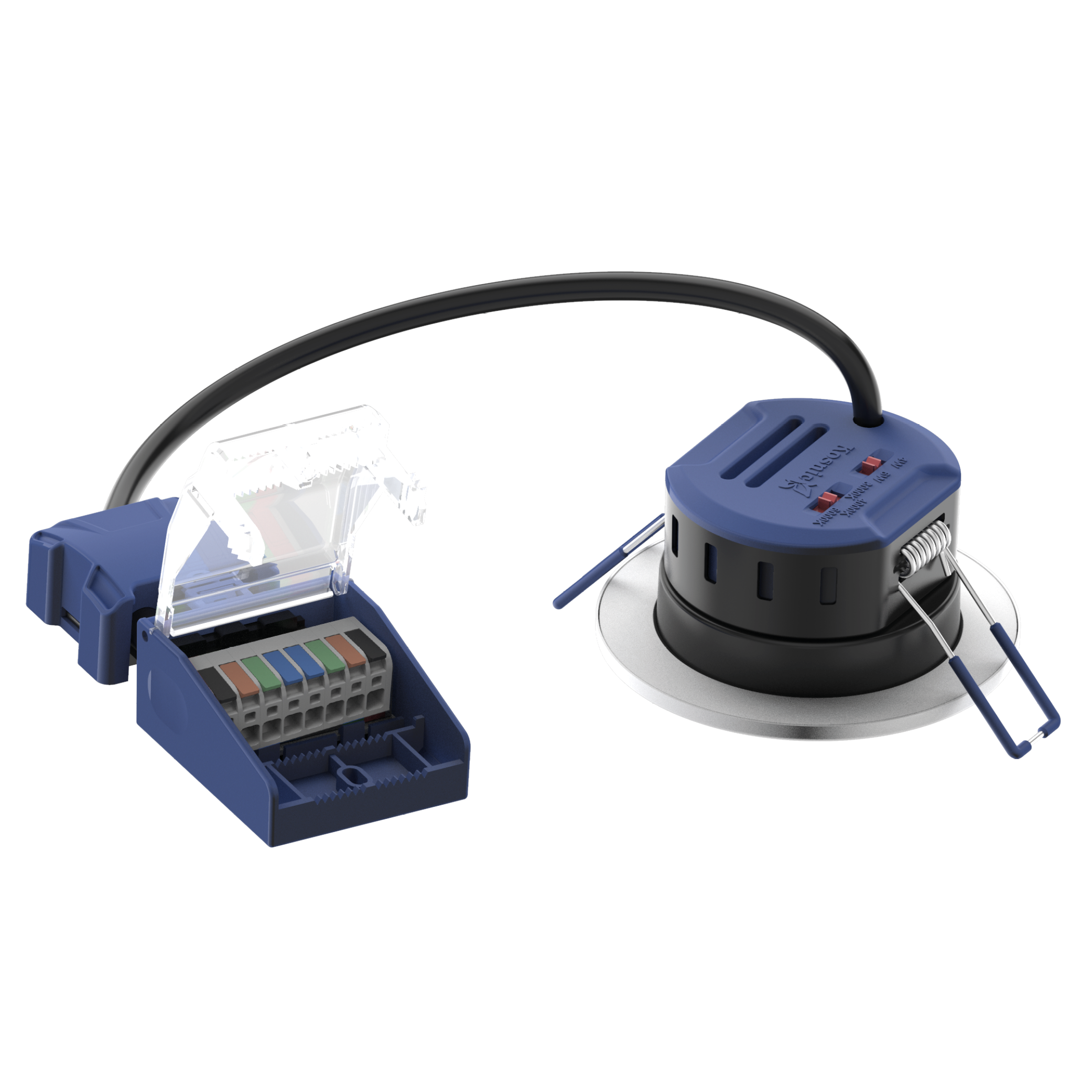

The Kosnic Mauna 4W/6W Dimmable Fire Rated Downlights are suitable for 30, 60 and 90 minute applications and may be installed under insulation. Can be dimmed with mains dimmer switches and have a choice of interchangeable magnetic bezels with different finishes. The white bezel is supplied as standard.

Product Code: MAU306

Old Product Code: MAU206

Data Sheet

Installation Area

Dimensions

Driver Maximum Power

Wattage

Settable CCT

Dimmable

Lumens

Driver Output Current

Beam Angle

Cut-Out

Built-in Option

Colour / Finish

CCT

Input Voltage Supply

Mounting Option

Driver Input Voltage

Ambient Temperature Range

IK Rating

L80B10 Lifetime

L70B50 Lifetime

IP Rating

Power Factor

Protection Rating

LS CRI

SDCM

Surge Capacity

Default Setting

Driver Dimensions

Maximum Current Draw

Driver Output Voltage

Energy Class

Clear

KEY FEATURES

High efficiency up to 132lm/W

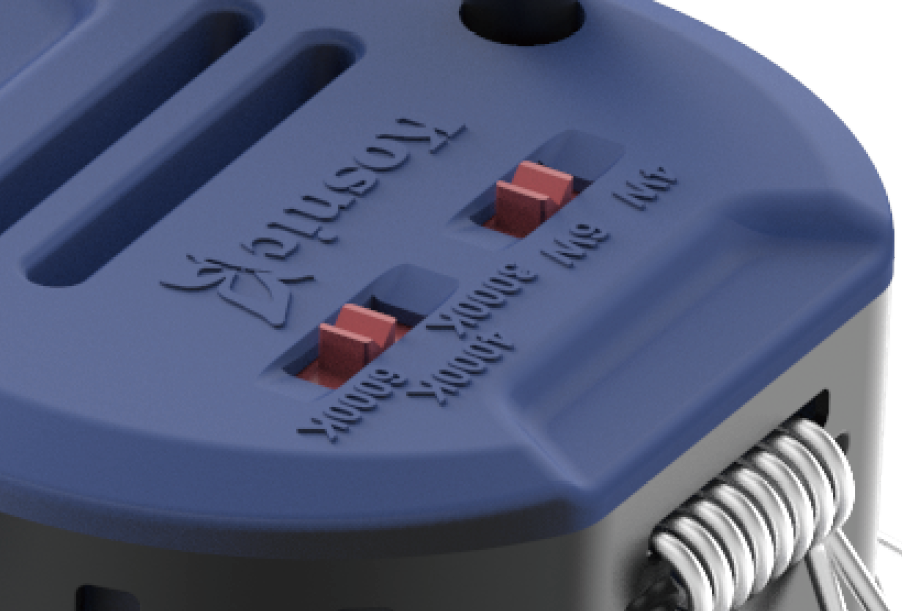

Switchable wattage and CCT (3000/4000/6000k)
Optional add-on emergency kits, available in standard and self-test
Optional PIR sensors compatible with Uni-Remote
Integrated dimmable driver
Interchangeable magnetic bezels with different finishes
Can be installed under insulation layer with void of 40mm
Compact size

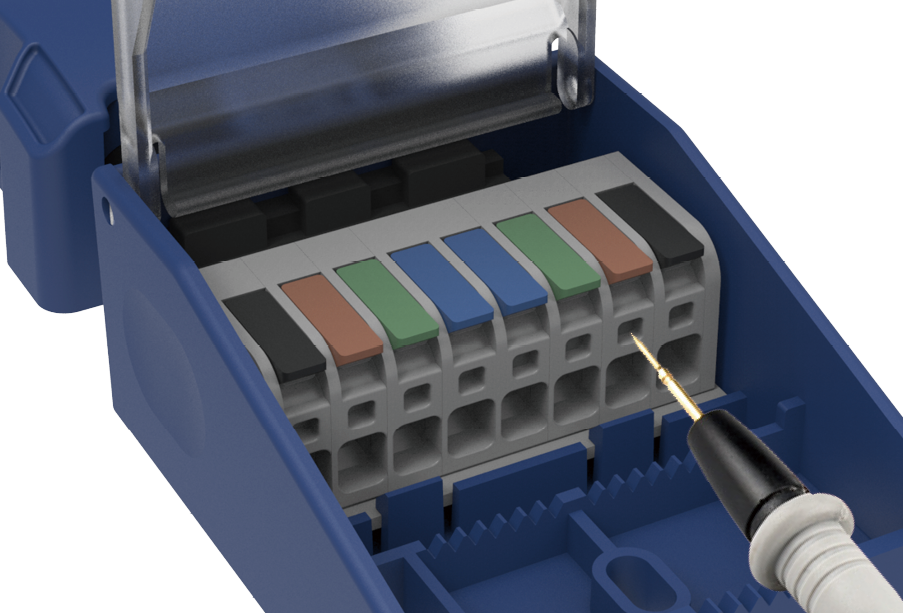

Plug-in push wire terminal
5 multipack available

GENERAL SPECIFICATIONS

Voltage:220-240Vac 50/60Hz

Driver Voltage:200-240 Vac 50/60 Hz

Ambient Temp:-30°C to 50°C

IK Rating:IK07

Installation Area:Internal

L80B10 Lifetime:76,000 h

L70B50 Lifetime:121,000 h

IP Rating:IP65

Power Factor:0.7

Protection Rating:Class I

LS CRI:80

SDCM:<6

Surge Capacity:2000V

TECHNICAL SUMMARY

Default Setting:3000K at 6W

Dimensions:43x∅88

Driver Dimensions:121.1x47.4x25.4

Max Input Current:37 mA

Driver Max. power:6.6

Settable CCT:3000k, 4000k, 6000k

CCT:3000K, 4000K, 6000K

Dimmable:Yes

Lumen:710 lm

Driver Output Current:13 (4W) 19 (6W)

Driver Output Voltage:250

Beam Angle:60

Cut-Out:68

Energy Class:F
