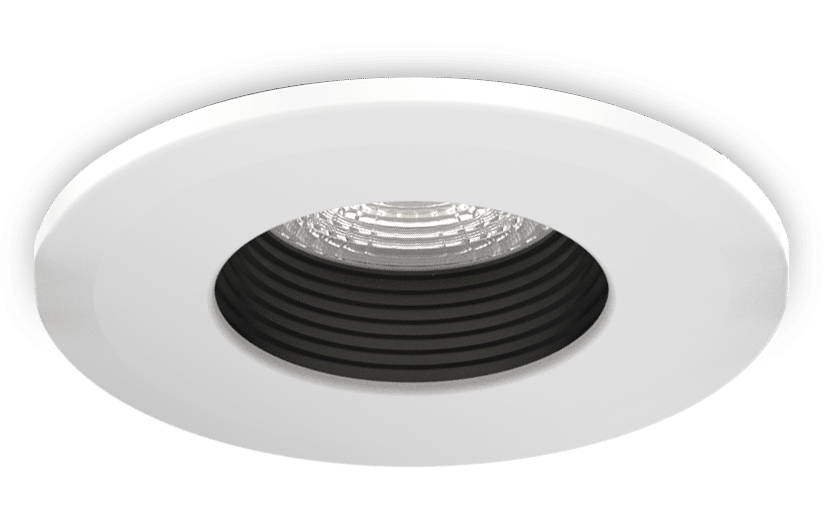

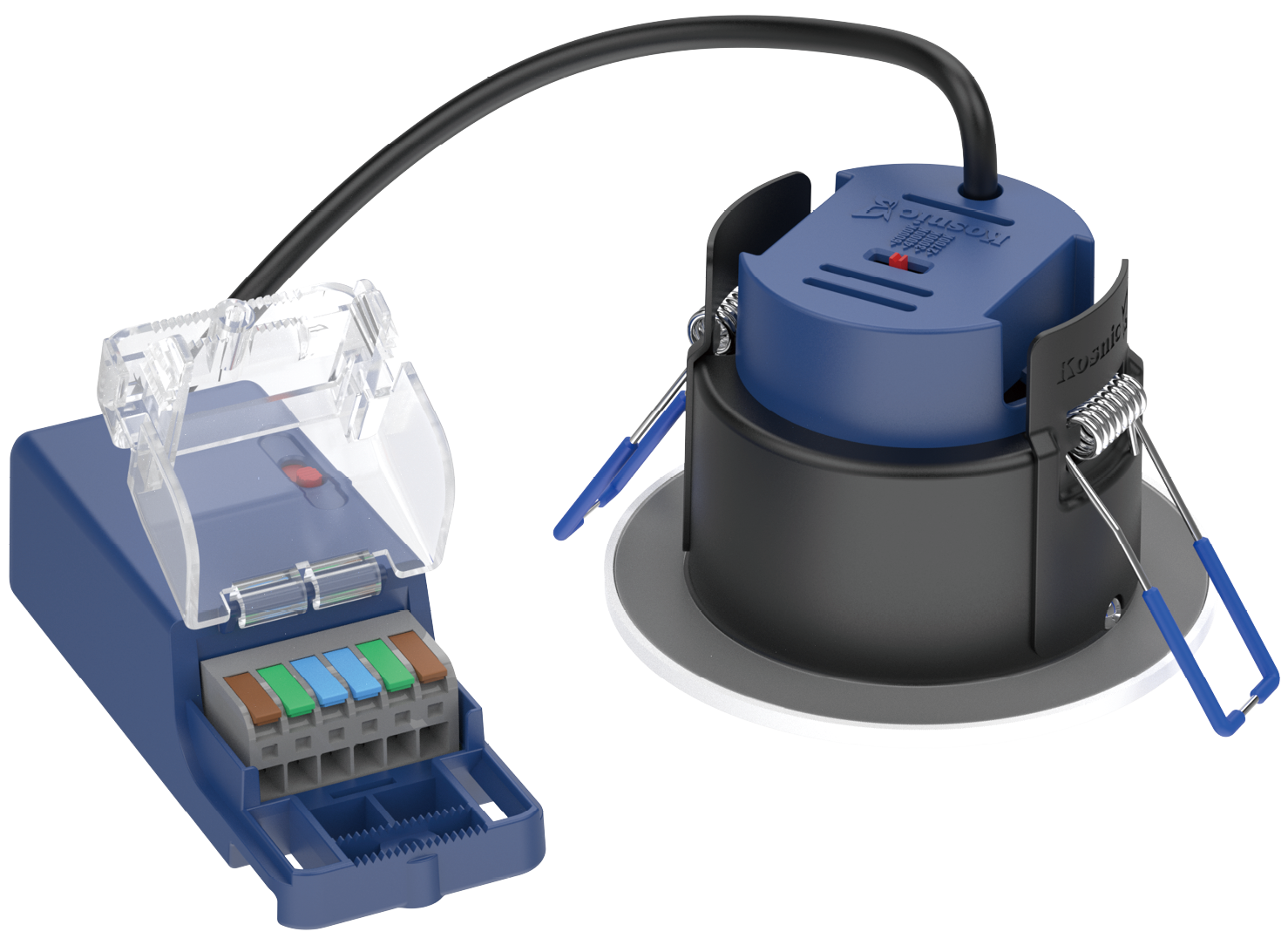

Mauna 3 Anti-Glare

Name: Mauna 3 Anti-Glare
SKU: MAU307AG
Availability: InStock

The Mauna Plus range as well as having the fire rating, can be installed under insulation and low void clearance. With wattage switching and CCT options. Also, anti-glare and tilting options available. With the magnetic bezels the Mauna III Plus range doesn’t put functionality at the cost of aesthetics.

Product Code: MAU307AG

Data Sheet

Installation Area

Surge Capacity

Dimensions

Driver Maximum Power

Wattage

Settable CCT

Lumens

Driver Output Current

Beam Angle

Cut-Out

Built-in Option

CCT

Colour / Finish

Input Voltage Supply

Driver Input Voltage

Mounting Option

Ambient Temperature Range

IK Rating

L80B10 Lifetime

L70B50 Lifetime

IP Rating

Driver IP Rating

Power Factor

Protection Rating

LS CRI

SDCM

Default Setting

Maximum Current Draw

Driver Output Voltage

Energy Class

Clear

KEY FEATURES

Switchable wattage and CCT (2700/3000/4000/6000k)
Optional add-on emergency kits, available in standard and self-test
Optional PIR sensors compatible with Uni-Remote
Integrated dimmable driver
Interchangeable magnetic bezels with different finishes
Can be installed under insulation layer
Compact size with void of 60mm
White and satin chrome bezel included
Coloured LENNEL push-wire terminals

GENERAL SPECIFICATIONS

Voltage:220-240Vac 50/60Hz

Driver Voltage:200-240Vac 50/60 Hz

Ambient Temp:-30°C to 50°C

IK Rating:IK07

Installation Area:Internal

L80B10 Lifetime:77,000 h

L70B50 Lifetime:122,000 h

IP Rating:IP65

Driver IP Rating:IP20

Power Factor:0.90(7W) 0.88(5W)

Protection Rating:Class I

LS CRI:82

SDCM:<6

Surge Capacity:2000V

TECHNICAL SUMMARY

Default Setting:3000K at 7W

Dimensions:62x∅91

Max Input Current:34 mA

Driver Max. power:5.9

Settable CCT:2700k, 3000k, 4000k, 6000k

CCT:2700K, 3000K, 4000K, 6000K

Lumen:600 lm

Driver Output Current:70 (5W), 94 (7W)

Driver Output Voltage:63

Beam Angle:55

Cut-Out:74mm

Energy Class:G
