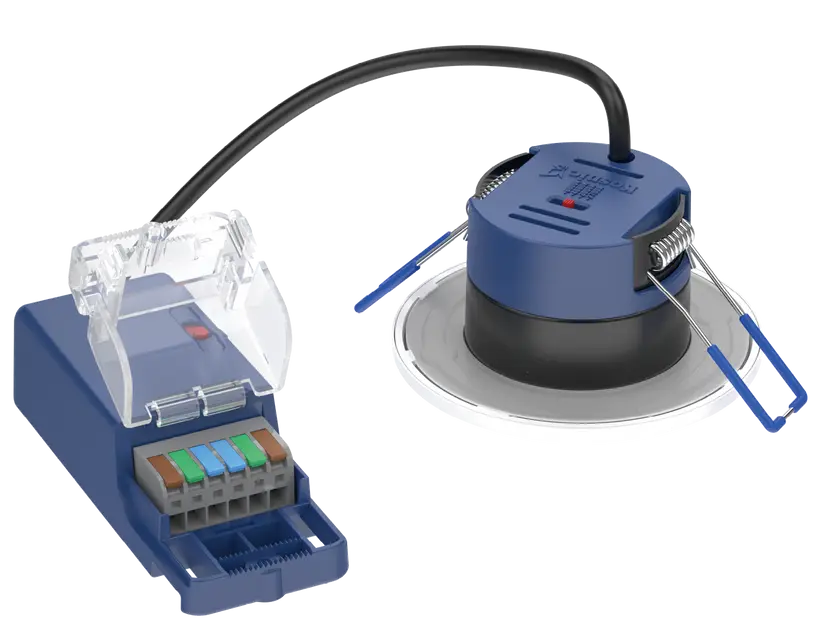

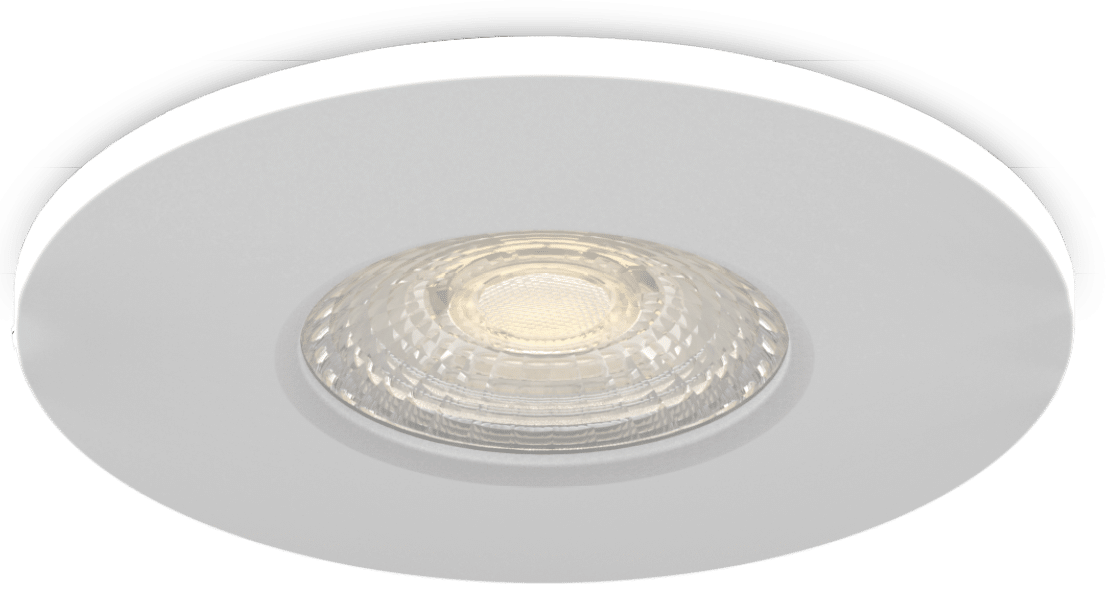

Mauna 3 Plus Fixed

Name: Mauna 3 Plus Fixed
SKU: MAU306PL
Availability: InStock

The Mauna Plus range as well as having the fire rating, ability to be installed under insulation, and low void clearance. With wattage switching and a CCT options. Also anti-glare, and tilting options. With the magnetic bezels the Mauna Plus range doesn’t put functionality at the cost of aesthetics.

Product Code: MAU306PL

Old Product Code: MAU206PL

Data Sheet

Installation Area

Dimensions

Wattage

Settable CCT

Lumens

Beam Angle

Built-in Option

Cut-Out

CCT

Input Voltage Supply

Colour / Finish

Ambient Temperature Range

Mounting Option

IK Rating

L80B10 Lifetime

L70B50 Lifetime

IP Rating

Protection Rating

LS CRI

Default Setting

Maximum Current Draw

Efficiency (lm/W)

Emergency Luminous Flux

Energy Class

Clear

KEY FEATURES

Integrated dimmable driver
Interchangeable magnetic bezels with different finishes
Can be installed under Insulation layer
Compact size with void of only 48mm
CCT switchable with 4 choices
Acoustically rated in accordance with BS EN ISO 10140-2:2021 and BS EN ISO 10140-3:2021

GENERAL SPECIFICATIONS

Voltage:220-240Vac 50/60Hz

Ambient Temp:-30°C to 50°C

IK Rating:IK07

Installation Area:Internal

L80B10 Lifetime:50,000 h

L70B50 Lifetime:50,000 h

IP Rating:IP65

Protection Rating:Class I

LS CRI:≥82

TECHNICAL SUMMARY

Default Setting:3000K at 6W

Dimensions:46x∅86

Max Input Current:30 mA

Settable CCT:2700k, 3000k, 4000k, 6000k

CCT:2700K, 3000K, 4000K, 6000K

Efficiency (lm/W):115 lm/W

Emergency Luminous Flux (lm):150 lm

Lumen:690 lm

Beam Angle:65

Cut-Out:∅64mm

Energy Class:F
