Mauna 3 Pro

Name: Mauna 3 Pro
SKU: MAU307PR
Availability: InStock

The Mauna Pro adds wattage switching with options for 5W or 7W settings. This is in addition to the features of the Mauna II, taking the list of features up to to an impressive: Magnetic bezels, fire rating, low void clearance, CCT switching, mains dimming, IP65 rating, and ability to be installed under installation.

Product Code: MAU307PR

Old Product Code: MAU208PR

Data Sheet

Installation Area

Dimensions

Wattage

Settable CCT

Lumens

Beam Angle

Built-in Option

Cut-Out

CCT

Input Voltage Supply

Colour / Finish

Ambient Temperature Range

Mounting Option

IK Rating

L80B10 Lifetime

L70B50 Lifetime

IP Rating

Power Factor

Protection Rating

LS CRI

SDCM

Surge Capacity

Default Setting

Energy Class

Clear

KEY FEATURES

High efficiency up to 134lm/W
Switchable wattage and CCT (2700K/3000K/4000K/6000K)
Optional add on emergency kits, available in standard and self-test
Optional PIR sensors compatible with Uni-Remote

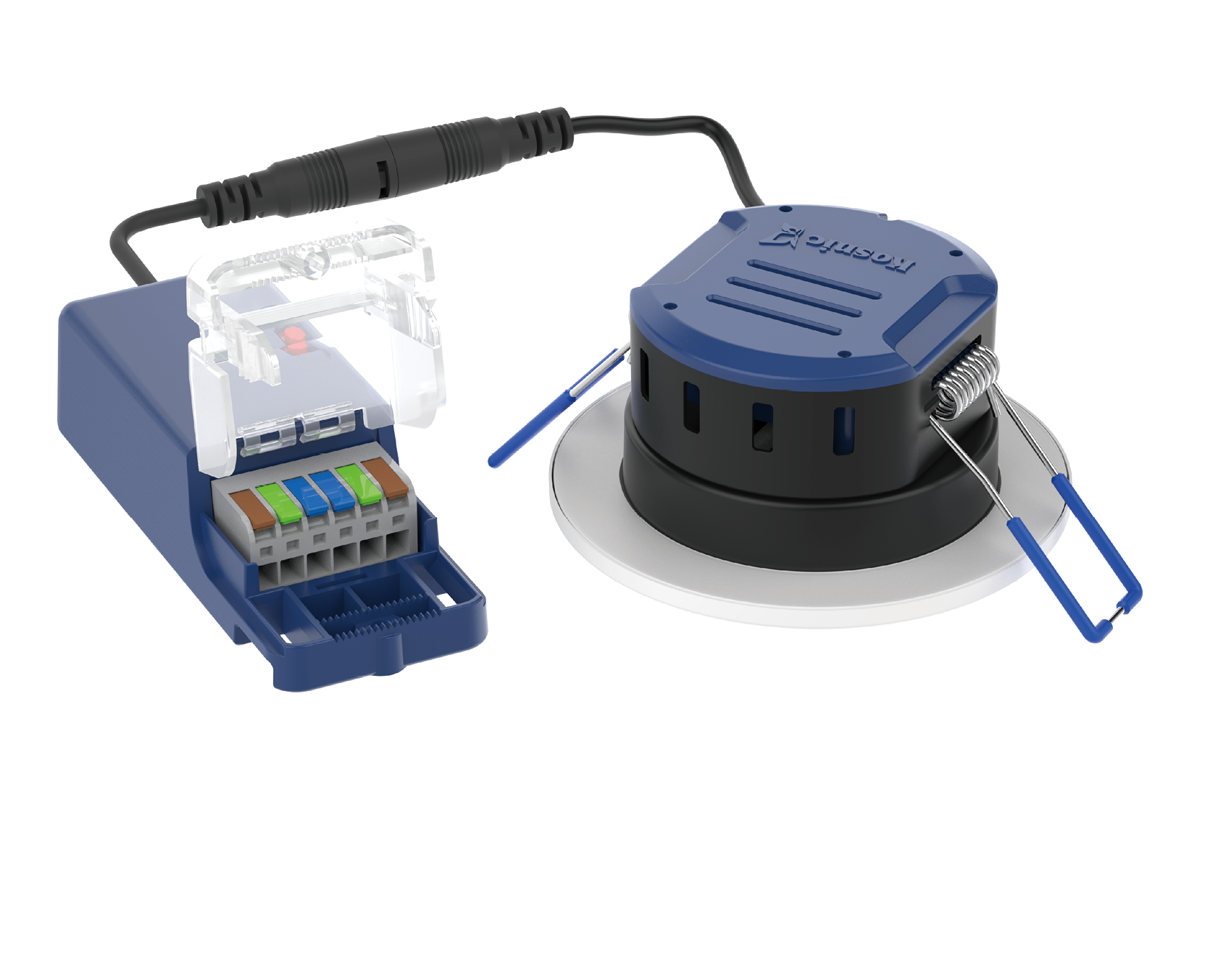

Independent driver and junction box for fast and easy connection
Dimmable
Can be installed under insulation

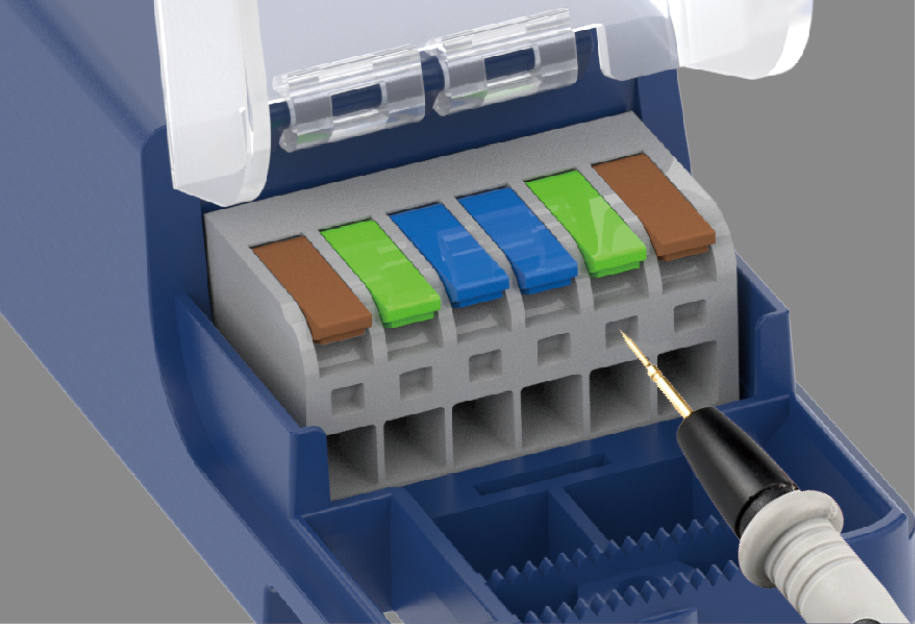

Coloured LENNEL push-wire terminals
Compact size with a void of only 39mm

GENERAL SPECIFICATIONS

Voltage:220-240Vac 50/60Hz

Ambient Temp:-30°C to 50°C

IK Rating:IK07

Installation Area:Internal

L80B10 Lifetime:80,000 h

L70B50 Lifetime:127,000 h

IP Rating:IP65

Power Factor:0.95

Protection Rating:Class II

LS CRI:>80

SDCM:<3

Surge Capacity:1000V

TECHNICAL SUMMARY

Default Setting:3000K at 7W

Dimensions:43x∅88

Settable CCT:2700k, 3000k, 4000k, 6000k

CCT:2700K, 3000K, 4000K, 6000K

Lumen:870 lm

Beam Angle:40

Cut-Out:68mm

Energy Class:E
