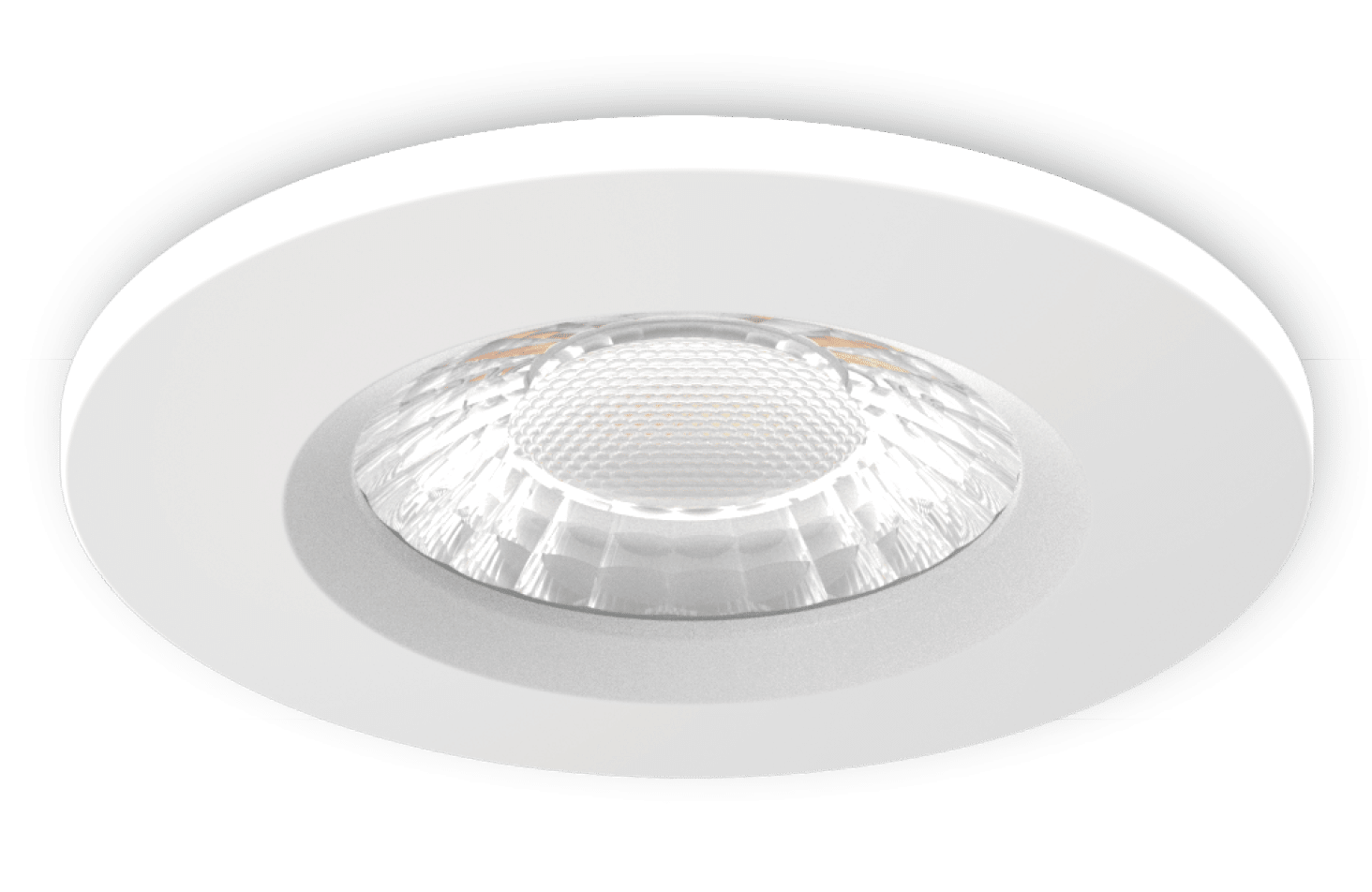

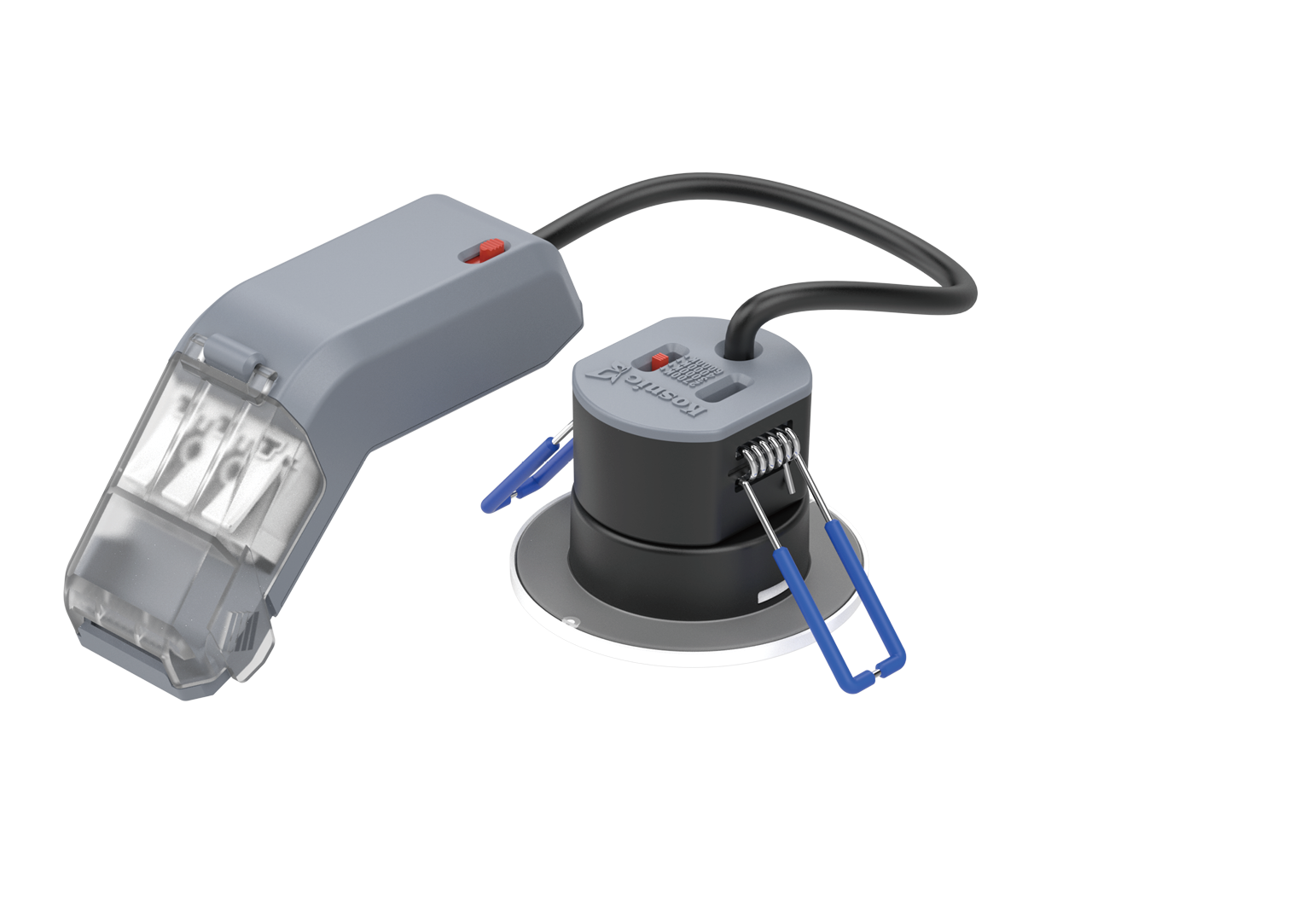

Mauna Mini

Name: Mauna Mini
SKU: MAUM06
Availability: InStock

The Mauna Mini is a compact size versatile wattage and CCT switchable fire rated downlights suitable for 30,60 and 90 minute applications and may be installed under insulation. With a choice of interchangeable bezels.

Product Code: MAUM06

Data Sheet LDT File

Installation Area

Dimensions

Driver Maximum Power

Wattage

Settable CCT

Lumens

Driver Output Current

Beam Angle

Cut-Out

Built-in Option

CCT

Colour / Finish

Input Voltage Supply

Driver Input Voltage

Mounting Option

Ambient Temperature Range

IK Rating

L80B10 Lifetime

L70B50 Lifetime

IP Rating

Driver IP Rating

Power Factor

Protection Rating

LS CRI

SDCM

Default Setting

Driver Dimensions

Maximum Current Draw

Efficiency (lm/W)

Maintained Luminous Flux

Driver Output Voltage

Energy Class

Clear

KEY FEATURES

Intergated dimmable driver
Interchangeable magnetic bezels wit different finishings
Can be installed under insulation layer with void of 47mm
Compact size
CCT switchable with 4 choices
Wattage switchable between 4W and 6W

GENERAL SPECIFICATIONS

Voltage:220-240Vac 50/60Hz

Driver Voltage:200-240Vac 50/60Hz

Ambient Temp:-30°C to 50°C

IK Rating:IK07

Installation Area:Internal

L80B10 Lifetime:78,000 h

L70B50 Lifetime:125,000 h

IP Rating:IP65

Driver IP Rating:IP20

Power Factor:0.88

Protection Rating:Class I

LS CRI:82

SDCM:<6

TECHNICAL SUMMARY

Default Setting:3000K at 6W

Dimensions:42x∅62

Driver Dimensions:106x35x58

Max Input Current:30 mA

Driver Max. power:5

Settable CCT:2700k, 3000k, 4000k, 6000k

CCT:2700K, 3000K, 4000K, 6000K

Efficiency (lm/W):125 lm/W

Emergency Luminous Flux (lm):150 lm

Lumen:680 lm

Driver Output Current:60/87

Driver Output Voltage:51-57

Beam Angle:45

Cut-Out:47

Energy Class:F
