Mauna PIR Sensor

Name: Mauna PIR Sensor
SKU: MAUPIR
Availability: InStock

The Mauna Fire-Rated PIR Sensor needs only a 40mm void clearance. IP65 rating and installable under insulation makes it a flexible application. The control mode can set hold time and daylight harvesting, with more options via the Universal Remote Control. With the same profile as the Mauna II all of the interchangeable bezels can be used.

Product Code: MAUPIR

Data Sheet

Installation Area

Dimensions

Wattage

Input Voltage Supply

Ambient Temperature Range

Cut-Out

Colour / Finish

IP Rating

Mounting Option

Protection Rating

Surge Capacity

Rated Power

Detection radius

Detection Angle

Clear

KEY FEATURES

IP65 Rated
Optional infrared remote control
BS 476 Part 21/BS EN1365-2 Fire-Rated to 30, 60 and 90 min.

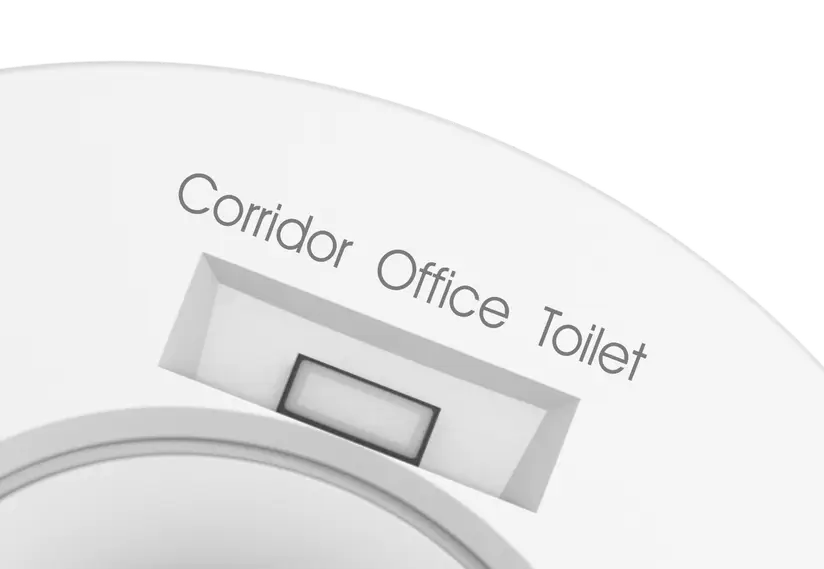

3 Pre-defined scene modes via dip switches under the bezel
Interchangeable magnetic bezels with different finishes
Can be installed under Insulation
Compact size

GENERAL SPECIFICATIONS

Voltage:220-240Vac 50/60Hz

Ambient Temp:-20°C to 40°C

Installation Area:Internal

IP Rating:IP65

Protection Rating:Class II

Surge Capacity:50A (50% Ipeak, twidth = 500uS, 230Vac full load, cold start)

TECHNICAL SUMMARY

Dimensions:51x∅88

Rated Power (W):0 W

Detection Radius:3.5 m

Detection Angle:120°, 120⁰

Cut-Out:∅70mm, 70
