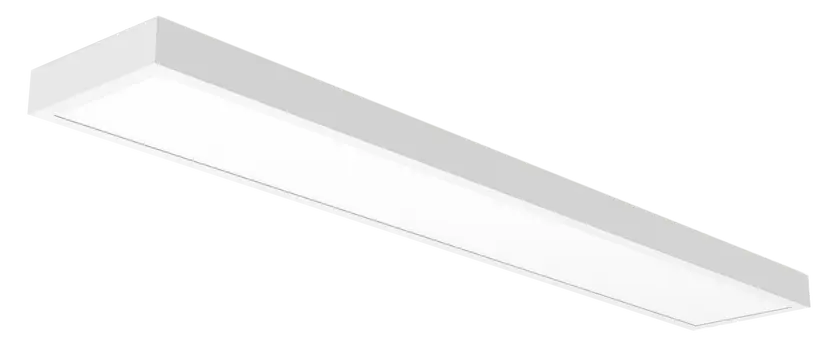

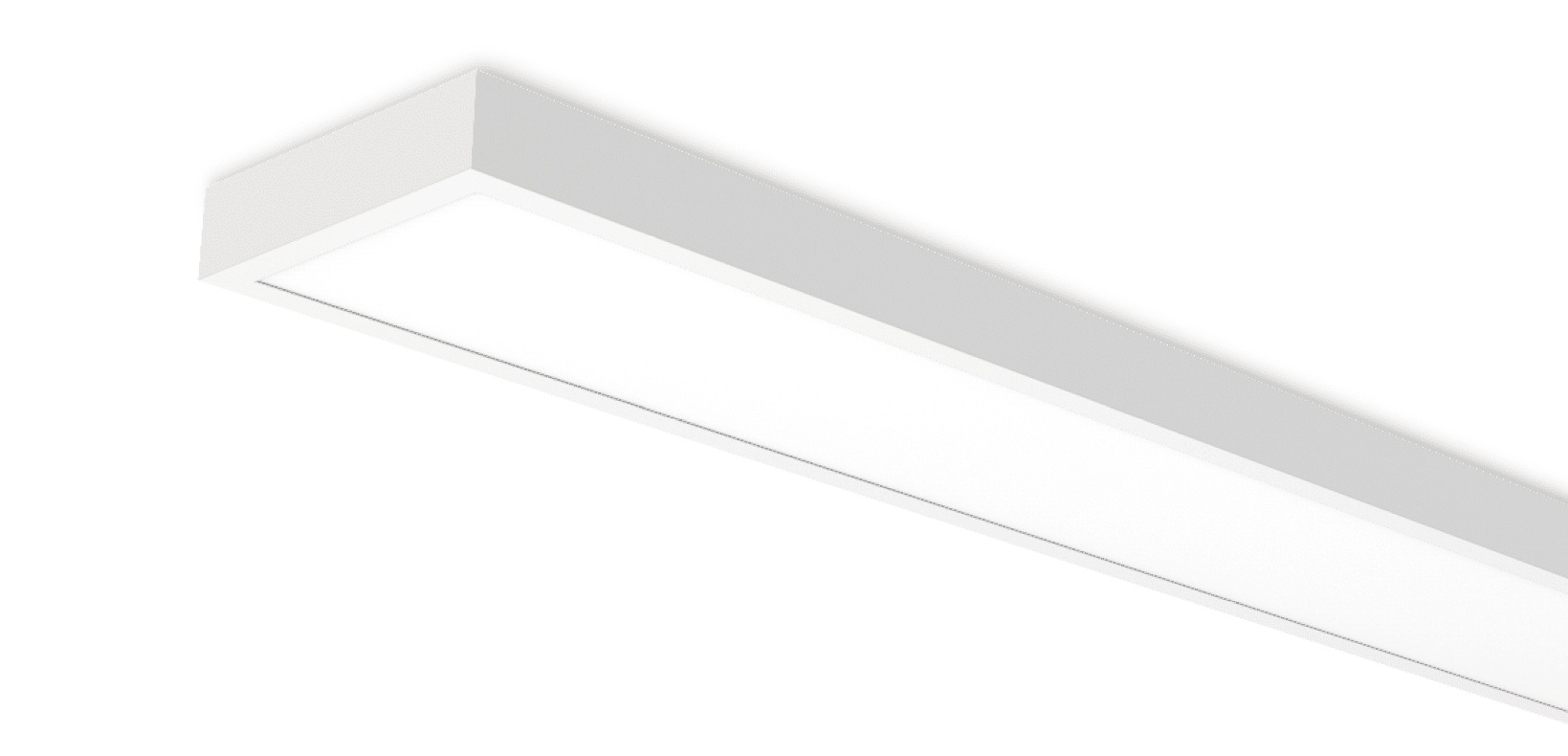

Milo

Name: Milo
SKU: MIL4F27-W40
Availability: InStock

The Kosnic Milo LED battens are replacements for standard ceiling battens. These advanced battens are suitable for all areas, including visually demanding non-transient task areas such as offices and educational premises where users require uniform light to maintain well-being.

Product Code: MIL4F27-W40

Old Product Code: KPTBTN/SUS3

Data Sheet LDT File

Installation Area

Dimensions

Driver Maximum Power

Lumens

Built-in Option

Driver Output Current

Wattage

CCT

Input Voltage Supply

Driver Input Voltage

Ambient Temperature Range

Colour / Finish

IK Rating

Length

L80B10 Lifetime

L70B50 Lifetime

IP Rating

Power Factor

Protection Rating

Driver Protection Rating

LS CRI

SDCM

Default Setting

Driver Dimensions

Maximum Current Draw

Rated Power

Efficiency (lm/W)

Emergency Luminous Flux

Driver Output Voltage

Energy Class

Clear

KEY FEATURES

Designed to replace the popular twin T8 surface modular
DALI, 1-10V (0-10V) and PUSH alternative driver available
Flicker-free driver as standard
Plug & play emergency module
BESA box fitting points

GENERAL SPECIFICATIONS

Voltage:220-240Vac 50/60Hz

Driver Voltage:220-240Vac 50/60Hz

Ambient Temp:-20°C to 50°C

IK Rating:IK04

Installation Area:Internal

L80B10 Lifetime:50,000 h

L70B50 Lifetime:60,000 h

IP Rating:IP20

Power Factor:>0.94

Protection Rating:Class III

Driver Protection Rating:Class II

LS CRI:≥82

SDCM:<6

TECHNICAL SUMMARY

Default Setting:4000K at 27W, 4000K at 36W

Dimensions:1255x310x50, 1555x310x50

Driver Dimensions:118x42x28

Max Input Current:124 mA, 165 mA

Rated Power (W):27 W, 36 W

Driver Max. power:28 W, 36 W

CCT:4,000K

Efficiency (lm/W):104 lm/W, 111 lm/W

Emergency Luminous Flux (lm):480 lm

Lumen:2,800 lm, 4,000 lm

Driver Output Current:700, 900

Driver Output Voltage:30-40

Energy Class:E, F
