Nachi

Name: Nachi
SKU: NCH5F42-BLK
Availability: InStock

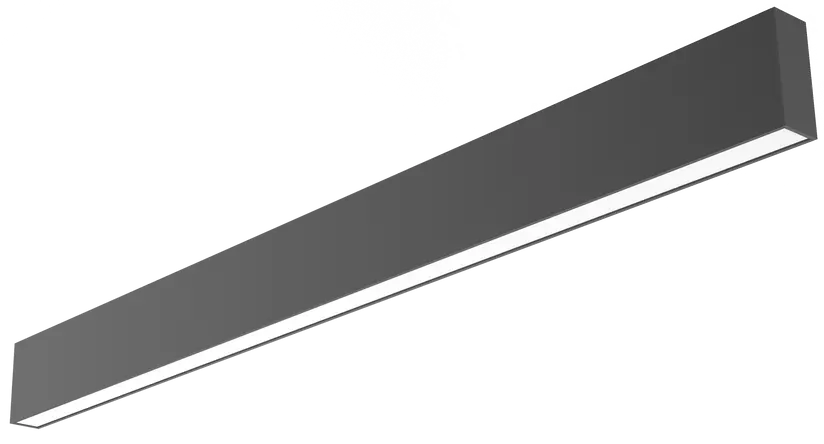

The Nachi’s ultra slim design features top mounted CCT switches for both the up and down lights, allowing for ether to be switched off if desired. Available in both black and white with an optional emergency module the Nichi ultra slim sleek design hold a lot of features.

Product Code: NCH5F42-BLK

Data Sheet LDT File

Installation Area

Dimensions

Settable CCT

Lumens

Built-in Option

Wattage

Beam Angle

CCT

Input Voltage Supply

Ambient Temperature Range

Colour / Finish

IK Rating

Length

L80B10 Lifetime

L70B50 Lifetime

IP Rating

Power Factor

Protection Rating

LS CRI

SDCM

Default Setting

Maximum Current Draw

Rated Power

Efficiency (lm/W)

Emergency Luminous Flux

Energy Class

Clear

KEY FEATURES

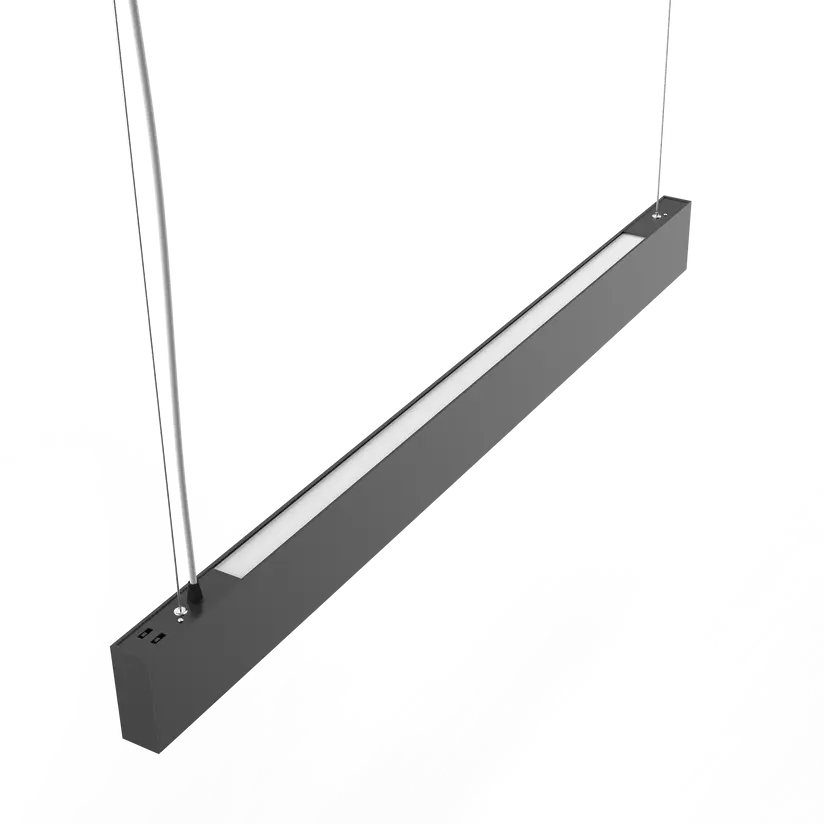

Available in black and white suspension kit provided
Up and Down luminous function
The power supply and other built-in components are fixed on the gear tray

GENERAL SPECIFICATIONS

Voltage:220-240Vac 50/60Hz

Ambient Temp:-15°C to 50°C

IK Rating:IK02

Installation Area:Internal

L80B10 Lifetime:50,000 h

L70B50 Lifetime:50,000 h

IP Rating:IP20

Power Factor:>0.94, 0.95

Protection Rating:Class I

LS CRI:≥82, 82

SDCM:<6

TECHNICAL SUMMARY

Default Setting:4000K at 36W

Dimensions:1422x40x100

Max Input Current:192 mA

Rated Power (W):36 W

Settable CCT:3000k, 4000k, 6000k

CCT:3000K, 4000K, 6000K

Efficiency (lm/W):105 lm/W, 96 lm/W

Emergency Luminous Flux (lm):350 lm

Lumen:3,450 lm, 3,780 lm

Beam Angle:100

Energy Class:F
