Napa

Name: Napa
SKU: NAP6IN20-WHT
Availability: InStock

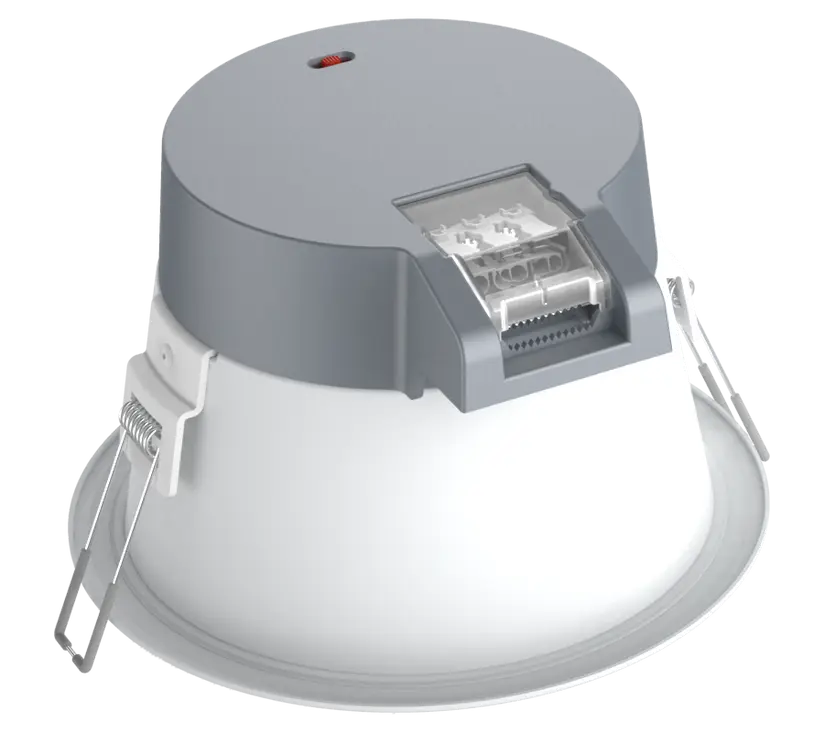

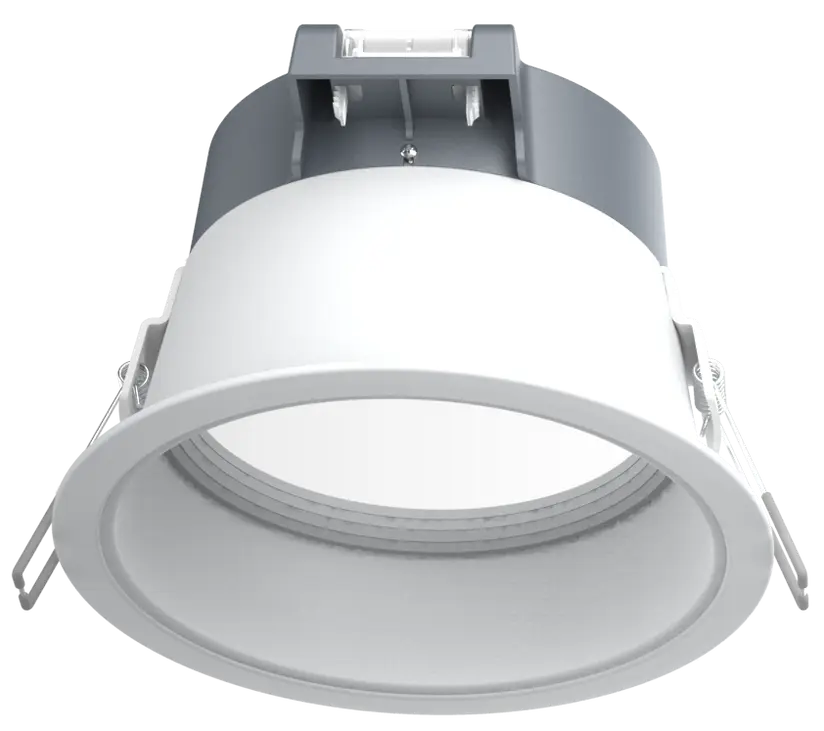

The Kosnic Napa LED Commercial Downlight has a switchable colour temperature function so that the installer can select 3000k, 4000k or 6000k. The downlight is supplied in white but has the option of silver or polished chrome reflectors and is compatible with Kosnic emergency modules.

Product Code: NAP6IN20-WHT

Old Product Code: KCDL20FR44/SCT-WHT

Data Sheet LDT File

Installation Area

Dimensions

Settable CCT

Lumens

Built-in Option

Beam Angle

Wattage

Cut-Out

CCT

Input Voltage Supply

Colour / Finish

Ambient Temperature Range

Mounting Option

IK Rating

L80B10 Lifetime

L70B50 Lifetime

IP Rating

Power Factor

Protection Rating

LS CRI

Default Setting

Maximum Current Draw

Rated Power

Efficiency (lm/W)

Emergency Luminous Flux

Energy Class

Clear

KEY FEATURES

Integrated dimmable driver
Switchable CCT (3000K/4000K/6000K)
Compatible with Kosnic's mains emergency module
Optional silver and polished chrome reflectors
High lumen output
Low glare
Flicker free

GENERAL SPECIFICATIONS

Voltage:220-240Vac 50/60Hz

Ambient Temp:-20°C to 50°C

IK Rating:IK07

Installation Area:Internal

L80B10 Lifetime:50,000 h

L70B50 Lifetime:50,000 h

IP Rating:IP44

Power Factor:0.96, 0.97

Protection Rating:Class I

LS CRI:≥82

TECHNICAL SUMMARY

Default Setting:4000K at 20W, 4000K at 30W

Dimensions:110x∅175, 120x∅217

Max Input Current:136 mA, 90 mA

Rated Power (W):20 W, 30 W

Settable CCT:3000k, 4000k, 6000k

CCT:3000K, 4000K, 6000K

Efficiency (lm/W):100 lm/W

Emergency Luminous Flux (lm):200 lm

Lumen:2,000 lm, 3,000 lm

Beam Angle:95

Cut-Out:∅150mm, ∅200mm

Energy Class:F
