Napa 2

Name: Napa 2
SKU: NAP26IN20-SLV
Availability: InStock

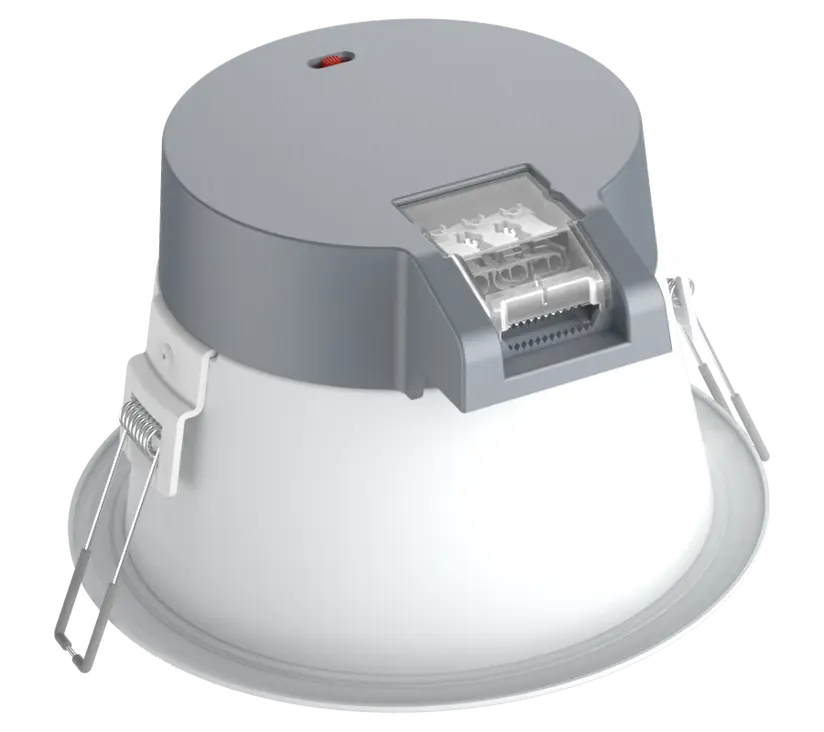

The Napa LED Commercial Downlight has a switchable wattage and colour temperature function so that the installer can choose the perfect ambience. It has an ultra-high energy efficiency of up to 150lm/W, saving you energy and money. The downlight is compatible with Kosnic emergency modules.

Product Code: NAP26IN20-SLV

Data Sheet

Installation Area

Dimensions

Driver Maximum Power

Wattage

Settable CCT

Lumens

Driver Output Current

Beam Angle

Cut-Out

CCT

Input Voltage Supply

Driver Input Voltage

Colour / Finish

Ambient Temperature Range

IK Rating

L80B10 Lifetime

L70B50 Lifetime

IP Rating

Power Factor

Protection Rating

Driver Protection Rating

LS CRI

SDCM

Surge Capacity

Default Setting

Driver Dimensions

Maximum Current Draw

Efficiency (lm/W)

Emergency Luminous Flux

Driver Output Voltage

Energy Class

Clear

KEY FEATURES

High efficiency up to 150lm/W

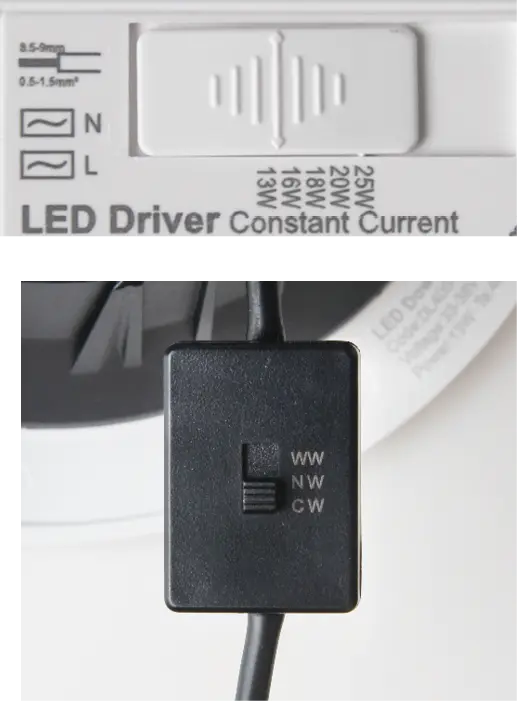

Switchable wattage and CCT (3000/4000/5700K)
Optional add-on emergency kits, available in standard and self-test
Optional plug-in emergency modules, available in standard, self-test and DALI
DALI, 0-10V and PUSH dimming alternate driver available
Low glare
SDCM<3

GENERAL SPECIFICATIONS

Voltage:220-240Vac 50/60Hz

Driver Voltage:220-240 Vac 50/60 Hz

Ambient Temp:-20°C to 50°C

IK Rating:IK04

Installation Area:Internal

L80B10 Lifetime:79,000 h

L70B50 Lifetime:126,000 h

IP Rating:IP54

Power Factor:0.97

Protection Rating:Class III

Driver Protection Rating:Class II

LS CRI:80

SDCM:<6

Surge Capacity:1000V

TECHNICAL SUMMARY

Default Setting:4000K at 20W, 4000K at 25W

Dimensions:105x∅190, 118x∅235

Driver Dimensions:103x39x28

Max Input Current:112 mA, 90 mA

Driver Max. power:20, 25

Settable CCT:3000k, 4000k, 5700k

CCT:3000K, 4000K, 5700K

Efficiency (lm/W):150 lm/W

Emergency Luminous Flux (lm):500 lm

Lumen:2,800 lm, 3,620 lm

Driver Output Current:230, 290, 360, 420, 500, 300, 400, 450, 500, 620

Driver Output Voltage:30-40

Beam Angle:60

Cut-Out:160, 200

Energy Class:D
