Napa Pro

Name: Napa Pro
SKU: NAPP4IN12-SLV
Availability: InStock

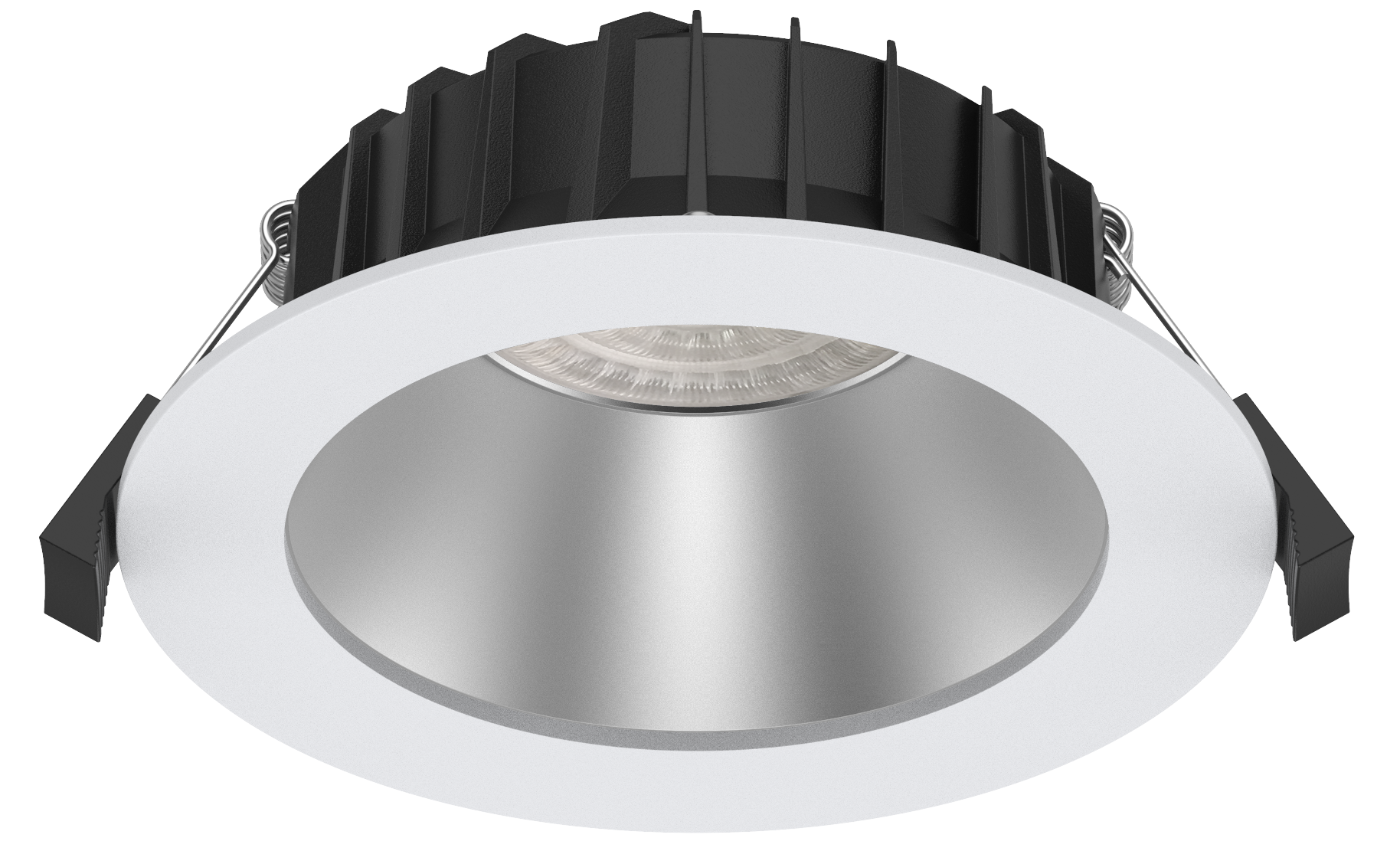

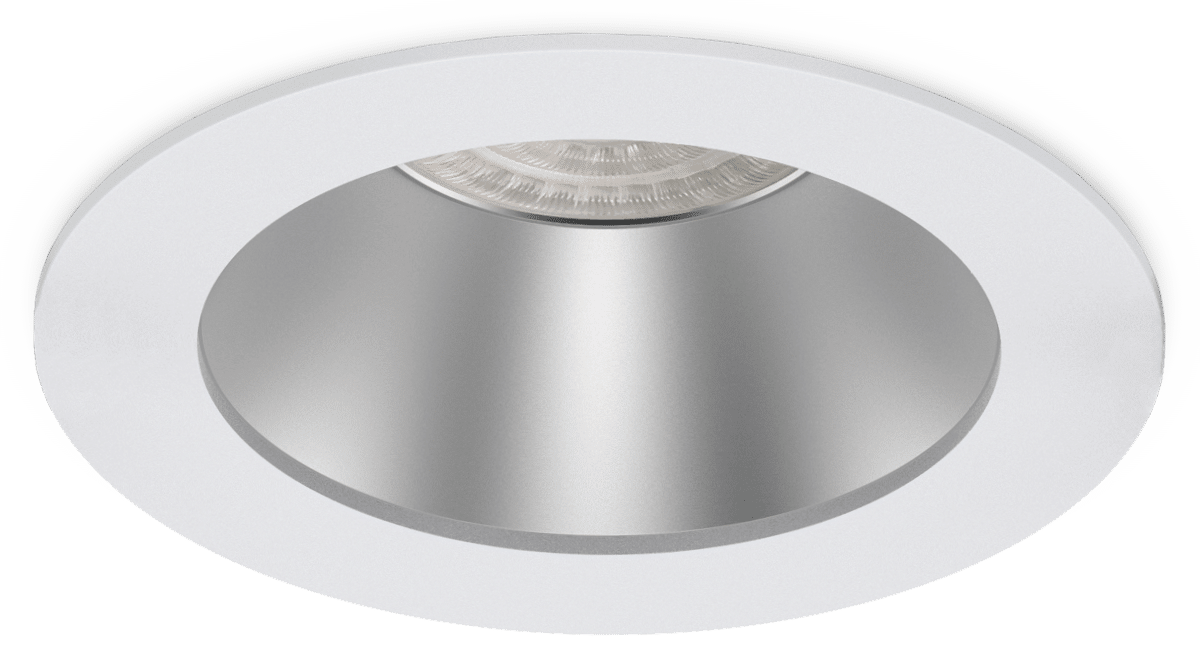

Napa Pro LED Commercial Downlight with a range of power settings and switchable colour temperature.

Product Code: NAPP4IN12-SLV

Data Sheet LDT File

Installation Area

Surge Capacity

Dimensions

Driver Maximum Power

Wattage

Settable CCT

Driver Output Current

Beam Angle

Cut-Out

Built-in Option

CCT

Input Voltage Supply

Colour / Finish

Driver Input Voltage

Ambient Temperature Range

Mounting Option

IK Rating

L80B10 Lifetime

L70B50 Lifetime

IP Rating

Protection Rating

LS CRI

SDCM

Default Setting

Driver Dimensions

Maximum Current Draw

Efficiency (lm/W)

Maintained Luminous Flux

Driver Output Voltage

Energy Class

Clear

KEY FEATURES

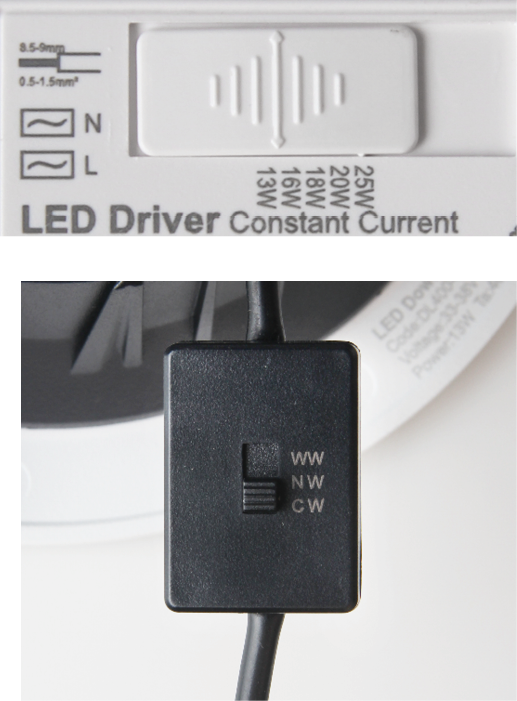

Switchable wattage and CCT (3000/4000/5700K)
Optional add-on emergency kits, available in standard and self-test
Optional plug-in emergency modules, available in standard, self-test and DALI
DALI, 0-10V and PUSH dimming alternate driver available
Surface-mount kits are available
Low glare, UGR<19
SDCM<3

GENERAL SPECIFICATIONS

Voltage:220-240Vac 50/60Hz

Driver Voltage:220-240Vac 50/60Hz

Ambient Temp:-20°C to 50°C

IK Rating:IK04

Installation Area:Internal

L80B10 Lifetime:78,000 h

L70B50 Lifetime:125,000 h

IP Rating:IP54

Protection Rating:Class II

LS CRI:82

SDCM:<6

Surge Capacity:500V

TECHNICAL SUMMARY

Default Setting:4000K at 12W, 4000K at 24W

Dimensions:55x∅145, 61x∅190, 61x∅228

Driver Dimensions:103x39x28

Max Input Current:110 mA, 55 mA

Driver Max. power:12, 25

Settable CCT:3000k, 4000k, 5700k

CCT:3000K, 4000K, 5700K

Efficiency (lm/W):130 lm/W, 135 lm/W

Emergency Luminous Flux (lm):320 lm

Driver Output Current:150/200/250/300, 300/400/450/500/620

Driver Output Voltage:30-40

Beam Angle:60

Cut-Out:∅125, ∅165, ∅205

Energy Class:D
