Nevis

Name: Nevis
SKU: NEV27-SCT
Availability: InStock

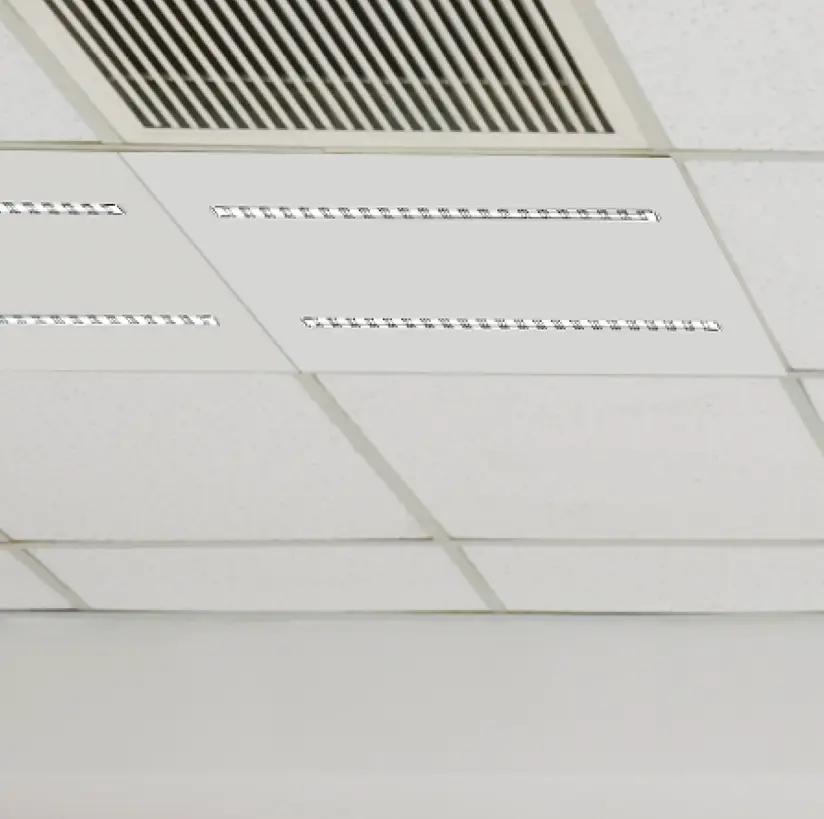

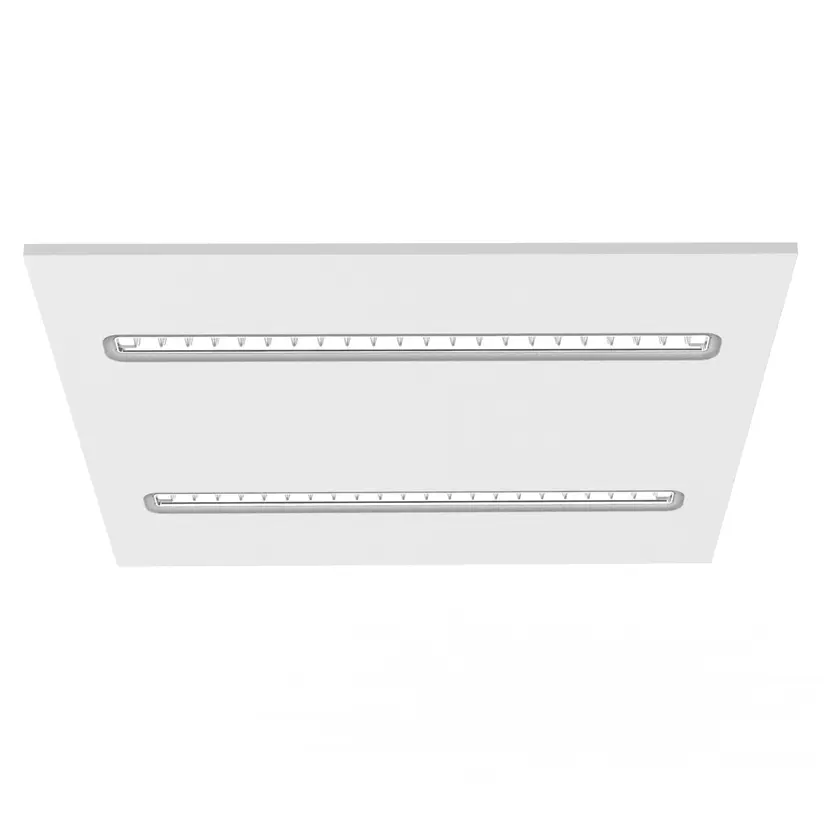

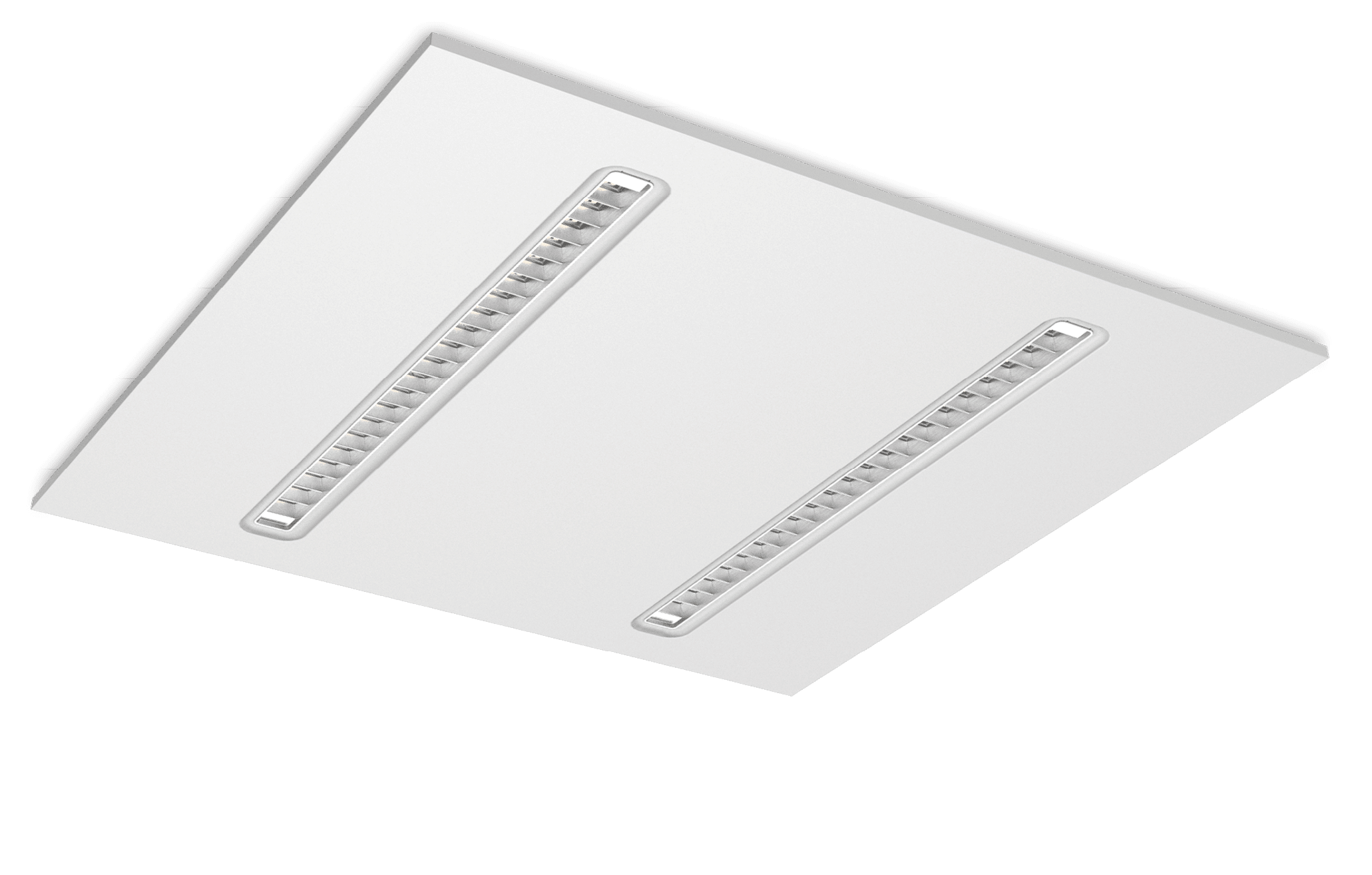

The Nevis twin strip LED panel provides a unique appearance, with low glare and a flicker free driver as standard. CCT switching and can be fitted with a DALI and 0-10v driver. Designed for CAT 2 replacements, it fits the standard 600mm by 600mm ceiling grid but can also be suspended.

Product Code: NEV27-SCT

Data Sheet LDT File

Installation Area

Surge Capacity

Dimensions

Driver Maximum Power

Settable CCT

Lumens

Driver Output Current

Beam Angle

Built-in Option

Wattage

CCT

Input Voltage Supply

Colour / Finish

Driver Input Voltage

Ambient Temperature Range

Mounting Option

IK Rating

L80B10 Lifetime

L70B50 Lifetime

IP Rating

Power Factor

Protection Rating

Driver Protection Rating

LS CRI

SDCM

Default Setting

Driver Dimensions

Maximum Current Draw

Rated Power

Efficiency (lm/W)

Emergency Luminous Flux

Driver Output Voltage

Energy Class

Clear

KEY FEATURES

Switchable CCT (3000K/4000K/5000K)
Low glare UGR<16
Supplied with flicker-free DC driver as standard
Optional DALI, 1-10V (0-10V) driver
CAT 2 replacement

GENERAL SPECIFICATIONS

Voltage:220-240Vac 50/60Hz

Driver Voltage:220-240Vac 50/60Hz

Ambient Temp:-20°C to 50°C

IK Rating:IK04

Installation Area:Internal

L80B10 Lifetime:111,000 h

L70B50 Lifetime:177,000 h

IP Rating:IP20

Power Factor:0.95

Protection Rating:Class III

Driver Protection Rating:Class II

LS CRI:82

SDCM:<6

Surge Capacity:1000V

TECHNICAL SUMMARY

Default Setting:4000K at 27W

Dimensions:595x595x20

Driver Dimensions:118x42x28

Max Input Current:124 mA

Rated Power (W):27 W

Driver Max. power:28 W

Settable CCT:3000k, 4000k, 5000k

CCT:3000K, 4000K, 5000K

Efficiency (lm/W):126 lm/W

Emergency Luminous Flux (lm):550 lm

Lumen:3,400 lm

Driver Output Current:700

Driver Output Voltage:30-40

Beam Angle:65

Energy Class:D
