Nimbo

Name: Nimbo
SKU: NIM60-SCT
Availability: InStock

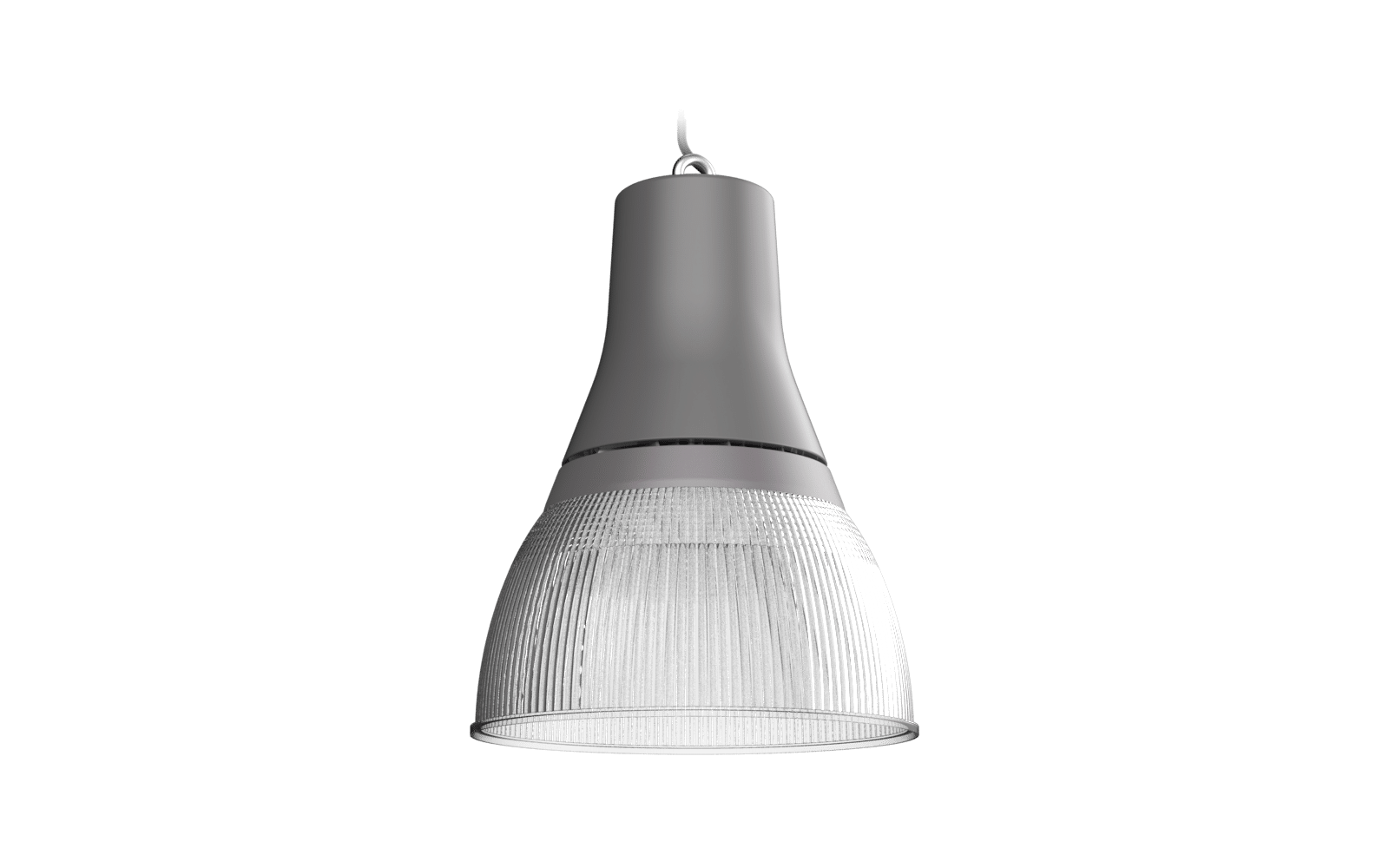

Nimbo High Bay Luminaire is designed for use in general industrial areas, manufacturing, warehousing, leisure facilities and retail environments.

Product Code: NIM60-SCT

Data Sheet LDT File

Installation Area

Surge Capacity

Dimensions

Wattage

Settable CCT

Lumens

Built-in Option

CCT

Beam Angle

Input Voltage Supply

Ambient Temperature Range

Colour / Finish

IK Rating

L80B10 Lifetime

L70B50 Lifetime

IP Rating

Power Factor

Protection Rating

LS CRI

SDCM

Default Setting

Maximum Current Draw

Efficiency (lm/W)

Maintained Luminous Flux

Energy Class

Clear

KEY FEATURES

High efficiency up to 140lm/W

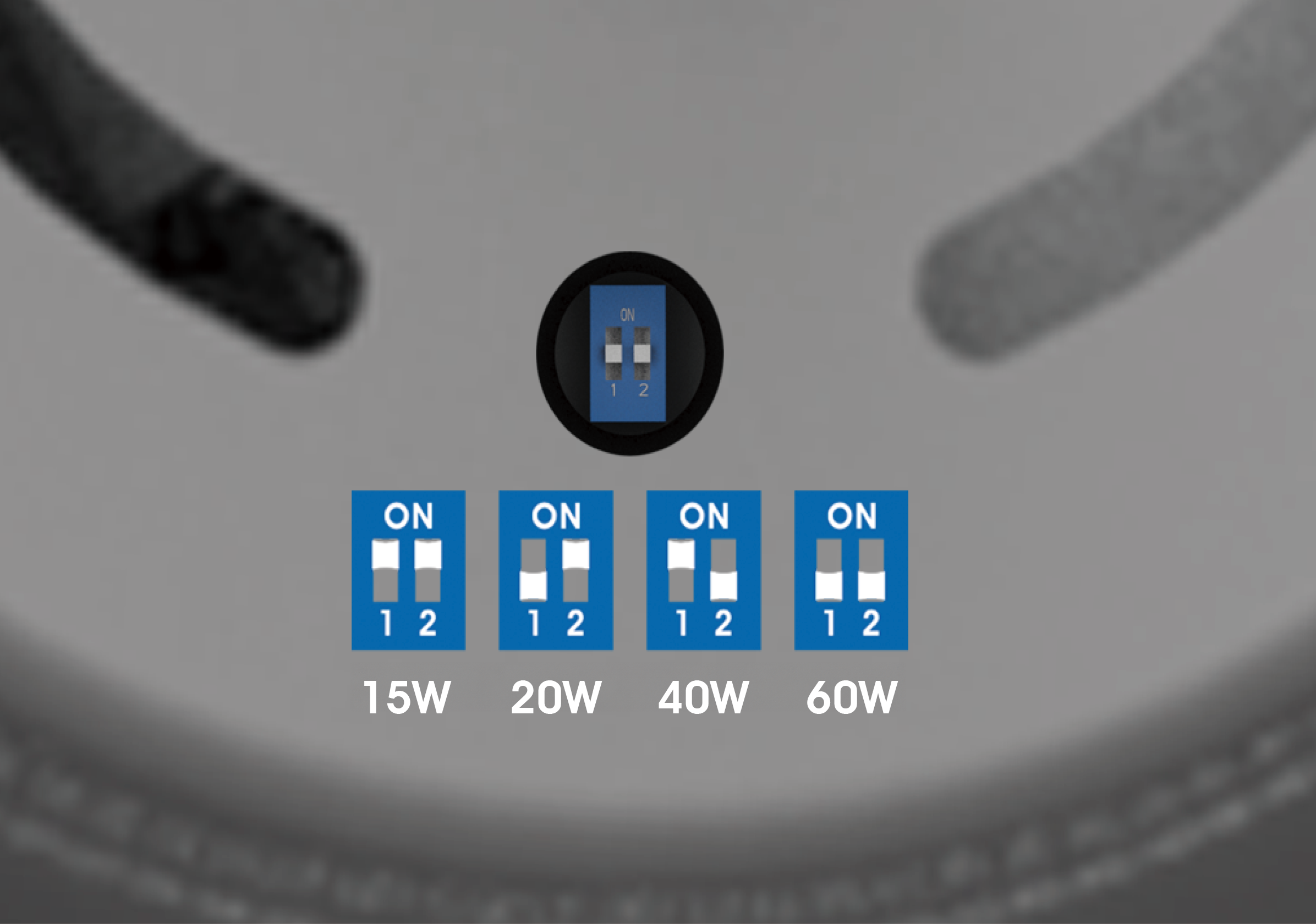

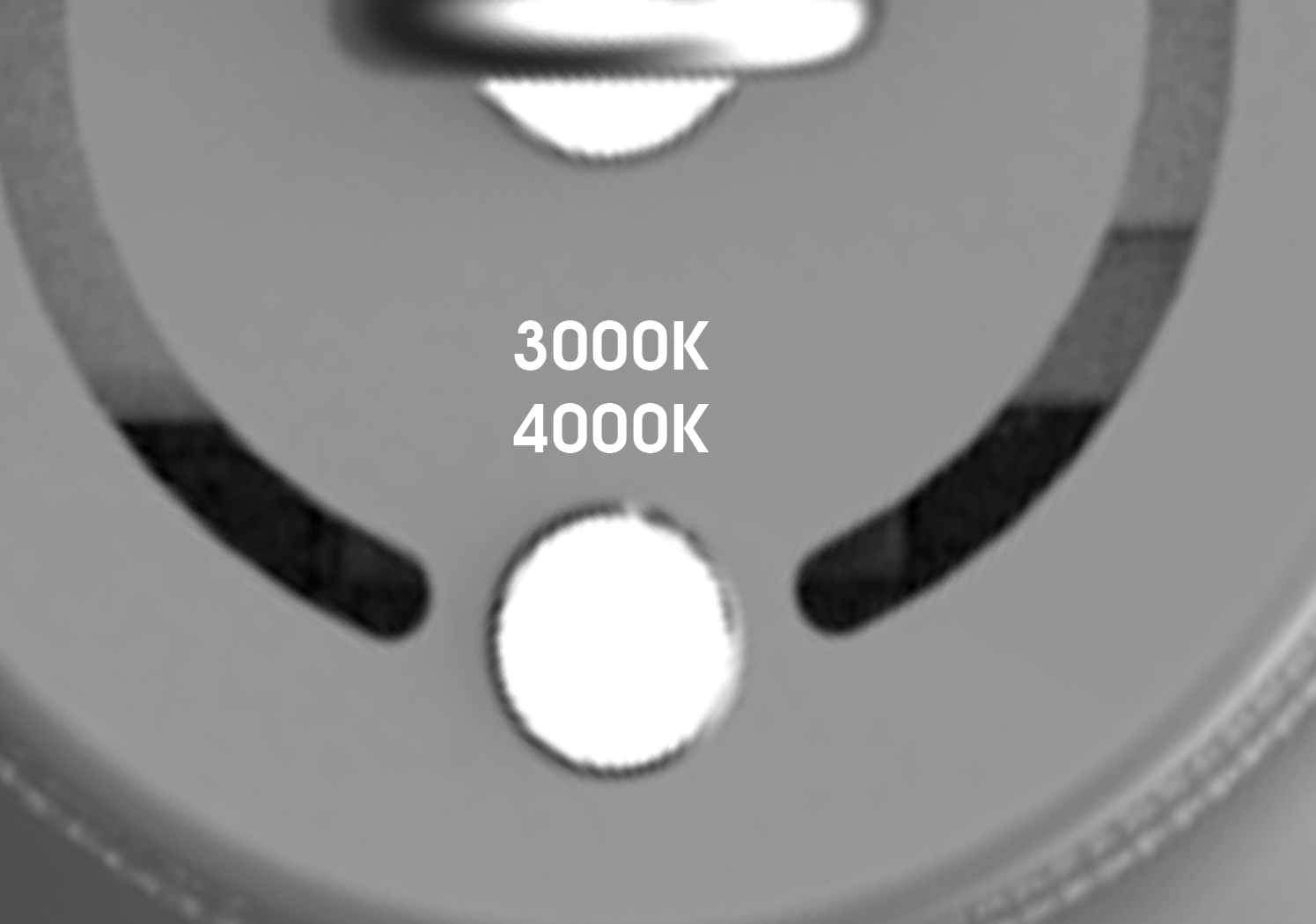

Switchable wattage and CCT (3000/4000K)
DALI dimming alternative driver available
Available in PC or aluminium shade
Diecast aluminium
Vandal resistant (IK08)
Reflector included
Low glare, UGR <19 for 15W/25W outputs, UGR<22 for 40W/60W outputs

GENERAL SPECIFICATIONS

Voltage:220-240Vac 50/60Hz

Ambient Temp:-20°C to 50°C

IK Rating:IK08

Installation Area:Internal and External

L80B10 Lifetime:54,000 h

L70B50 Lifetime:54,000 h

IP Rating:IP20

Power Factor:>0.80, >0.90

Protection Rating:Class I

LS CRI:82

SDCM:<3, <6

Surge Capacity:2000V

TECHNICAL SUMMARY

Default Setting:4000K at 60W

Dimensions:456x∅330

Max Input Current:275 mA

Settable CCT:3000k, 4000k

CCT:3000K, 4000K

Efficiency (lm/W):140 lm/W

Emergency Luminous Flux (lm):250 lm

Lumen:8,400 lm

Beam Angle:90

Energy Class:D
