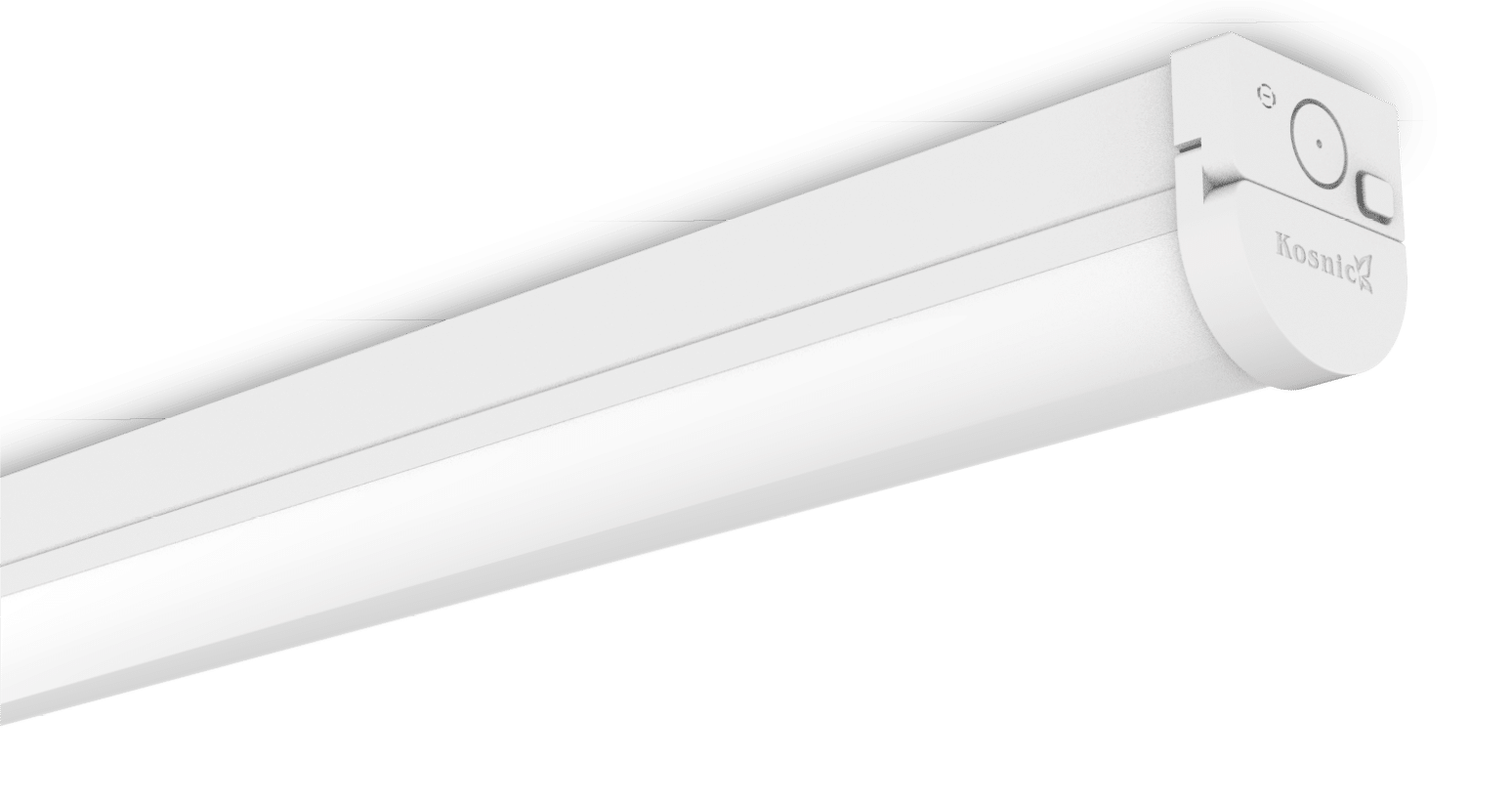

Niva Go

Name: Niva Go
SKU: NIVG4FS18-W40
Availability: InStock

The Niva Go provides a simplified option in the Niva range. With all the easy integration features of the Niva range the option for a plug-in emergency and sensor module are still available, the only difference is the Niva Go comes in fixed wattages and only a 4000K CCT.

Product Code: NIVG4FS18-W40

Data Sheet LDT File

Installation Area

Dimensions

Built-in Option

Wattage

Lumens

CCT

Input Voltage Supply

Ambient Temperature Range

IK Rating

Colour / Finish

L80B10 Lifetime

L70B50 Lifetime

Length

IP Rating

Power Factor

Protection Rating

LS CRI

SDCM

Default Setting

Maximum Current Draw

Rated Power

Efficiency (lm/W)

Maintained Luminous Flux

Energy Class

Clear

KEY FEATURES

High efficiency up to 150lm/W
Optional plug-in emergency module available
For single and twin tube batten replacement
20mm Conduit entry
BESA box fitting points
Easy installation with press and release end caps to open the cover

GENERAL SPECIFICATIONS

Voltage:220-240Vac 50/60Hz

Ambient Temp:-20°C to 50°C

IK Rating:IK08

Installation Area:Internal

L80B10 Lifetime:110,000 h

L70B50 Lifetime:175,000 h

IP Rating:IP20

Power Factor:0.91, 0.96

Protection Rating:Class I

LS CRI:82

SDCM:<6

TECHNICAL SUMMARY

Default Setting:63W

Dimensions:1170x61x71, 1470x61x71, 1734x61x71

Max Input Current:122 mA, 163 mA, 199 mA, 285 mA, 86 mA

Rated Power (W):18 W, 27 W, 36 W, 44 W

CCT:4,000K

Efficiency (lm/W):146 lm/W, 150 lm/W, 152 lm/W

Emergency Luminous Flux (lm):500 lm

Lumen:2,700 lm, 4,100 lm, 5,400 lm, 6,400 lm, 9,200 lm

Energy Class:D
