Ossa 3

Name: Ossa 3
SKU: OSS318-SCT
Availability: InStock

The Ossa is a slim bulkhead with integrated LED tray offering a low maintenance solution to lighting for all areas. With switchable CCT and different wattage settings to meet your different ambient needs.

Product Code: OSS318-SCT

Data Sheet

Installation Area

Protection Rating

Dimensions

Wattage

Settable CCT

Lumens

Built-in Option

CCT

Input Voltage Supply

Ambient Temperature Range

Colour / Finish

IK Rating

L80B10 Lifetime

Mounting Option

L70B50 Lifetime

IP Rating

Power Factor

LS CRI

SDCM

Default Setting

Maximum Current Draw

Efficiency (lm/W)

Emergency Luminous Flux

Maintained Luminous Flux

Energy Class

Clear

KEY FEATURES

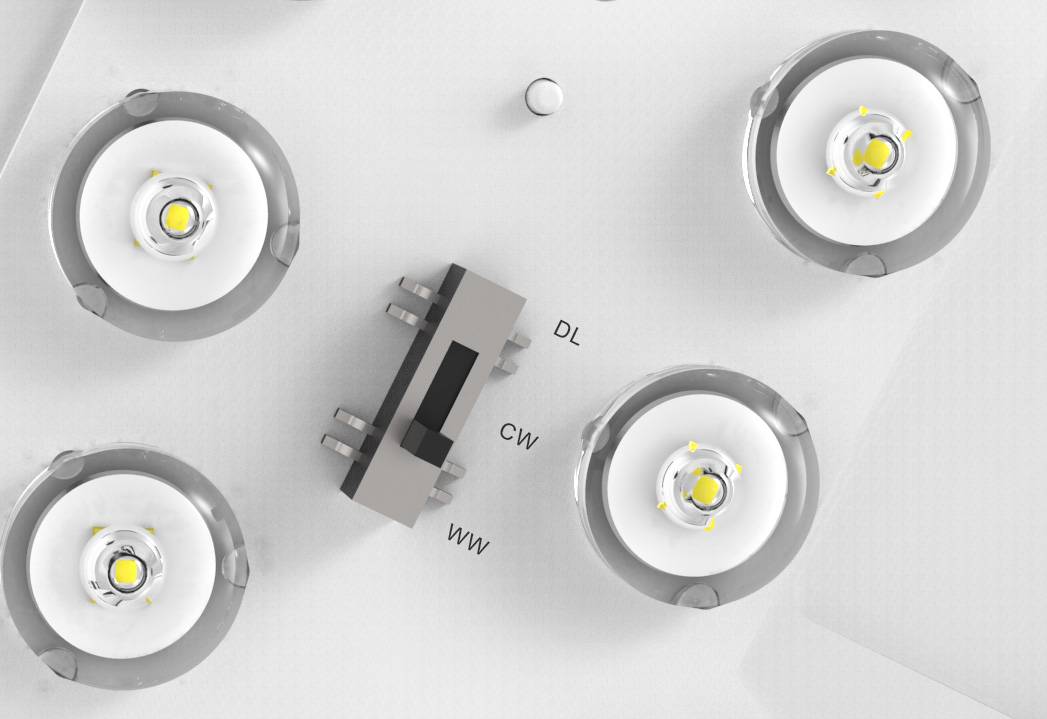

Switchable wattage (9/12/18W) and CCT (3000/4000/5000K)
Choice of alternative decorative trims
Optional plug-in microwave corridor sensor compatible with UNI-Remote control
Optional plug-in emergency modules, available in manual, self-test and DALI
Optional plug-in DALI conversion module
20mm Conduit entry
BESA box fitting points
IP65 & vandal resistant (IK10)

GENERAL SPECIFICATIONS

Voltage:220-240Vac 50/60Hz

Ambient Temp:-20°C to 50°C

IK Rating:IK10

Installation Area:Internal and External

L80B10 Lifetime:50,000 h

L70B50 Lifetime:70,000 h

IP Rating:IP65

Power Factor:0.9

Protection Rating:Class II

LS CRI:82

SDCM:<6

TECHNICAL SUMMARY

Default Setting:4000K at 12W

Dimensions:78x∅304

Max Input Current:80 mA

Settable CCT:3000k, 4000k, 5000k

CCT:3000K, 4000K, 5000K

Efficiency (lm/W):95 lm/W

Emergency Luminous Flux (lm):110 lm

Lumen:2,200 lm

Energy Class:C
