Ossa Go

Name: Ossa Go
SKU: OSSG15-W40/S
Availability: InStock

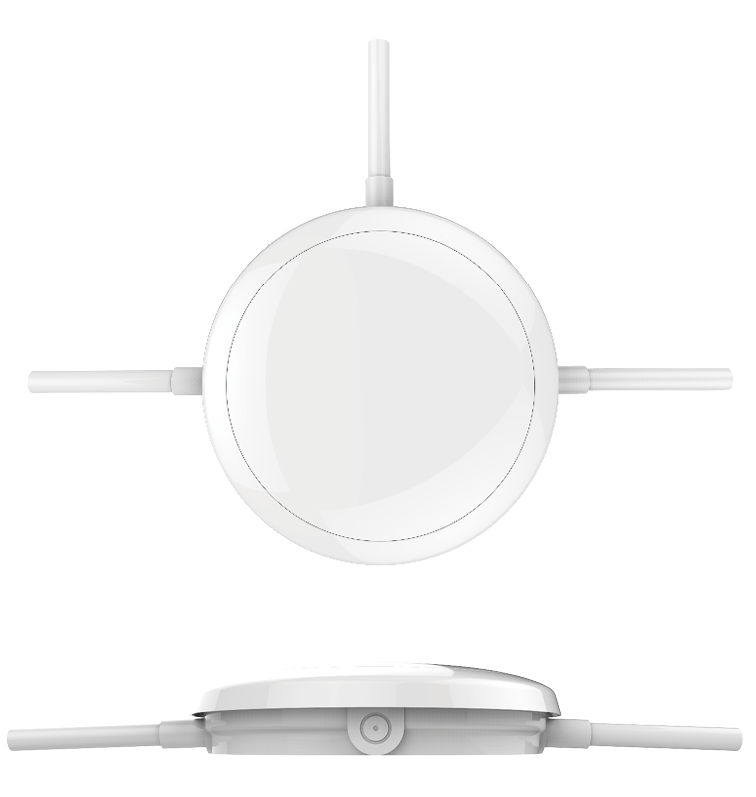

The Ossa Go is a slim bulkhead with integrated LED tray offering a low maintenance solution to lighting for all areas. With 20mm Conduit entry and BESA box fitting points to ease installation and maintenance.

Product Code: OSSG15-W40/S

Data Sheet LDT File

Installation Area

Surge Capacity

Dimensions

Wattage

Lumens

CCT

Input Voltage Supply

Ambient Temperature Range

Built-in Option

IK Rating

Colour / Finish

L80B10 Lifetime

L70B50 Lifetime

Mounting Option

IP Rating

Power Factor

Protection Rating

LS CRI

SDCM

Maximum Current Draw

Rated Power

Efficiency (lm/W)

Maintained Luminous Flux

Detection radius

Detection Angle

Clear

KEY FEATURES

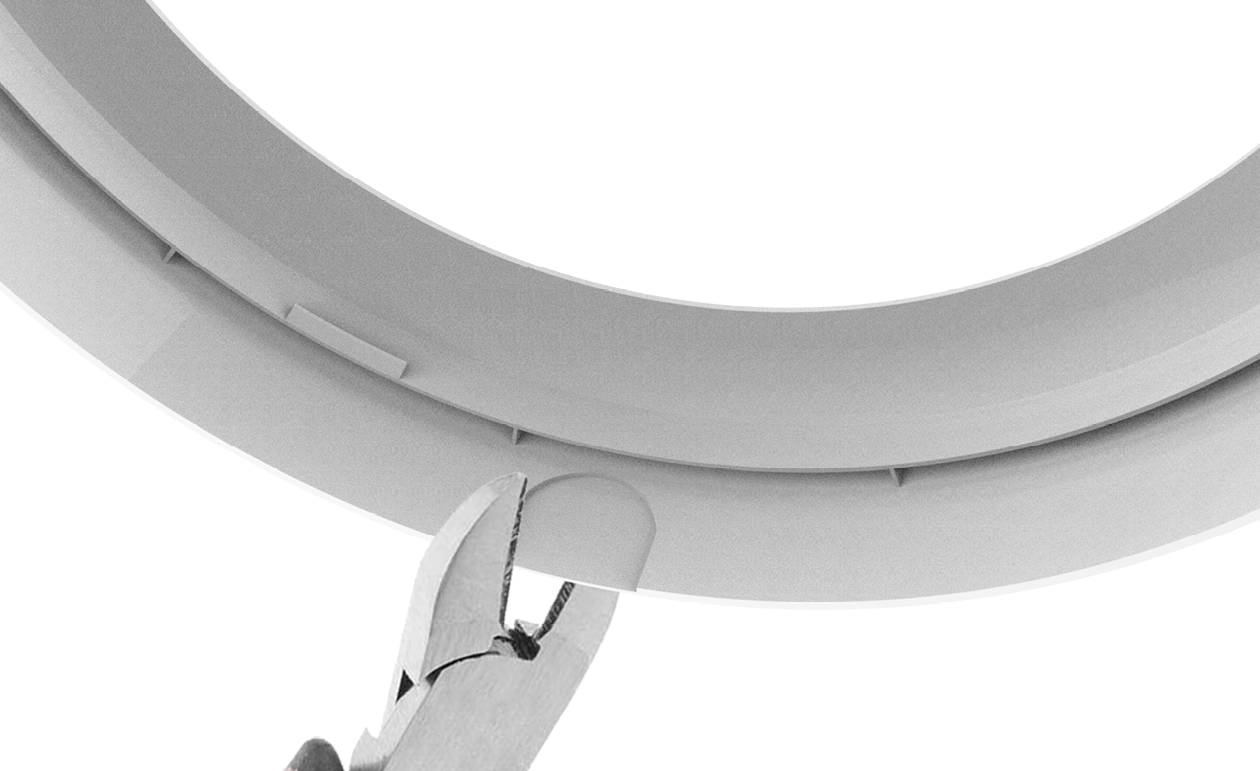

Choice of alternative decorative trims
IP65 & vandal resistant (IK10)
Integrated LED tray
Microwave sensor version available
20mm conduit entry
BESA box fitting points
Flicker free

GENERAL SPECIFICATIONS

Voltage:220-240Vac 50/60Hz

Ambient Temp:-20°C to 50°C

IK Rating:IK10

Installation Area:Internal and External

L80B10 Lifetime:96,000 h

L70B50 Lifetime:152,000 h

IP Rating:IP65

Power Factor:0.80

Protection Rating:Class II

LS CRI:82

SDCM:<6

Surge Capacity:500V

TECHNICAL SUMMARY

Dimensions:78x∅304

Max Input Current:82 mA

Rated Power (W):15 W

CCT:4,000K

Efficiency (lm/W):84 lm/W

Emergency Luminous Flux (lm):110 lm

Lumen:1,250 lm

Detection Radius:3.5 m

Detection Angle:150° wall mounting, 360° ceiling mounting
