Pollux

Name: Pollux
SKU: PLX08-SCT
Availability: InStock

The Pollux slim profile LED wall light offers a low maintenance solution to lighting for all areas, with switchable CCT to meet your different ambient needs.

Product Code: PLX08-SCT

Data Sheet

Installation Area

Surge Capacity

Dimensions

Settable CCT

Dimmable

Lumens

Built-in Option

Beam Angle

Wattage

CCT

Input Voltage Supply

Colour / Finish

Ambient Temperature Range

Mounting Option

IK Rating

L80B10 Lifetime

L70B50 Lifetime

IP Rating

Power Factor

Protection Rating

LS CRI

SDCM

Default Setting

Maximum Current Draw

Rated Power

Efficiency (lm/W)

Energy Class

Clear

KEY FEATURES

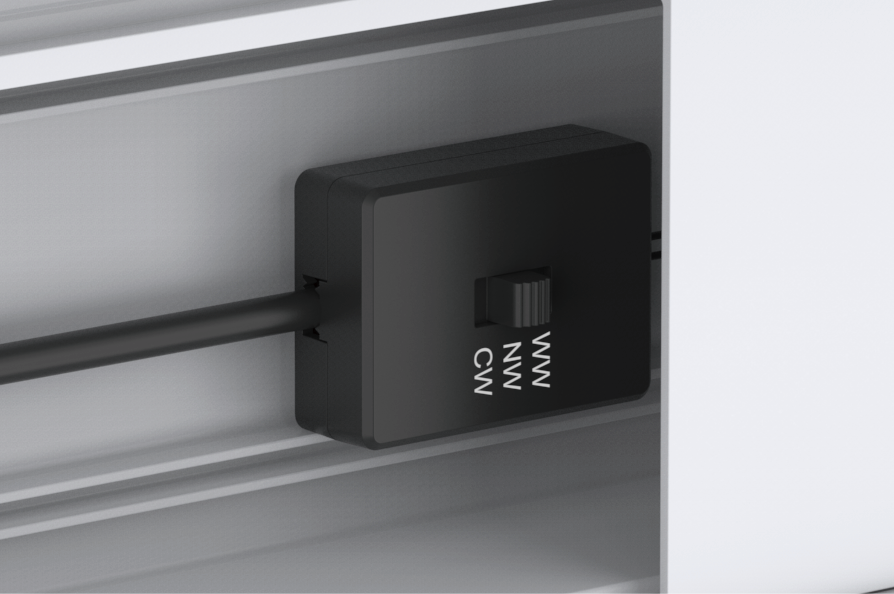

CCT switchable 3000K/4000k/5000K
Up and down luminous function
Flicker free

GENERAL SPECIFICATIONS

Voltage:220-240Vac 50/60Hz

Ambient Temp:-20°C to 50°C

IK Rating:IK03

Installation Area:Internal and External

L80B10 Lifetime:54,000 h

L70B50 Lifetime:85,000 h

IP Rating:IP20

Power Factor:0.95

Protection Rating:Class I

LS CRI:81, 82

SDCM:<6

Surge Capacity:1000V

TECHNICAL SUMMARY

Default Setting:4000K

Dimensions:180x90x38.5, 360x90x38.5

Max Input Current:37 mA, 73 mA

Rated Power (W):16 W, 8 W

Settable CCT:3000k, 4000k, 5000k

CCT:3000K, 4000K, 5000K

Efficiency (lm/W):100 lm/W, 99 lm/W

Dimmable:Yes

Lumen:1,600 lm, 790 lm

Beam Angle:40

Energy Class:E
