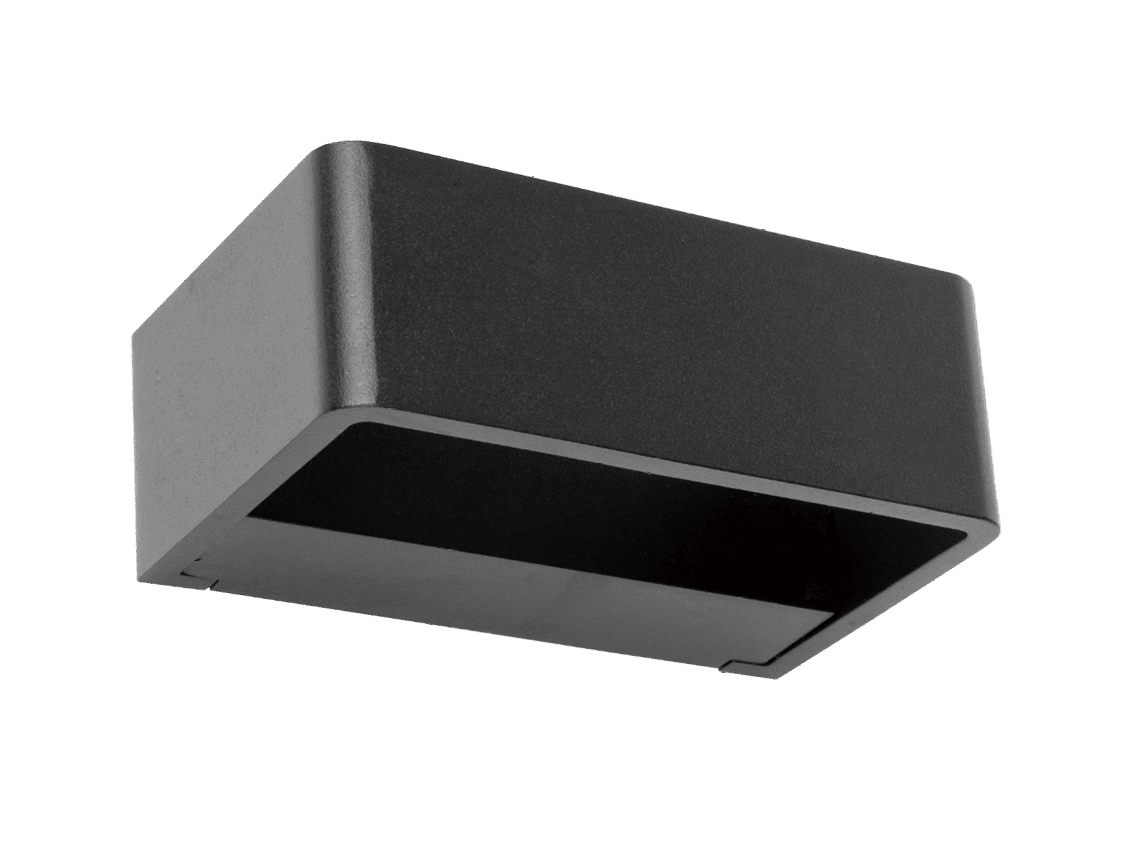

Portage 2

Name: Portage 2
SKU: POR10-SCT-BLK
Availability: InStock

The Portage integrated up/down wall light offers a low maintenance solution to lighting for all areas, with switchable CCT to meet your different ambient needs.

Product Code: POR10-SCT-BLK

Installation Area

Surge Capacity

Dimensions

Settable CCT

Built-in Option

Lumens

Wattage

CCT

Beam Angle

Input Voltage Supply

Ambient Temperature Range

Colour / Finish

IK Rating

L80B10 Lifetime

L70B50 Lifetime

IP Rating

Power Factor

Protection Rating

LS CRI

SDCM

Default Setting

Maximum Current Draw

Rated Power

Efficiency (lm/W)

Energy Class

Clear

KEY FEATURES

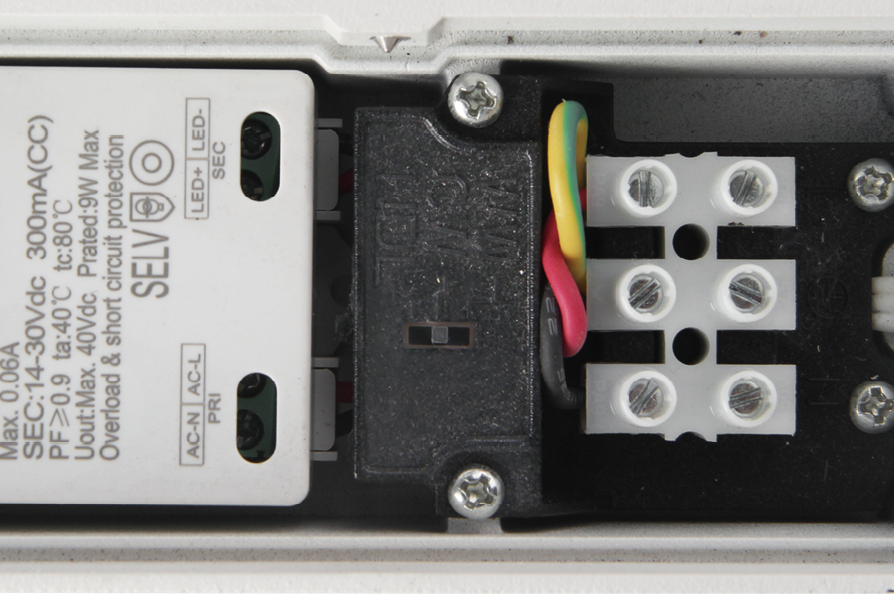

Switchable CCT (3000K/4000K/5000K)
Up and down wall lighting (50% up/50% down)
Available in black and white
Negligible UV output, ideal for retail application
Flicker free

GENERAL SPECIFICATIONS

Voltage:220-240Vac 50/60Hz

Ambient Temp:-20°C to 50°C

IK Rating:IK07

Installation Area:Internal and External

L80B10 Lifetime:109,000 h

L70B50 Lifetime:173,000 h

IP Rating:IP54

Power Factor:0.9, 0.95

Protection Rating:Class I

LS CRI:82

SDCM:<6

Surge Capacity:1000V

TECHNICAL SUMMARY

Default Setting:4000K

Dimensions:150x90x55, 220x95x55

Max Input Current:46 mA, 72 mA

Rated Power (W):10 W, 15 W

Settable CCT:3000k, 4000k, 5000k

CCT:3000K, 4000K, 5000K

Efficiency (lm/W):40 lm/W, 45 lm/W, 61 lm/W, 65 lm/W

Lumen:400 lm, 650 lm, 670 lm, 910 lm

Beam Angle:120

Energy Class:D
