LED dimmable DD, 12W, 4pin, 30000hrs CCT

Product Code: DD12DIM/4P-SCT
  • Colour temperature switchable 2700K/4000K/6500K
  • Save energy by up to 65%
  • Replacement for 16w, 28w, 38w fluorescent DD
  • lamps used with magnetic ballast
  • Compatible with Kosnic emergency module for instant conversion
  • Flicker free
Product Description

The Kosnic Dimmable LED DD lamps take a fresh approach to functional lighting bringing dimmable energy saving LED technology in a DD lamp format. With the addition of the plug and play emergency pack the Kosnic LED DD lamps offer a highly functional alternative to fluorescent DD lamps. This dimmable version of Kosnic LED DD lamp cannot be used in luminaires with control gear. While there are versions for 4-pin lamp holders, the mains supply must come directly from the switch without passing through magnetic or electronic control gear.

Product Description

The Kosnic Dimmable LED DD lamps take a fresh approach to functional lighting bringing dimmable energy saving LED technology in a DD lamp format. With the addition of the plug and play emergency pack the Kosnic LED DD lamps offer a highly functional alternative to fluorescent DD lamps. This dimmable version of Kosnic LED DD lamp cannot be used in luminaires with control gear. While there are versions for 4-pin lamp holders, the mains supply must come directly from the switch without passing through magnetic or electronic control gear.

Warranty Image
Warranty Image

General Specifications

Voltage
220-240Vac 50/60Hz
Ambient Temp (°C)
-20°C to 40°C
Install Area
Internal
Nominal Life
30,000
Power Factor
0.97
Class
E
CRI
80

Recommended/alternatives

No alternatives

Downloadables

Technical Summary

  • Default Setting

    4000K

  • Dimensions (mm)

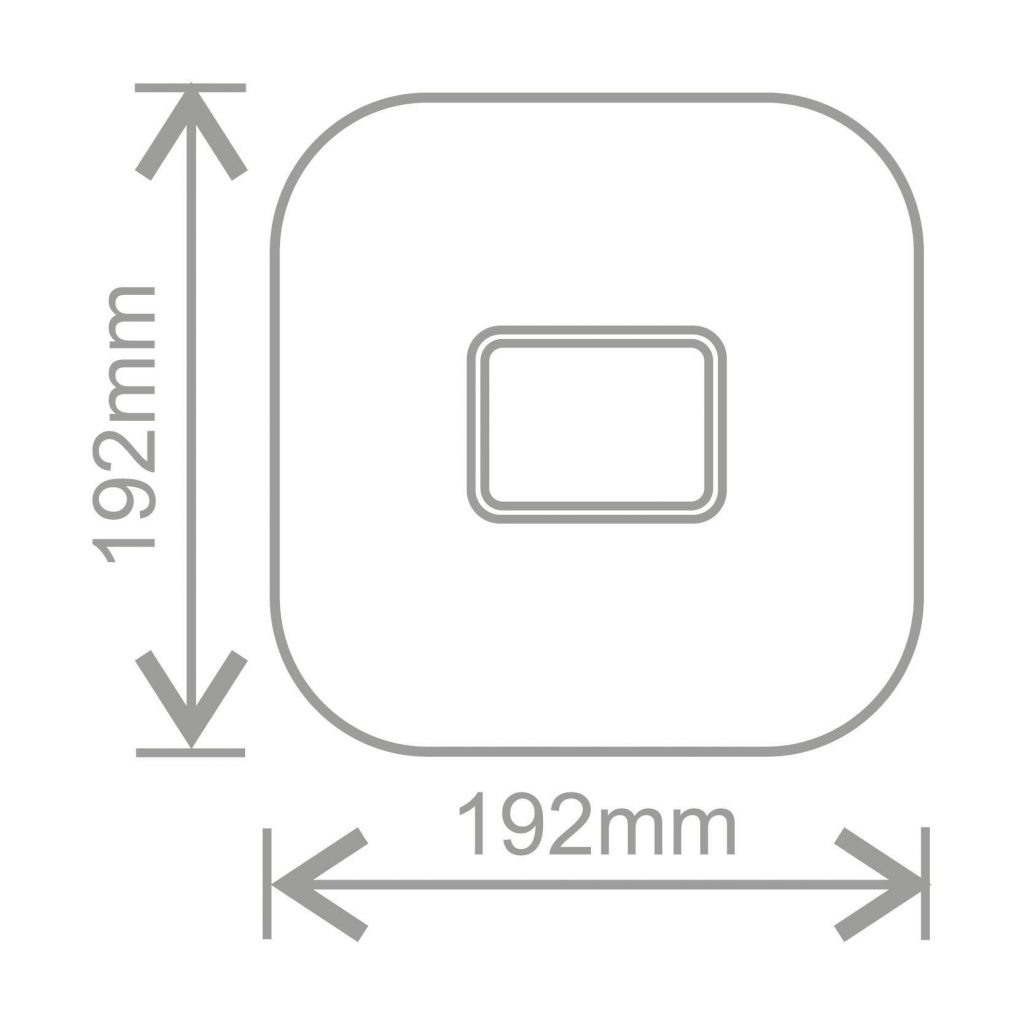

    33x∅192

  • L80B10

    54,000

  • Rated Power (W)

    12

  • Settable CCT

    2700k, 4000k, 6500k

  • Efficiency (lm/W)

    123

  • Dimmable

    Y
