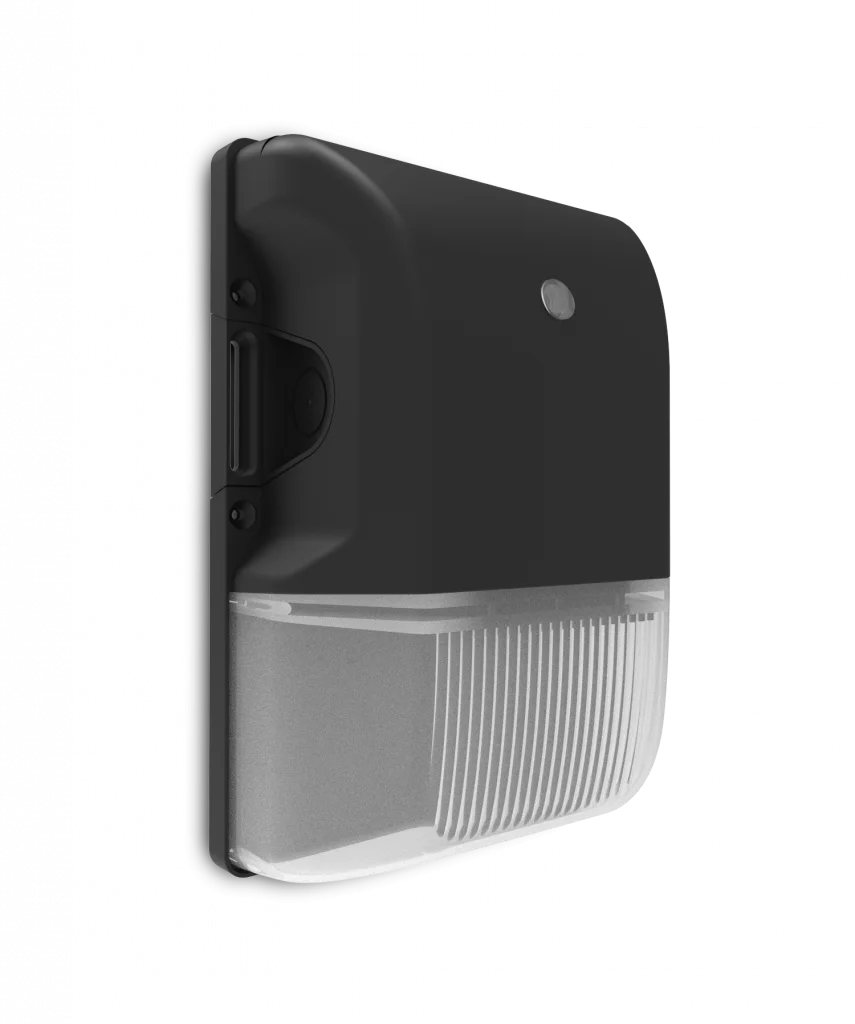

Kaz II, LED wall pack,12W IP65 CCT switchable, dusk to dawn
Product
Code: KAZ12-SCT
Old Product
Code: KAZ15-W40
- Anti-corrosion polycarbonate body
- Durable and rugged IK10 polycarbonate construction
- IP65
- Dusk to dawn sensor by default and rewirable
- BESA box fitting points
Product Description
The Kaz II improves and the success of its predecessor with an updated elegant design and improved dusk dawn sensor. Its durable construction with an IK10 and IP65 ratings makes it prefect for using in demanding environments as it can be cleaned easily with a pressure washer. Being CCT switchable, with the ability to disable the integrated dusk dawn sensor, and emergency options the Kaz II provides plenty of flexibility for installation.
Product Description
The Kaz II improves and the success of its predecessor with an updated elegant design and improved dusk dawn sensor. Its durable construction with an IK10 and IP65 ratings makes it prefect for using in demanding environments as it can be cleaned easily with a pressure washer. Being CCT switchable, with the ability to disable the integrated dusk dawn sensor, and emergency options the Kaz II provides plenty of flexibility for installation.
General Specifications
Voltage
220-240Vac 50/60Hz
Ambient Temp (°C)
-20°C to 50°C
IK Rating
IK08
Install Area
Internal and External
Nominal Life
50,000
IP Rating
IP65
Power Factor
>0.94
Class
E
CRI
≥82
Recommended/alternatives
No alternativesDownloadables
Technical Summary
-
Default Setting
4000K at 12W
-

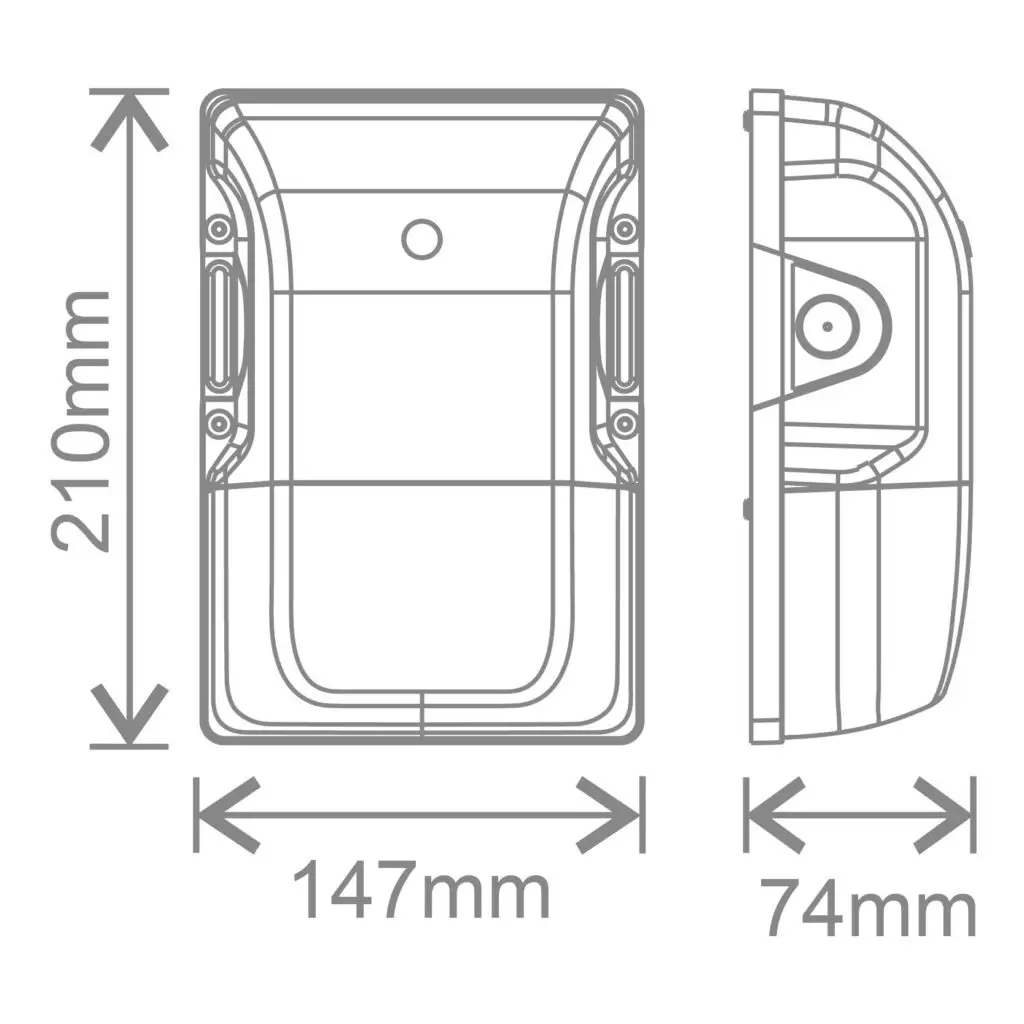

Dimensions (mm)
218.5x147.5x79
-
Max input current
14A/360µs
-
L80B10
50,000
-
Rated Power (W)
12
-

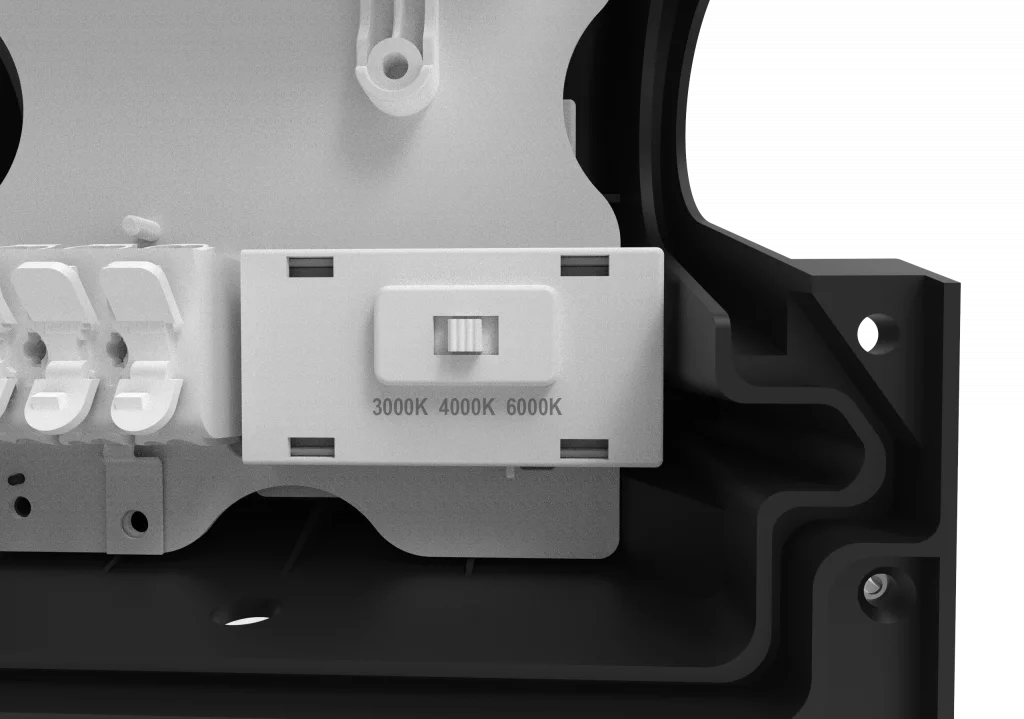

Settable CCT
3000k, 4000k, 6500k
-
Efficiency (lm/W)
134
-
Emergency Luminous Flux (lm)
160
-
Dimmable
N
