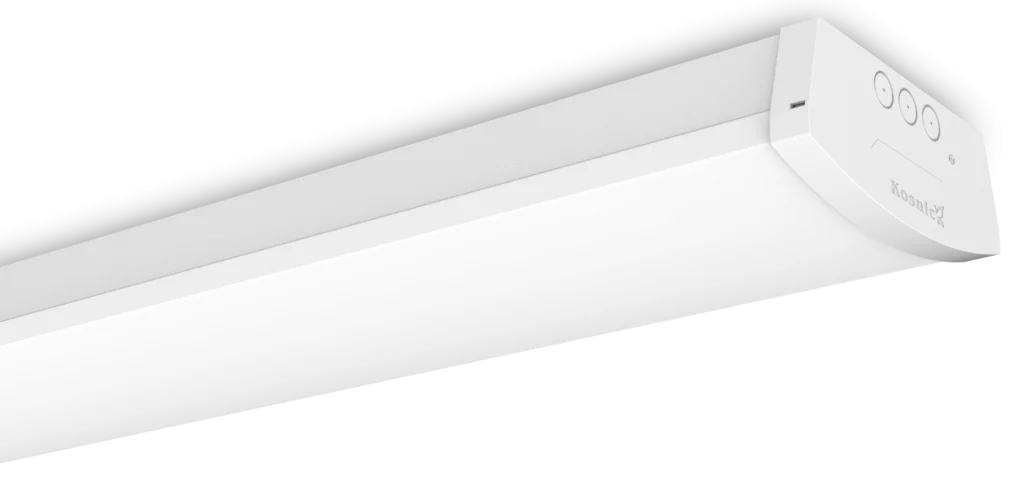

Kennet II, Surface mount batten, CCT switching, 48W, 5ft
Product
Code: KEN25F-SCT
Old Product
Code: KBTN48LS12/SCT
- Ideal replacement for twin T8 surface mount battens
- 20mm conduit entries
- Switchable CCT (3000K/4000K/6000K)
- Flicker free
- Plug & play microwave sensor module with corridor function, for standard version only
- Plug & play emergency module
- BESA box fitting points
- Optional DALI 2 and PUSH dimming
- TP(a) rated diffuser
Product Description
The Kennet II adds wattage switching to the Kennet range providing even potential for energy savings. The Kennet range is designed to be an excellent replacement for twin T8 surface mount battens. With CCT switching and flicker free output the improvement over fluorescent lights is dramatic, and with the options for DALI and push dimming the Kennet II is a perfect upgrade.
Product Description
The Kennet II adds wattage switching to the Kennet range providing even potential for energy savings. The Kennet range is designed to be an excellent replacement for twin T8 surface mount battens. With CCT switching and flicker free output the improvement over fluorescent lights is dramatic, and with the options for DALI and push dimming the Kennet II is a perfect upgrade.
_ld-307x1024.jpg)
General Specifications
Voltage
220-240Vac 50/60Hz
Ambient Temp (°C)
-20°C to 50°C
IK Rating
IK08
Install Area
Internal
Nominal Life
50,000
IP Rating
IP20
Class
D
CRI
≥82
Recommended/alternatives
No alternativesDownloadables
Technical Summary
-
Default Setting
4000K at 48W
-
Dimensions (mm)
1478x205x87
-
Max input current
18A/290µs
-
L80B10
60,000
-
Rated Power (W)
48
-
Settable Wattage
28W, 34W, 41W, 48W
-
Settable CCT
3000k, 4000k, 6000k
-
Efficiency (lm/W)
121
-
Emergency Luminous Flux (lm)
350
-
Dimmable
N
