Meola, large LED bulkhead DIM 25W IP65 SCT EME & sensor
Product
Code: MEO25-SCT/ES
- Diameter of 420mm & 520mm
- IP65 and vandal resistant (IK10)
- Option of base with emergency module
- Integrated LED board for uniform light output
- High lumen output of up to 4000lm
- Flicker free
- DALI 3 in1 Dimmable version available
- Switchable CCT (3000K/4000K/5000K)
Product Description

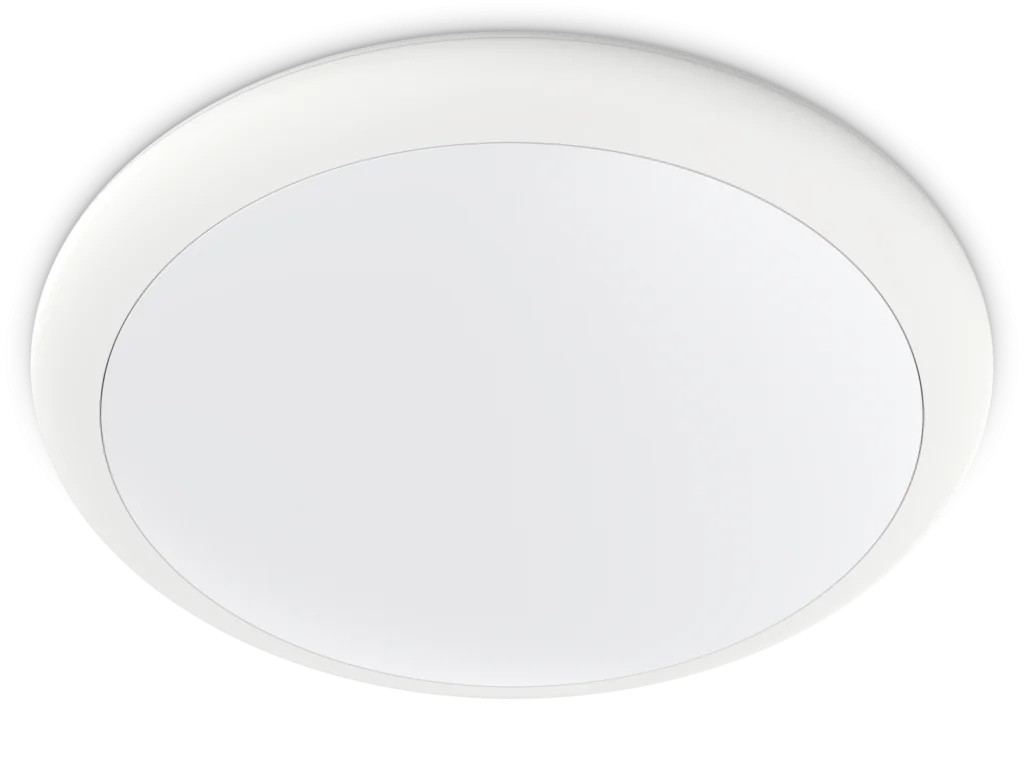

The Kosnic Meola Bulkhead comes with an integrated LED board for uniform light output. Switchable CCT (3000k,4000k,5000k). DALI/1-10v/Push dimmable version available. Microwave sensor and emergency versions are also available. The bulkhead is IP65 rated for outdoor use and vandal resistant with an IK10 rating. The bulkhead offers a simple and elegant solution wherever practical lighting is required.
Product Description
The Kosnic Meola Bulkhead comes with an integrated LED board for uniform light output. Switchable CCT (3000k,4000k,5000k). DALI/1-10v/Push dimmable version available. Microwave sensor and emergency versions are also available. The bulkhead is IP65 rated for outdoor use and vandal resistant with an IK10 rating. The bulkhead offers a simple and elegant solution wherever practical lighting is required.
General Specifications
Voltage
220-240Vac 50/60Hz
Ambient Temp (°C)
-20°C to 50°C
IK Rating
IK10
Install Area
Internal and External
Nominal Life
50,000
IP Rating
IP65
Power Factor
0.90
Class
D
CRI
≥82
Recommended/alternatives
No alternativesDownloadables
Technical Summary
-
Default Setting
4000K
-

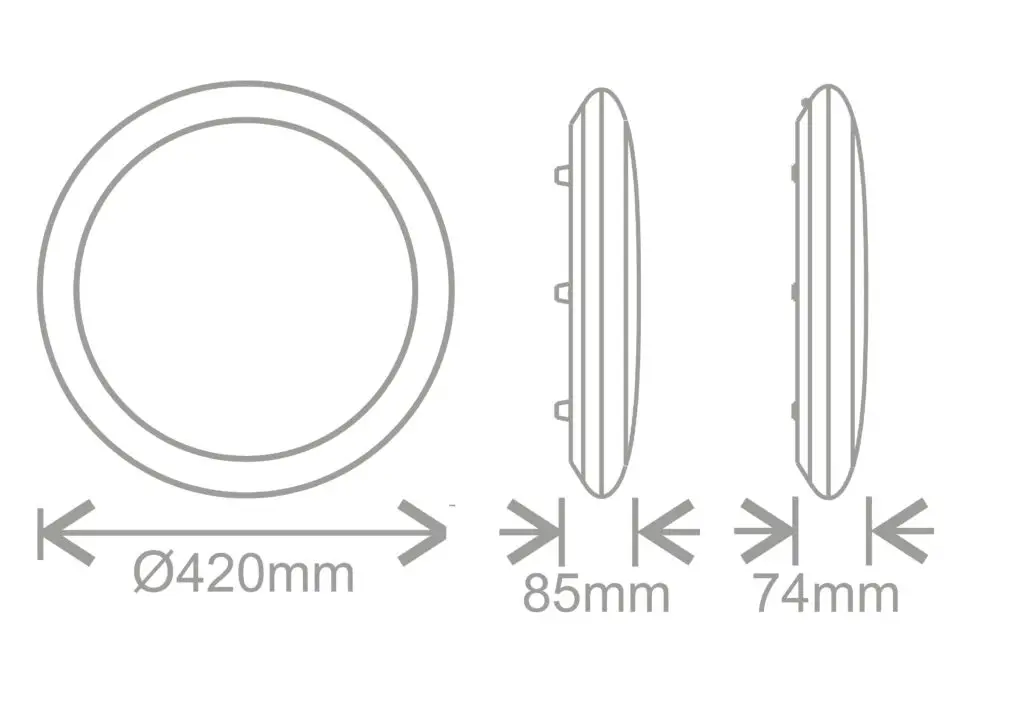

Dimensions (mm)
85x∅420
-
Max input current
19.2A/256µs
-
L80B10
43,000
-
Rated Power (W)
25
-
Settable CCT
3000k, 4000k, 5000k
-
Efficiency (lm/W)
100
-
Emergency Luminous Flux (lm)
400
-
Dimmable
N
