Napa 6 inch LED commercial DL, CCT switch, 20W, IP44
Product
Code: NAP6IN20-WHT
Old Product
Code: KCDL20FR44/SCT-WHT
- Integrated dimmable driver
- Switchable CCT (3000K/4000K/6000K)
- Compatible with Kosnic's mains emergency module
- Optional silver and polished chrome reflectors
- High lumen output
- Low glare
- Flicker free
Product Description
The Kosnic Napa LED Commercial Downlight has a switchable colour temperature function so that the installer can select 3000k, 4000k or 6000k. The downlight is supplied in white but has the option of silver or polished chrome reflectors and is compatible with Kosnic emergency modules.
Product Description
The Kosnic Napa LED Commercial Downlight has a switchable colour temperature function so that the installer can select 3000k, 4000k or 6000k. The downlight is supplied in white but has the option of silver or polished chrome reflectors and is compatible with Kosnic emergency modules.
General Specifications
Voltage
220-240Vac 50/60Hz
Ambient Temp (°C)
-20°C to 50°C
IK Rating
IK07
Install Area
Internal
Nominal Life
50,000
IP Rating
IP44
Power Factor
0.97
Class
F
CRI
≥82
Recommended/alternatives
No alternativesDownloadables
Technical Summary
-
Beam Angle
95
-
Cut-Out (mm)
∅150mm
-
Default Setting
4000K at 20W
-

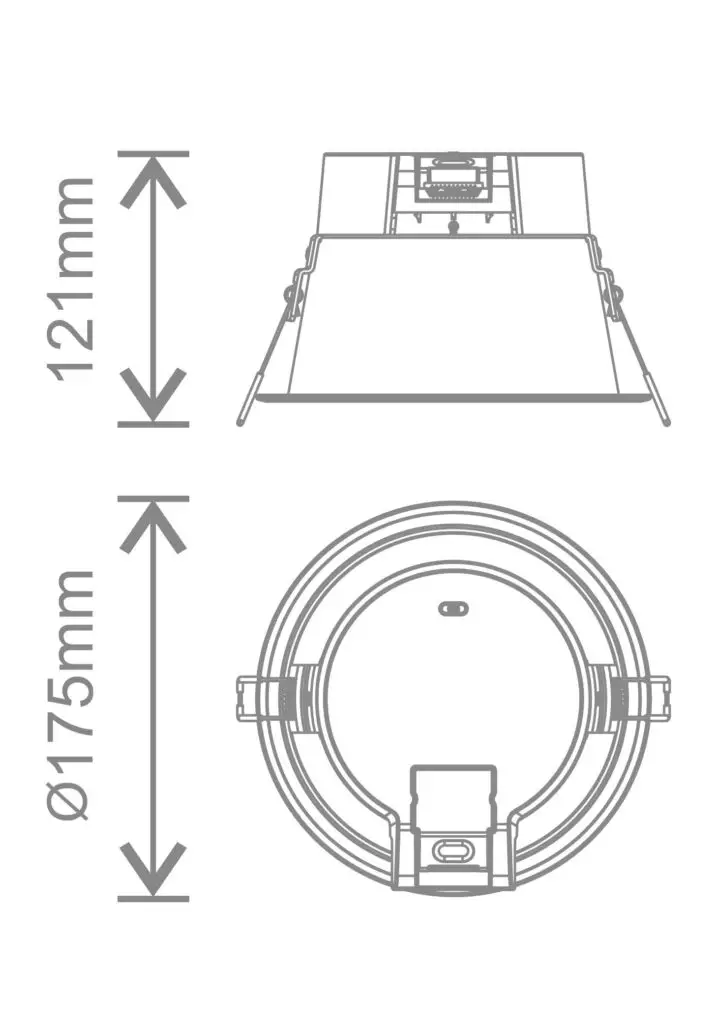

Dimensions (mm)
110x∅175
-
Max input current
20A/350µs
-
L80B10
50,000
-
Rated Power (W)
20
-
Settable CCT
3000k, 4000k, 6000k
-
Efficiency (lm/W)
100
-
Emergency Luminous Flux (lm)
200
-
Dimmable
Y
