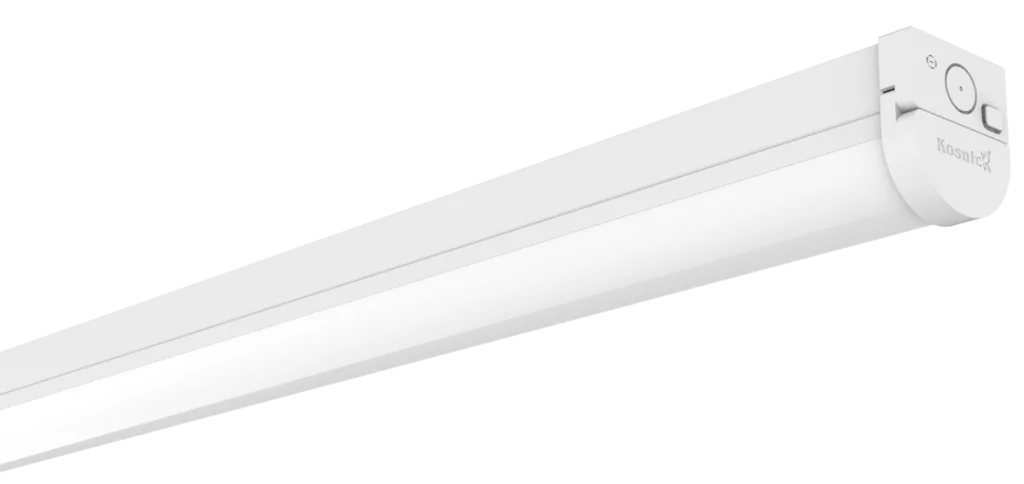

NIVA III interior batten 6ft Single 36W CCT switchable
Product
Code: NIV6FS36
- Switchable CCT (3000K/4000K/6000K)
- Switchable wattage
- High efficiency up to 156lm/W
- Optional plug-in emergency module available
- Optional DALI 2 and PUSH dimming
- For single and twin tube batten replacement
- 20mm Conduit entry
- BESA box fitting points
- Easy installation with press and release end caps to open the cover
Product Description
Niva III LED batten utilises high performance LEDs to offer outstanding lumen efficiency. With switchable CCT and are suitable for a wide range of applications including warehouses, factories and garages. The product range also has the option to install an emergency module and microwave sensor.
Product Description
Niva III LED batten utilises high performance LEDs to offer outstanding lumen efficiency. With switchable CCT and are suitable for a wide range of applications including warehouses, factories and garages. The product range also has the option to install an emergency module and microwave sensor.
_ld-307x1024.jpg)
General Specifications
Voltage
220-240Vac 50/60Hz
Ambient Temp (°C)
-20°C to 50°C
IK Rating
IK08
Install Area
Internal
Nominal Life
50,000
IP Rating
IP20
Power Factor
>0.94
Class
D
CRI
≥82
Recommended/alternatives
No alternativesDownloadables
Technical Summary
-
Beam Angle
120
-
Default Setting
4000K at 36W
-
Dimensions (mm)
1734x61x71
-
Max input current
15.6A / 260μs
-
L80B10
110,000
-
Rated Power (W)
36
-
Settable CCT
3000k, 4000k, 6000k
-
Efficiency (lm/W)
150
-
Emergency Luminous Flux (lm)
500
-
Dimmable
N
