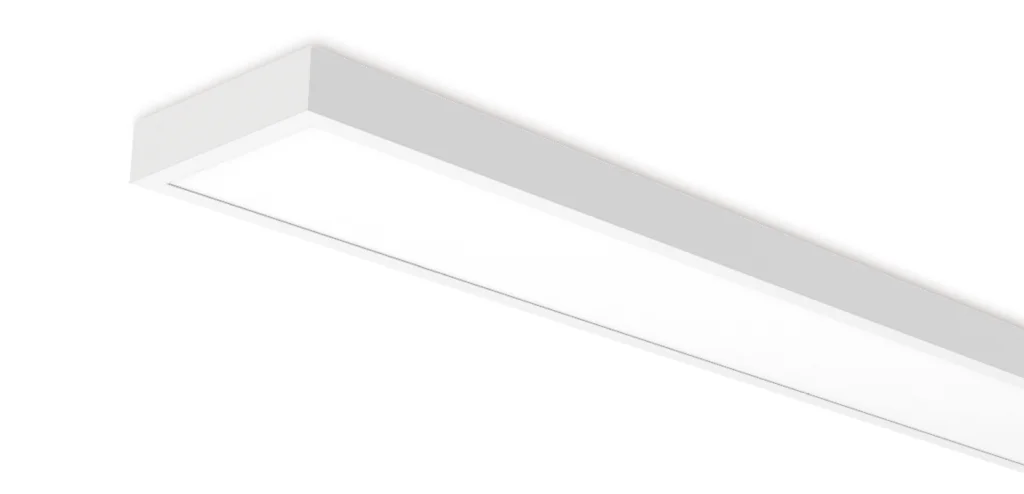

Milo, Edge-lit batten, watt switching 23/27W, 4ft, 4000K
Product
Code: MIL4F27-W40
Old Product
Code: KPTBTN/SUS3
- Designed to replace the popular twin T8 surface modular
- DALI, 1-10V (0-10V) and PUSH alternative driver available
- Flicker-free driver as standard
- Plug & play emergency module
- BESA box fitting points
Product Description
The Kosnic Milo LED battens are replacements for standard ceiling battens. These advanced battens are suitable for all areas, including visually demanding non-transient task areas such as offices and educational premises where users require uniform light to maintain well-being.
Product Description
The Kosnic Milo LED battens are replacements for standard ceiling battens. These advanced battens are suitable for all areas, including visually demanding non-transient task areas such as offices and educational premises where users require uniform light to maintain well-being.
General Specifications
Voltage
220-240Vac 50/60Hz
Ambient Temp (°C)
-20°C to 50°C
IK Rating
IK04
Install Area
Internal
Nominal Life
50,000
IP Rating
IP20
Power Factor
>0.94
Max case temp (°C)
75
Class
F
CRI
≥82
Recommended/alternatives
Downloadables
Technical Summary
-
Default Setting
4000K at 27W
-
Dimensions (mm)
1255x310x50
-
Max input current
28A/100µs
-
L80B10
50,000
-
Rated Power (W)
27
-
Efficiency (lm/W)
104
-
Emergency Luminous Flux (lm)
480
-
Driver Maximum Power (W)
28
-
Driver Output Voltage (Vdc)
30-40
-
Dimmable
N
