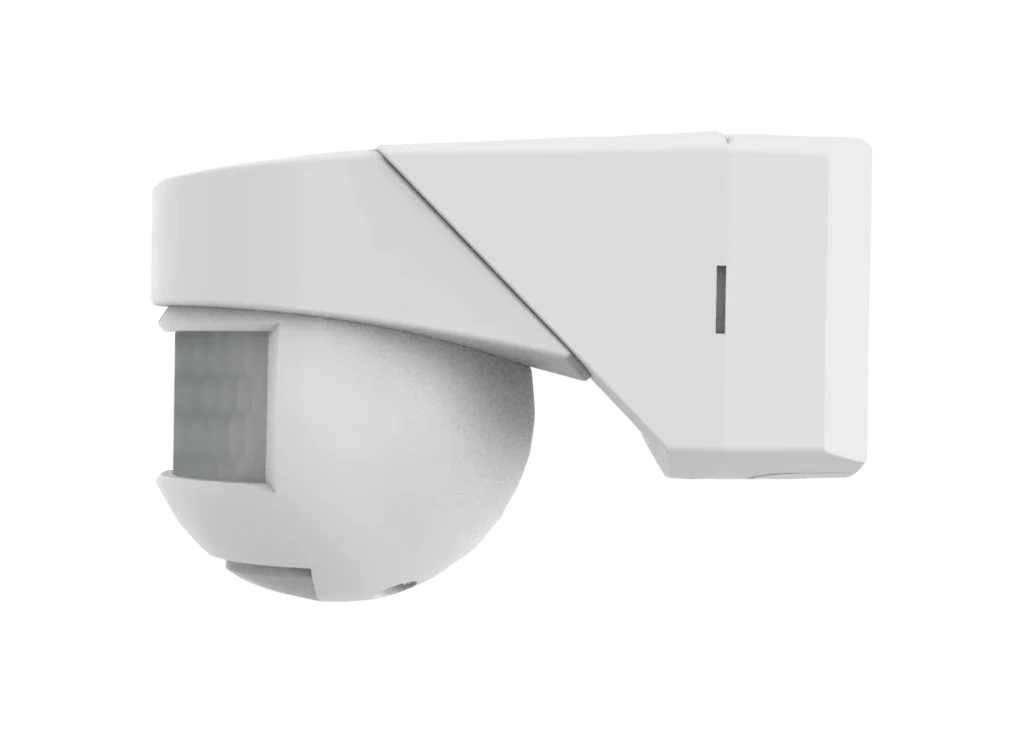

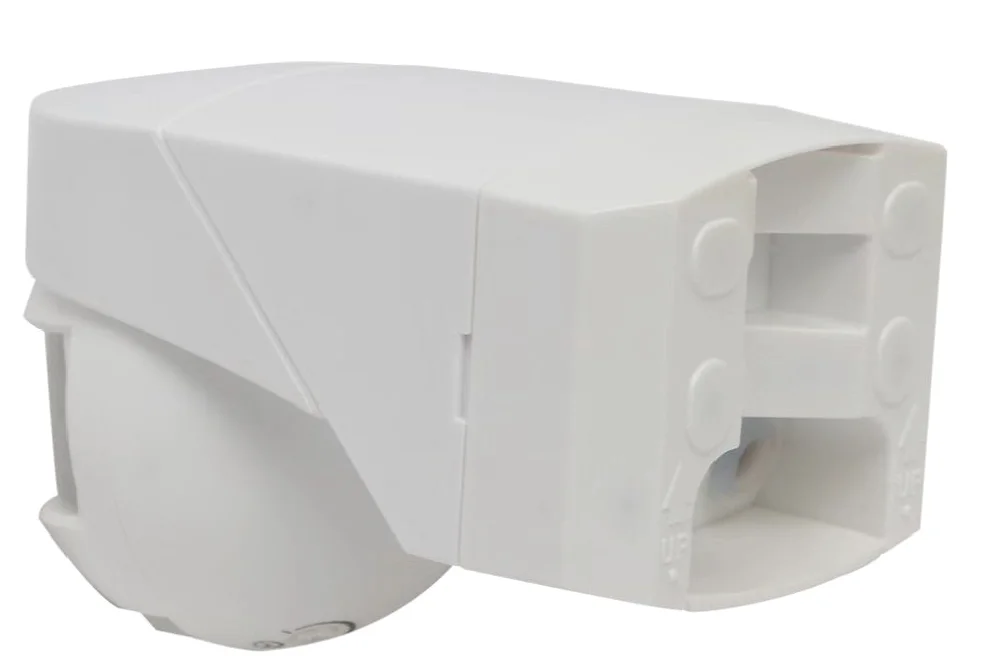

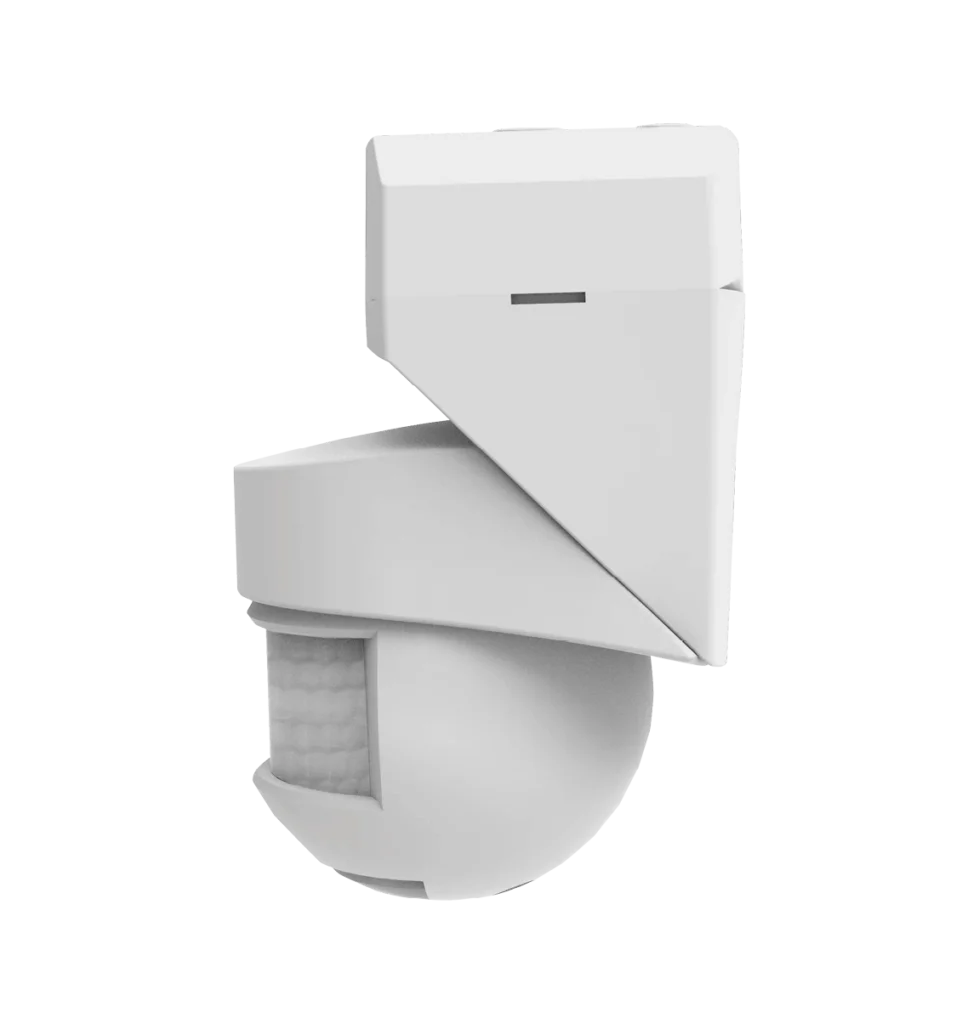

P20 Exterior IP54 on/off PIR 3 mount positions white
Product
Code: PIR-EXT-WHT
- Designed for wall, ceiling and corner mounting positions
- IP54 rated for outdoor use
- All mounting accessories are included
- Upto 4m mounting height
- Wide detection angle of 180°+360° degree
- Adjustable time delay (10s-15min) and daylight sensitivity
- Available in black and white
- New product code: KAV-P-WHT
Product Description
P20 Exterior PIR Sensor is IP54 rated and designed for outdoor installation, with a range of mounting option and large detection area. The 360 degree downwards facing detector combined with the 12m range detector makes it well suited for installation above exterior doors.
Product Description
P20 Exterior PIR Sensor is IP54 rated and designed for outdoor installation, with a range of mounting option and large detection area. The 360 degree downwards facing detector combined with the 12m range detector makes it well suited for installation above exterior doors.
General Specifications
Voltage
220-240Vac 50/60Hz
Ambient Temp (°C)
-20°C to 40°C
Install Area
Internal and External
Connection
"Push-fit terminals, L/N = 0.75-1.5mm²"
IP Rating
IP54
Recommended/alternatives
No alternativesDownloadables
Technical Summary
-
Detection radius
12
-
Detection Angle
"180° (side), 360° (bottom)"
-

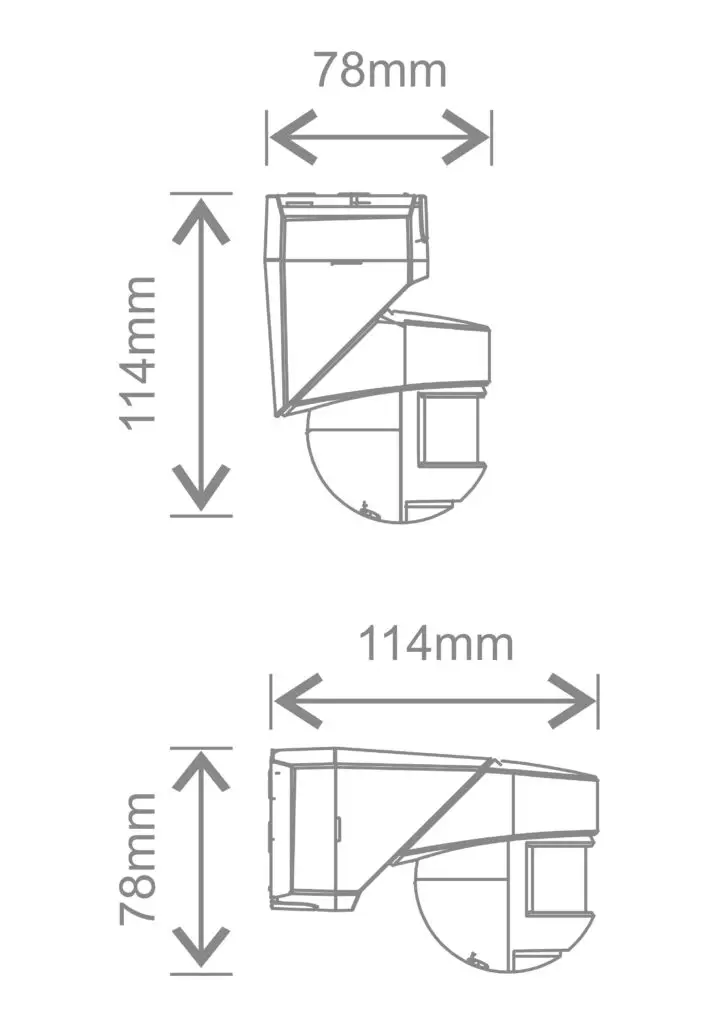

Dimensions (mm)
114x78x72
-
Max load resistive (W)
2,000
-
Max load inductive (W)
1,000
-
Modes
On/Off
-
Mounting Info
1.8-2.5m for Wall Mounting. 2.2-4m for Ceiling Mounting
-
Connection
"Push-fit terminals, L/N = 0.75-1.5mm²"
