Faceta, 4 inch LED commercial downlight, 10W/6W CCT/W switch

Product Code: FAC4IN10-SCT
Old Product Code: KCDL1006FR65/SCT-WHT
  • IP65 when ceiling recess mounted
  • Unique faceted white reflector
  • Optional drop-down diffusers for KCDL2622FR65
  • Low glare
  • Flicker free
  • Optional DALI, 1-10V (0-10V) driver (FAC8IN26-SCT)
  • Option of CCT switching 3000K, 4000K, 5000K
Product Description

The Kosnic LED Commercial Downlight range are retrofit LED lighting for widely used 3", 4", 6" and 8" fluorescent downlights with a distinctive faceted white reflector and a recessed light source. The LED Commercial Downlights are now available with a switchable CCT, so you can select from a range of colour temperatures. The range offers affordable products with high lumen efficiency and a long life. Furthermore the downlights are compatible with Kosnic's emergency module.

Product Description

The Kosnic LED Commercial Downlight range are retrofit LED lighting for widely used 3″, 4″, 6″ and 8″ fluorescent downlights with a distinctive faceted white reflector and a recessed light source. The LED Commercial Downlights are now available with a switchable CCT, so you can select from a range of colour temperatures. The range offers affordable products with high lumen efficiency and a long life. Furthermore the downlights are compatible with Kosnic’s emergency module.

Warranty Image
Warranty Image

General Specifications

Voltage
220-240Vac 50/60Hz
Ambient Temp (°C)
-20°C to 50°C
Install Area
Internal
Nominal Life
50,000
Connection
Driver Wiring leads
IP Rating
IP65
Power Factor
0.95
EME operation time
3
Max case temp (°C)
75
CRI
>80

Recommended/alternatives

No alternatives

Downloadables

Technical Summary

  • Beam Angle

    80

  • Cut-Out (mm)

    ∅111mm

  • Default Setting

    4000K at 10W

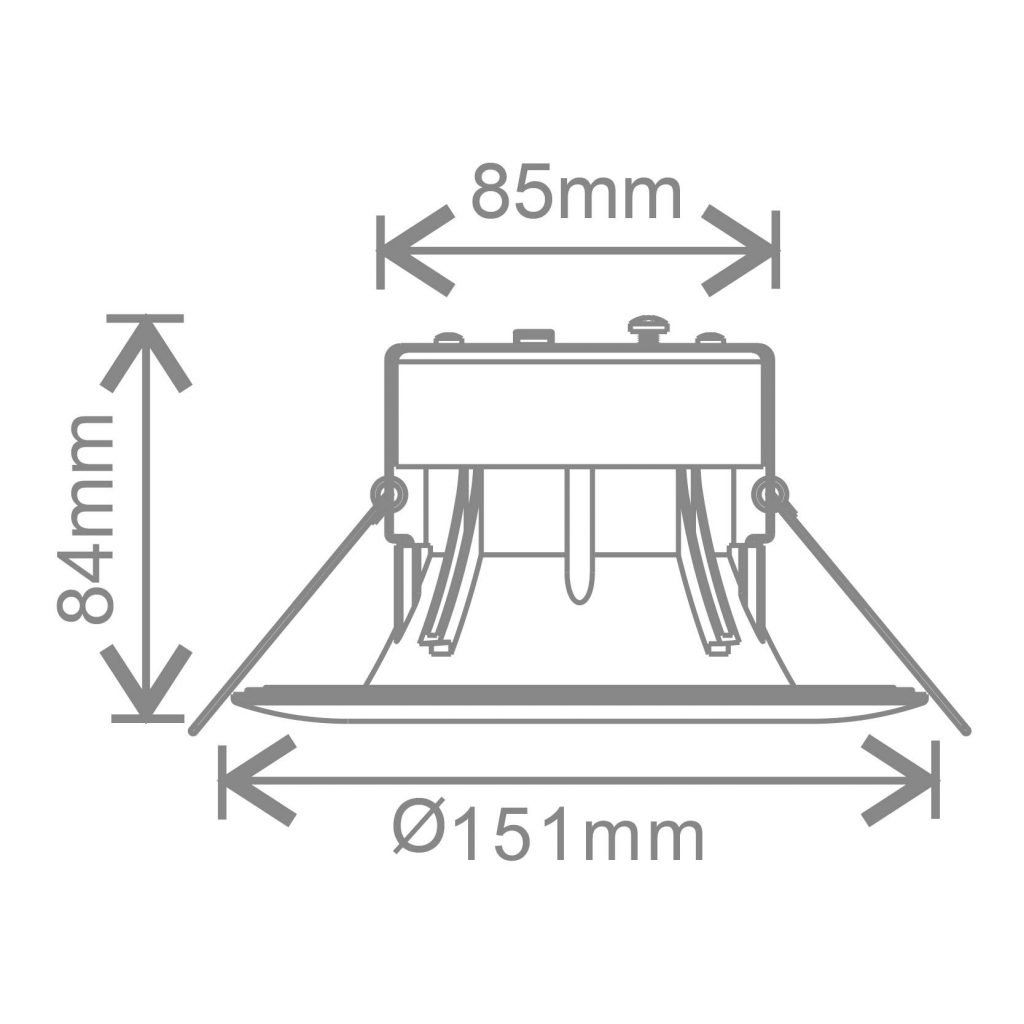

  • Dimensions (mm)

    84x∅151

  • Rated Power (W)

    10

  • Surge protection

    1000

  • Connection

    Driver Wiring leads

  • Settable Wattage

    6W, 10W

  • Settable CCT

    3000k, 4000k, 5000k

  • Efficiency (lm/W)

    60

  • Maintained Lumen

    250

  • Driver Input Connection

    IP20

  • Driver Inrush Current

    14.6

  • Inrush pulse time

    8

  • Driver Output Voltage (Vdc)

    24-42

  • Dimmable

    Specific Dimmer

X
