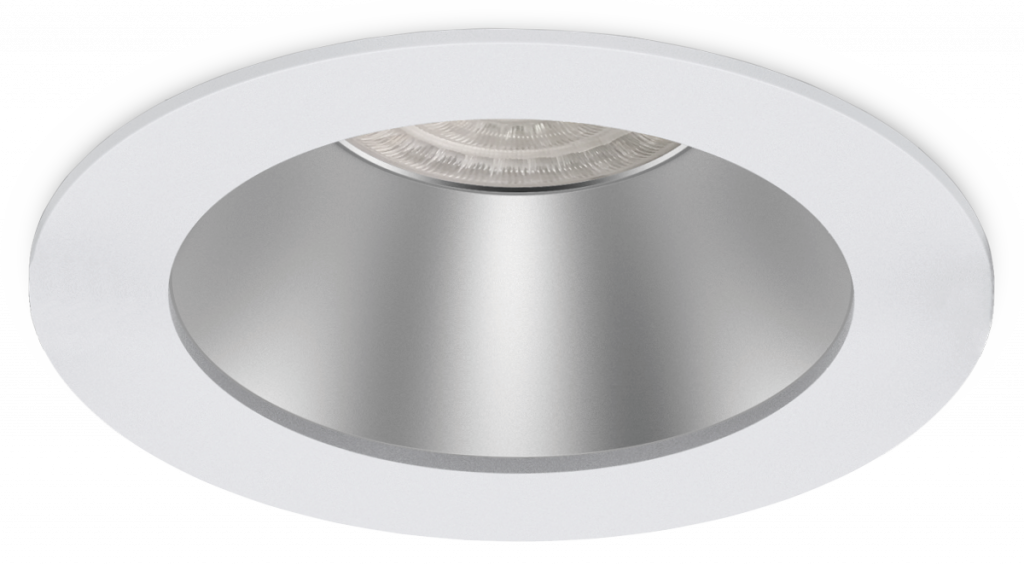

Napa Pro 8 inch Commercial Downlight CCT switch 13W-24W Silver reflector

Product Code: NAPP8IN24-SLV
  • Switchable wattage and CCT (3000/4000/5700K)
  • Optional add-on emergency kits, available in standard and self-test
  • Optional plug-in emergency modules, available in standard, self-test and DALI
  • DALI, 0-10V and PUSH dimming alternate driver available

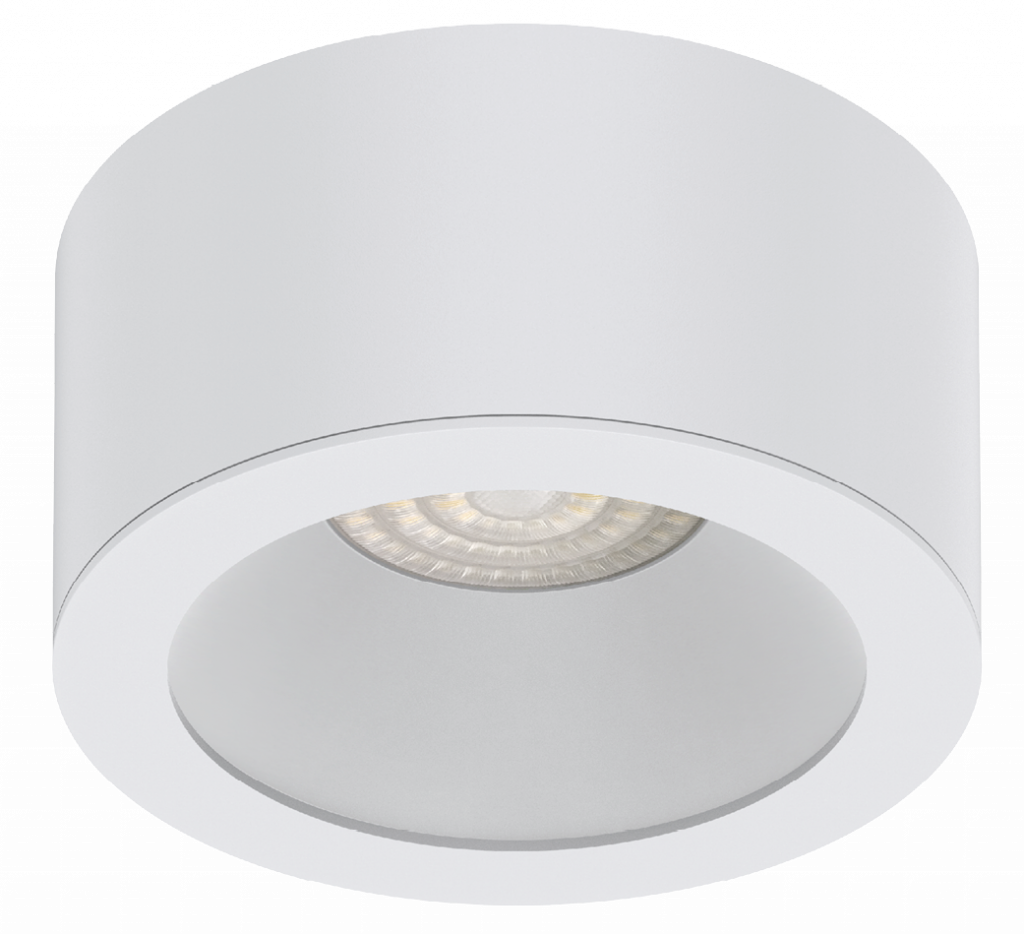

  • Surface-mount kits are available
  • Low glare, UGR<19
  • SDCM<3
Product Description

Napa Pro LED Commercial Downlight with a range of power settings and switchable colour temperature.

Product Description

Napa Pro LED Commercial Downlight with a range of power settings and switchable colour temperature.

Warranty Image
Warranty Image

General Specifications

Voltage
220-240Vac 50/60Hz
Ambient Temp (°C)
-20°C to 50°C
IK Rating
IK04
Install Area
Internal
Nominal Life
50,000
IP Rating
IP54
Max case temp (°C)
85
Class
D
CRI
82

Technical Summary

  • Beam Angle

    60

  • Cut-Out (mm)

    ∅205

  • Default Setting

    4000K at 24W

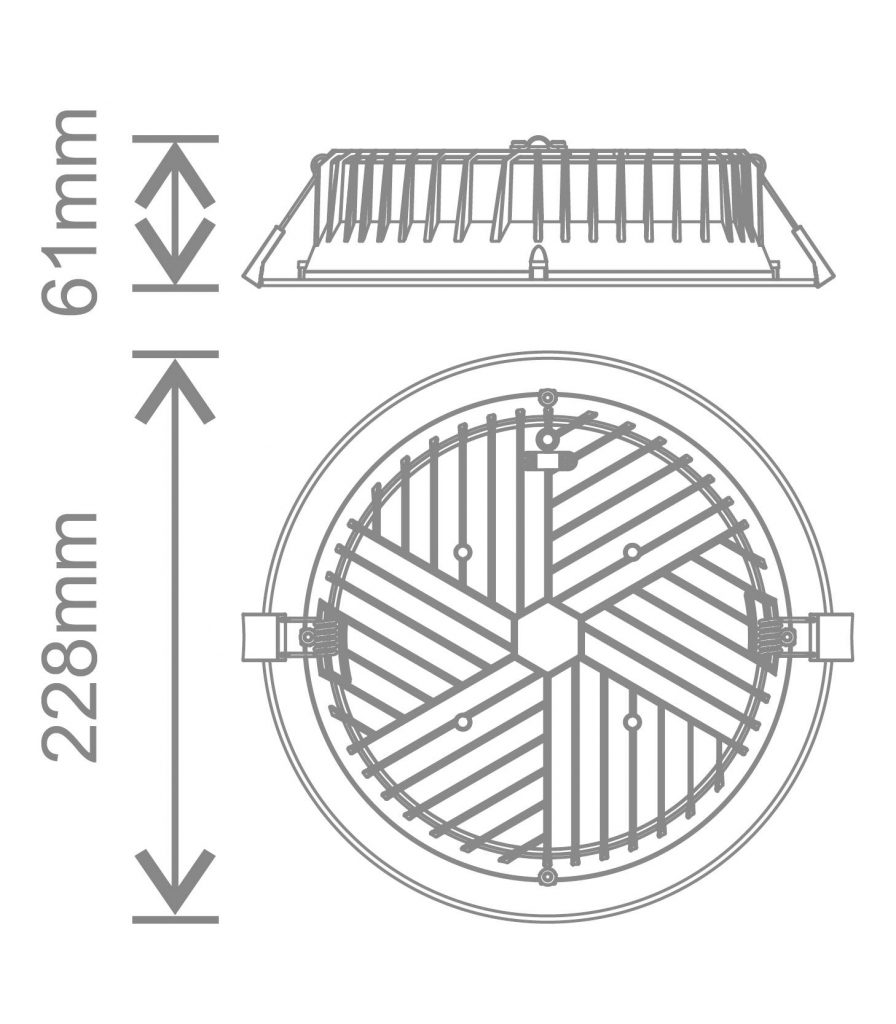

  • Dimensions (mm)

    61x∅228

  • Max input current

    23A/53uS

  • L80B10

    78,000

  • Surge protection

    500V

  • Settable Wattage

    13W, 16W, 18W, 20W, 24W

  • Settable CCT

    3000k, 4000k, 5700k

  • Efficiency (lm/W)

    135

  • Maintained Lumen

    320

  • Driver Maximum Power (W)

    25

  • Driver Output Voltage (Vdc)

    30-40

  • Dimmable

    N
